Código da Avanzada7: 0110960060003
Manufacturer SKU: GWN7600LR
- Producto descatalogado

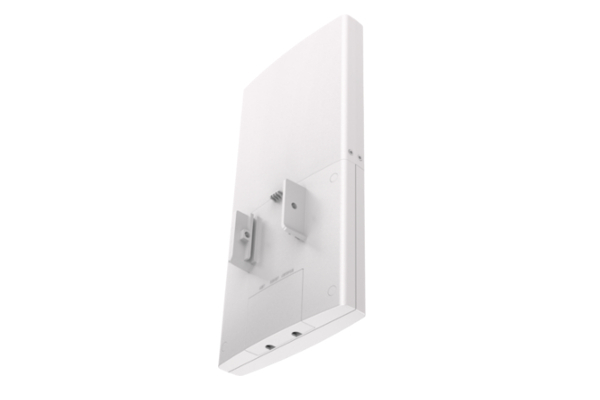

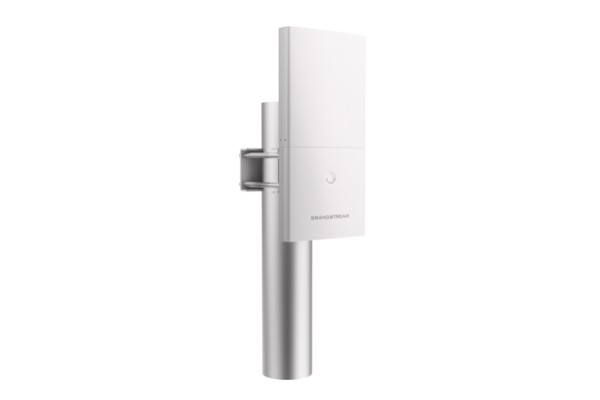

Punto de acceso Long Range Grandstream GWN7600LR
-
Grandstream GWN7600LR WiFi Access Point
This WiFi long range access point is designed to provide extended coverage support. Ideal for outdoor WiFi solutions thanks to its waterpoof casing and heat resistant technology. The GWN7600LR comes equipped with dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and extended WiFi coverage range of up to 300 meters.
To ensurey easy installation and management, the GWN7600LR uses a controller-less distributed network management design and an embedded controller within the product's web user interface.
Key features
- 1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beam-forming technology
- Suport 802.3af and 802.3at Power-over-Ethernet (PoE/PoE+)
- Support 450+ concurrent WiFi client devices
- Up to 300 meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applicaitons
- Anti-hacking secure book and critical data/control lockdown via digital signatures, unique security certificate / random default password per device
- Embedded controller allows GWN7600LR to auto-discover, auto-provision and manage up to 30 GWN7600LRs in a network
- 2 x 2.4 GHz, ganancia de 4dBi internal antenna | 2x5 GHz, gain 5dBi internal antenna
- Channel bandwidth: 2.4G: 20 and 40 MHz ; 5G: 20, 40 and 80 MHz
- +450 concurrent clients
- 1 tri-color LEDs for device tracking and status indication
- QoS 802.11e/WMM, VLAN, TOS
- 1 x reset pinhole
- 2 x autosensing 10/100/1000 Base-T Ethernet Ports
- Package content: Outdoor Long Range 802.11ac Wave-2 WiFi AP, Mounting Kits, Quick Start Guide
-
- Fuente de alimentacionNot included
- Gigabit1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Equipamiento2 internal antennas of 2.4 GHz, gain of 4dBi 2 internal antennas of 5 GHz, gain of 5dBi
- Caracteristicas AdicionalesI EEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps; 400 Mbps with 256-QAM on 2.4GHz IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- AlcanceUp to 300m
- EspecificacionesIPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
- Caracteristicas AdicionalesSupport 450+ concurrent WiFi client devices
-
- Datasheetdatasheet_gwn7600_LR_EN.pdf
