PRI (E1/T1)

TE436 (4E1 PCI profile)
Digital Telephony Cards
Quad Span  (1TE436F - Four span digital T1/E1/J1/PRI PCI card)

Digium's quad span digital interface cards support 96 (T1 / J1) or 120 (E1) connections to PSTN trunks over four spans (digital circuits). Built exclusively for use with Asterisk and Asterisk-based communications systems, the quad span digital cards provide the best value in digital connectivity.

Quad span digital cards are available in PCI form factors. All quad span models can be combined with an Octasic DSP-based echo cancellation module from Digium to provide effective hardware echo cancellation across all channels.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework.  Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty and are eligible for Digium's Exceptional Satisfaction Program (ESP) risk-free Quality Guarantee.

Applications

•     Connect four T1 or E1 trunks to an Asterisk-based PBX system
•     Add direct digital PSTN connectivity to your Asterisk application or solution
•     Ideal for call center applications, service bureaus and large phone systems

Specifications

•     Up to 24 (T1/J1) or 30 (E1) simultaneous calls per span
      (96 total T1/J1 and 120 total E1 per card)
•     Supports T1, E1 and J1 physical interface connections
•     Protocol support includes: ISDN PRI, Robbed-Bit, CAS
•     Industry standard RJ-45 port
•     Available in PCI and PCI Express form factors
•     4 ports
•     Asterisk and DAHDI supported (DAHDI 2.8 or later required for the TE435)

•     OPTIONAL: 128ms hardware echo cancellation module

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

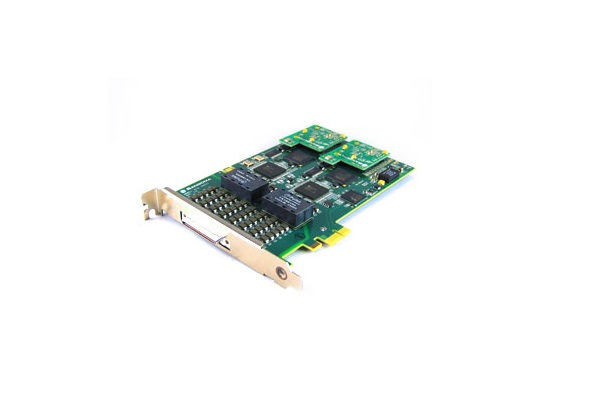

The A116 is part of Sangoma’s family of Advanced Flexible Telecommunications hardware product line – using high performance PCI Express interface, providing superior performance in critical systems all over the world. The A116 supports up to 32.8 Mbps of full duplex data throughput or 480 voice calls using 16 T1/E1/J1 spans.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A116, like all cards in Sangoma’s AFT family, is field-upgradable with our unique unbreakable firmware feature.

Choose the Sangoma A116E and A116DE, equipped with world class DSP hardware to achieve carrier-grade echo cancellation and voice quality enhancement functions for telecommunication systems.

Typical A116 Applications:

• Call Centers
• Value-Added Services
• Large IVR Systems
• Gateways and Soft Switches

The A116 is part of Sangoma’s family of Advanced Flexible Telecommunications hardware product line – using high performance PCI Express interface, providing superior performance in critical systems all over the world. The A116 supports up to 32.8 Mbps of full duplex data throughput or 480 voice calls using 16 T1/E1/J1 spans.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A116, like all cards in Sangoma’s AFT family, is field-upgradable with our unique unbreakable firmware feature.

Choose the Sangoma A116E and A116DE, equipped with world class DSP hardware to achieve carrier-grade echo cancellation and voice quality enhancement functions for telecommunication systems.

Typical A116 Applications:

• Call Centers
• Value-Added Services
• Large IVR Systems
• Gateways and Soft Switches

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

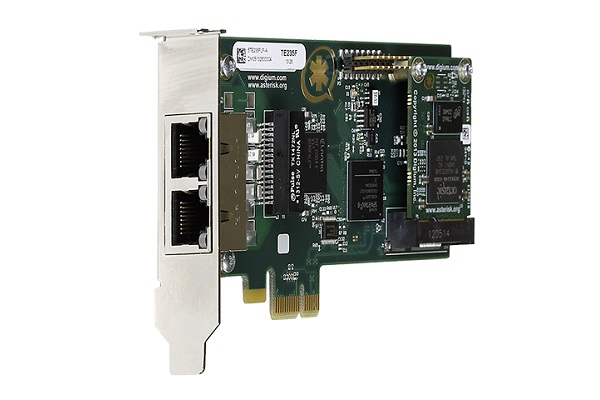

Digium TE235 (2E1 PCI Express-low profile)
Digital Telephony Cards
Dual Span (1TE235F - Two span digital T1/E1/J1/PRI PCI-Express x1 card)

Digium's dual span digital interface cards support 48 (T1 / J1) or 60 (E1) connections to PSTN trunks over two spans (digital circuits). Built exclusively for use with Asterisk and Asterisk-based communications systems, the dual span cards provide the best value in digital connectivity.

Dual span digital cards are available in PCI and PCI-Express form factors. All dual span models can be combined with an Octasic DSP-based echo cancellation module from Digium to provide effective hardware echo cancellation across all channels.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework.  Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty and are eligible for Digium's Exceptional Satisfaction Program (ESP) risk-free Quality Guarantee.

Applications

Specifications

• Up to 24 (T1/J1) or 30 (E1) simultaneous calls
• Supports T1, E1 and J1 physical interface connections
• Optional 128ms hardware echo cancellation module
• Protocol support includes: ISDN PRI, Robbed-Bit, CAS
• Industry standard RJ-45 port
• Available in PCI and PCI Express form factors
• 2 ports / 2 spans
• 5 year warranty
• Digium ESP risk-free guarantee
• Asterisk and DAHDI supported (DAHDI 2.8 or later required for the TE235)

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

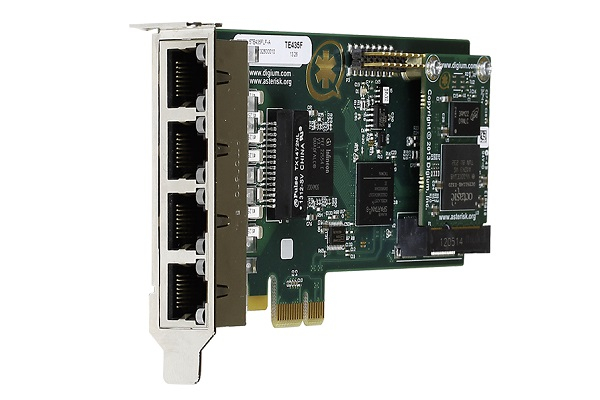

TE435 (4E1 PCI Express-low profile)
Digital Telephony Cards
Quad Span  (1TE435F - Four span digital T1/E1/J1/PRI PCI-Express x1 card)

Digium's quad span digital interface cards support 96 (T1 / J1) or 120 (E1) connections to PSTN trunks over four spans (digital circuits). Built exclusively for use with Asterisk and Asterisk-based communications systems, the quad span digital cards provide the best value in digital connectivity.

Quad span digital cards are available in PCI and PCI-Express form factors. All quad span models can be combined with an Octasic DSP-based echo cancellation module from Digium to provide effective hardware echo cancellation across all channels.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework.  Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty and are eligible for Digium's Exceptional Satisfaction Program (ESP) risk-free Quality Guarantee.

Note: The TE410P model supports a 3.3v PCI slot only - typically available on newer server motherboards and in 64-bit PCI bus architectures. The TE405P is for use only with a 5.0 volt PCI slot.

Applications

•     Connect four T1 or E1 trunks to an Asterisk-based PBX system
•     Add direct digital PSTN connectivity to your Asterisk application or solution
•     Ideal for call center applications, service bureaus and large phone systems

Specifications

•     Up to 24 (T1/J1) or 30 (E1) simultaneous calls per span (96 total T1/J1 and 120 total E1 per card)
•     Supports T1, E1 and J1 physical interface connections
•     Optional 128ms hardware echo cancellation module
•     Protocol support includes: ISDN PRI, Robbed-Bit, CAS
•     Industry standard RJ-45 port
•     Available in PCI and PCI Express form factors
•     4 ports
•     Asterisk and DAHDI supported (DAHDI 2.8 or later required for the TE435)
•     Switchvox supported (Switchvox 5.8.1 or later required for the TE435)

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

Digium TE235 (2E1 PCI Express-low profile)
Digital Telephony Cards
Dual Span (1TE235F - Two span digital T1/E1/J1/PRI PCI-Express x1 card)

Digium's dual span digital interface cards support 48 (T1 / J1) or 60 (E1) connections to PSTN trunks over two spans (digital circuits). Built exclusively for use with Asterisk and Asterisk-based communications systems, the dual span cards provide the best value in digital connectivity.

Dual span digital cards are available in PCI and PCI-Express form factors. All dual span models can be combined with an Octasic DSP-based echo cancellation module from Digium to provide effective hardware echo cancellation across all channels.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework.  Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty and are eligible for Digium's Exceptional Satisfaction Program (ESP) risk-free Quality Guarantee.

Applications

Specifications

• Up to 24 (T1/J1) or 30 (E1) simultaneous calls
• Supports T1, E1 and J1 physical interface connections
• Optional 128ms hardware echo cancellation module
• Protocol support includes: ISDN PRI, Robbed-Bit, CAS
• Industry standard RJ-45 port
• Available in PCI and PCI Express form factors
• 2 ports / 2 spans
• 5 year warranty
• Digium ESP risk-free guarantee
• Asterisk and DAHDI supported (DAHDI 2.8 or later required for the TE235)

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

Digium announces the release of a new product that will revolutionize T1/E1 communications around the world. Our new card, TE405P, can be a quad E1 or T1 selectable per card or per port. Now you can do both signaling formats in a single card. Also, with our new bus mastering design, there are significant performance improvements over older designs. We strive to make our hardware backward compatible with existing Asterisk applications, so this card is a drop-in replacement for legacy quad cards. The TE405P has been approved for use in Australia, Europe, and the United States.

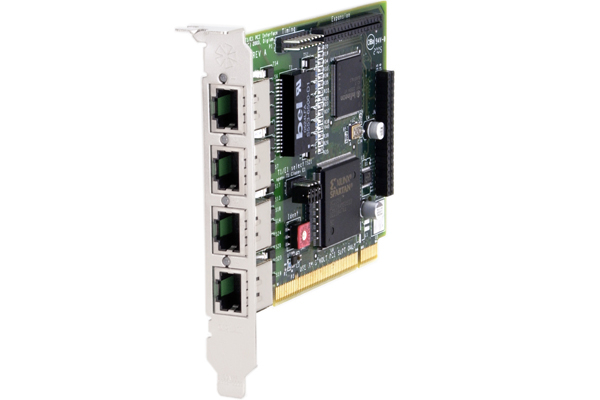

The TE405P supports a 5v PCI slot only - typically available on newer motherboards and in 64-bit PCI bus architectures. The TE410P supports a 3.3v PCI slot only.

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

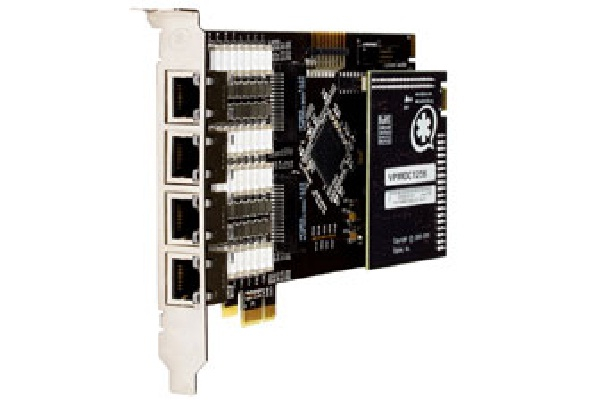

Digium TE820F (8PRI) PCI express

Digium octal span digital cards are high-performance, cost effective digital telephony interface devices with the power to seamlessly interconnects traditional telephony systems with Voice over IP technologies.

• 8 T1 / E1 Spans
• Up to 240 concurrent calls per card
• Optional hardware echo cancellation module
• PCI Express form factor

Digium’s TE820 Octal-Span digital card is built exclusively for high-density Asterisk® applications that require high-performance, cost effective digital connectivity. The TE820 includes eight independently software-selectable digital telephony interfaces, supporting up to 192 channels (in T1/J1 mode) or 240 channels (in E1 mode) — the highest single-card port density available for use with Asterisk. The TE820 seamlessly interconnects traditional telephony systems with Voice over IP (VoIP) technologies at the lowest per-port price on the market today.

The TE820 card supports industry standard telephony protocols, including multiple variants of Primary Rate ISDN. Each span can be configured as either CPE or network for optimal flexibility. The optional VPMOCT256 hardware echo cancellation module, based on the industry-leading Octasic chipset, offloads the task of echo cancellation from the CPU, increasing overall system performance and call quality.

The TE820 card has been designed to be fully compatible with existing software applications and is fully integrated with Digium’s Asterisk software. The open source drivers for Digium cards support an application programming interface (API) for custom application development. The combination of Digium hardware and Asterisk software provides a cost effective platform for building numerous communications solutions, from PBX system and VoIP gateways to call centers and complete unified communications suites. Digium solutions are paving the way for a new generation of worldwide communications.

As placas Digium da série TE são de alto desempenho e custo efetivo, com interfaces telefônicas digitais que suportam os ambientes T e E. Os ambientes são seleccionáveis em uma base por cartão ou por porta. Esta característica permite a tradução da sinalização entre os equipamentos T1 e E1, e permite conectar bancos de canais econômicos T1 com circuitos E1.

Às vezes, pode acontecer que o seu sistema de comunicações Ip seja ecoado, isso pode acontecer como resultado dos tempos de espera que um sistema VoIP geralmente tem, ao contrário de um sistema analógico. Como resultado, sua conversa pode sofrer um eco.

Embora muitos dispositivos já incorporem o cancelador de eco, a Digium oferece o hardware de cancelamento de eco de alto desempenho da Digium (HPEC). O hardware de cancelamento de eco também é vantajoso ao lidar com grandes volumes de chamadas ou um grande número de canais que, de outra forma, sobrecarregariam a CPU, o que resultaria em baixa qualidade potencial de áudio. Aqui estão alguns de seus recursos:

1. Octasic baseado em DSP (todos os módulos)
2. 128 ms (1024 taps) de cancelamento de eco em todos os canais
3. G.168 de Qualidade do número certificado de AT & T que está em conformidade com o algoritmo
4. Processador Dinâmico Não-Linear
5. Noise Comfort Generator
6. Pesquisa automática de linhas
7. Cancelar múltiplas reflexões
8. Dupla detecção de diálogos

Os Gateways Digium VoIP oferecem o melhor valor agregado para a conexão de telefonia tradicional (T1/E1/PRI) para IP (SIP).

O software de gateway é baseado no Asterisk é gerenciado por meio de uma interface gráfica do usuário (GUI), que permite fácil navegação e configuração. Eles têm um design integrado de economia de energia com um processador de sinal digital (DSP) altamente eficiente, permitindo excelente manuseio de todas as operações relacionadas à mídia.

Sangoma A101 1E1 PCI
(A101)

The Sangoma A101 card is a single port T1/E1/J1 card to Voice and Data. Like all cards in the Sangoma Advanced Flexible Telecommunications product line, the Sangoma A101 is equipped with "crash proof", field upgradeable firmware.

Technical Specifications

• One T1/E1 port with optimum PCI interface for high performance voice and data applications
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Diagnostic Tools: WANPIPEMON, SNMP, system logs

Warranty:  Lifetime warranty on parts and labour.

Production Quality: ISO 9002

Sangoma A101 1E1 PCI Express (A101E)

The Sangoma A101 card is a single port T1/E1/J1 card to Voice and Data. Like all cards in the Sangoma Advanced Flexible Telecommunications product line, the Sangoma A101 is equipped with "crash proof", field upgradeable firmware.

Technical Specifications

• One T1/E1 port with optimum PCI-Express interface for high performance voice and data applications
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A101DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power For PCI Express: 2.5 W (0.76 A @ 3.3 V) Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Diagnostic Tools: WANPIPEMON, SNMP, system logs

Warrant: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

Sangoma A101 1E1 PCI + Echo Cancel (A101DE)

The Sangoma A101 card is a single port T1/E1/J1 card to Voice and Data. Like all cards in the Sangoma Advanced Flexible Telecommunications product line, the Sangoma A101 is equipped with "crash proof", field upgradeable firmware.

Technical Specifications

• One T1/E1 port with optimum PCI interface for high performance voice and data applications
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A101DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power For PCI Express: 2.5 W (0.76 A @ 3.3 V) Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Diagnostic Tools: WANPIPEMON, SNMP, system logs

Warrant: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

Sangoma A101 1E1 PCI Express + Echo Cancel (A101DE)

The Sangoma A101 card is a single port T1/E1/J1 card to Voice and Data. Like all cards in the Sangoma Advanced Flexible Telecommunications product line, the Sangoma A101 is equipped with "crash proof", field upgradeable firmware.

Technical Specifications

• One T1/E1 port with optimum PCI-Express interface for high performance voice and data applications
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A101DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power For PCI Express: 2.5 W (0.76 A @ 3.3 V) Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Diagnostic Tools: WANPIPEMON, SNMP, system logs

Warrant: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A102 Dual Voice and Data Board
Two-Port T1/E1/J1

The Sangoma A102 Card: Two ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A102 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A102 supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines.

Technical Specifications

• Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A102E and A102DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A102 Dual Voice and Data Board
Two-Port T1/E1/J1

The Sangoma A102 Card: Two ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A102 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A102 supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines.

Technical Specifications

• Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A102E and A102DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A102 Dual Voice and Data Board
Two-Port T1/E1/J1 (PCI & Eco Cancel DSP)

The Sangoma A102 Card: Two ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A102 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A102 supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines.

Technical Specifications

• Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A102E and A102DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Optional DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A102 Dual Voice and Data Board
Two-Port T1/E1/J1

The Sangoma A102 Card: Two ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A102 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A102 supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines.

Technical Specifications

• Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A102E and A102DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Optional DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A104 Dual Voice and Data Board
Four-Port T1/E1/J1

The Sangoma A104 Card: Four ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A104 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A104 supports up to 120 voice calls and full-duplex data throughput over 4 T1, E1, or J1 lines.

Technical Specifications

• Four T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A104E and A104DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A104 Dual Voice and Data Board
Four-Port T1/E1/J1

The Sangoma A104 Card: Four ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A104 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A104 supports up to 120 voice calls and full-duplex data throughput over 4 T1, E1, or J1 lines.

Technical Specifications

• Four T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A104E and A104DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A104 Dual Voice and Data Board
Four-Port T1/E1/J1

The Sangoma A104 Card: Four ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A104 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A104 supports up to 120 voice calls and full-duplex data throughput over 4 T1, E1, or J1 lines.

Technical Specifications

• Four T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A104E and A104DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Optional DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

A104 Dual Voice and Data Board
Four-Port T1/E1/J1

The Sangoma A104 Card: Four ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A104 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A104 supports up to 120 voice calls and full-duplex data throughput over 4 T1, E1, or J1 lines.

Technical Specifications

• Four T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
• A104E and A104DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Optional DSP Hardware Echo Canceller Daughterboard

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002

Sangoma A108 Octal Voice and Data Board
Eight-Port T1/E1/J1
A108

The A108 is part of Sangoma's family of Advanced Flexible Telecommunications hardware product line—it uses the same high-performance PCI interface that is providing superior performance in critical systems all over the world.

The A108 supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A108, like all cards in Sangoma's AFT family, is field upgradable with crash-proof firmware.

Choose the Sangoma A108D and A108DE, equiped with world class DSP hardware to achieve carrier-grade Echo Cancellation and Voice Quality Enhancement functions for your telephone systems.

Technical Specifications

• Eight T1/E1 ports with optimum PCI interface for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports so both T1 and E1 are supported simultaneously
• Support for Asterisk®, Yate®, CallWeaver® and FreeSwitch® PBX/IVR Projects, as well as other open source and proprietary PBX, Switch, IVR, or VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 port-splitter cables and short 2U mounting clips for installation in 2U rack-mount servers
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A108E and A108DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 7.5 W (1.5 A @ 5 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Sangoma A108 Octal Voice and Data Board
Eight-Port T1/E1/J1
A108E

The A108 is part of Sangoma's family of Advanced Flexible Telecommunications hardware product line—it uses the same high-performance PCI Express interface that is providing superior performance in critical systems all over the world.

The A108 supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A108, like all cards in Sangoma's AFT family, is field upgradable with crash-proof firmware.

Choose the Sangoma A108D and A108DE, equiped with world class DSP hardware to achieve carrier-grade Echo Cancellation and Voice Quality Enhancement functions for your telephone systems.

Technical Specifications

• Eight T1/E1 ports with optimum PCI–Express interface for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports so both T1 and E1 are supported simultaneously
• Support for Asterisk®, Yate®, CallWeaver® and FreeSwitch® PBX/IVR Projects, as well as other open source and proprietary PBX, Switch, IVR, or VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 port-splitter cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A108E and A108DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI Express: 5.5 W (1.67 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Sangoma A108 Octal Voice and Data Board
Eight-Port T1/E1/J1
A108D

The A108 is part of Sangoma's family of Advanced Flexible Telecommunications hardware product line—it uses the same high-performance PCI interface that is providing superior performance in critical systems all over the world.

The A108 supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A108, like all cards in Sangoma's AFT family, is field upgradable with crash-proof firmware.

Choose the Sangoma A108D and A108DE, equiped with world class DSP hardware to achieve carrier-grade Echo Cancellation and Voice Quality Enhancement functions for your telephone systems.

Technical Specifications

• Eight T1/E1 ports with optimum PCI interface for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports so both T1 and E1 are supported simultaneously
• Support for Asterisk®, Yate®, CallWeaver® and FreeSwitch® PBX/IVR Projects, as well as other open source and proprietary PBX, Switch, IVR, or VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 port-splitter cables and short 2U mounting clips for installation in 2U rack-mount servers
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A108E and A108DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI: 7.5 W (1.5 A @ 5 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

DSP Hardware Echo Canceller Daughterboard (included)

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Sangoma A108 Octal Voice and Data Board
Eight-Port T1/E1/J1
A108DE

The A108 is part of Sangoma's family of Advanced Flexible Telecommunications hardware product line—it uses the same high-performance PCI Express interface that is providing superior performance in critical systems all over the world.

The A108 supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines.

With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A108, like all cards in Sangoma's AFT family, is field upgradable with crash-proof firmware.

Choose the Sangoma A108D and A108DE, equiped with world class DSP hardware to achieve carrier-grade Echo Cancellation and Voice Quality Enhancement functions for your telephone systems.

Technical Specifications

• Eight T1/E1 ports with optimum PCI–Express interface for high performance voice and data applications
• Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports so both T1 and E1 are supported simultaneously
• Support for Asterisk®, Yate®, CallWeaver® and FreeSwitch® PBX/IVR Projects, as well as other open source and proprietary PBX, Switch, IVR, or VoIP gateway applications
• All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 port-splitter cables and short 2U mounting clips for installation in 2U rack-mount servers
• Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
• Line decoding: HDB3, AMI, B8ZS
• Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
• A108E and A108DE PCI Express: 1 Lane PCI Express bus
• Maximum operational power for PCI Express: 5.5 W (1.67 A @ 3.3 V)
• Temperature range: 0 – 50 °C
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
• Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
• T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
• Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
• Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
• WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
• WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25

DSP Hardware Echo Canceller Daughterboard (included)

• G.168–2002 echo cancellation in hardware
• 1024 taps/128 ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
• Does not increase the physical size of the card, and no additional slot is required

Operating Systems

• Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
• Linux (all versions, releases and distributions from 1.0 up)

Splitter-t1-e1-sangoma-a108 (cable)
