Gateway Technicolor triple-play TG789vn V3

Descrição
Dados técnicos
Descargas

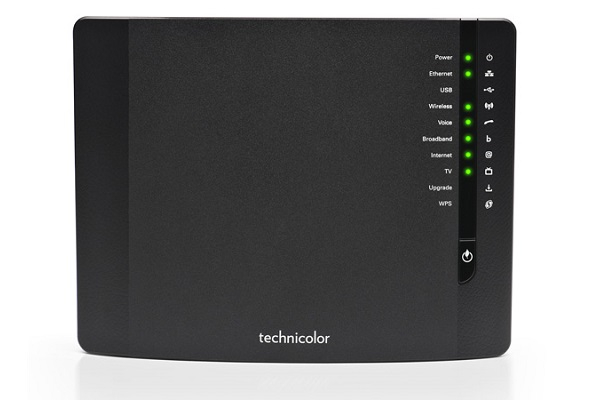

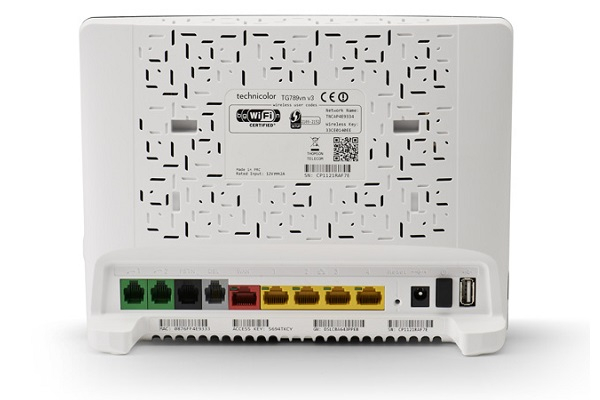

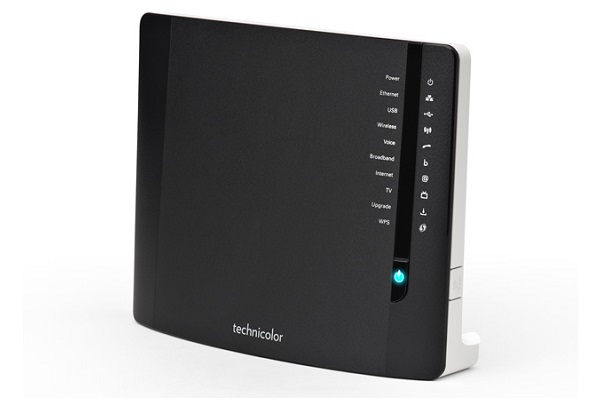

Technicolor TG789vn v3

The Technicolor TG789vn v3 is a unique future-proof triple-play service gateway allowing VDSL2 connectivity while providing Voice over IP functions for residential users.

A dedicated Gigabit Ethernet WAN port and WAN Port Auto-Sensing make the Technicolor TG789vn v3 also the ideal service gateway for deployment in mixed DSL and fiber-based access networks.

The Technicolor TG789vn v3 offers next to four Fast Ethernet LAN ports, a IEEE 802.11b/g/n wireless LAN Access Point. Moreover, it acts like a central hub for distribution of all content from any device to any device in the home. You can stream music, data, pictures and video from your gateway to devices connected to your wired or wireless home network.

The Technicolor TG789vn v3 is easily manageable thanks to its best-in-class TR-069 interoperability.

Features:
- Integrated VDSL2 modem
- 1 Gigabit Ethernet WAN port
- 4 Fast Ethernet ports to connect multiple devices, such as PCs, laptops, set top boxes...
- Wireless networking on-board: 802.11b/g/n (2.4 GHz)
- Wi-Fi Protected Setup
- 1 FXO analogue port
- 2 FXS ports
- Media sharing: UPnP A/V and DLNA
- 2 USB 2.0 masters for hard disk, printer, 3G adapter ...
- Remotely manageable: TR-069, TR-098, TR-104, TR-111
- Built-in stateful firewall, parental control
- IPv6 ready
- Puertos WirelessWi-Fi IEEE 802.11b/g/n access point
- Puertos FXS2 FXS POTS ports
- Codec para FAXT.38
- Puertos Ethernet4-port autosensing 10/100Base-T auto-MDI/ MDI-X Ethernet switch
- Puerto WAN1 Ethernet WAN 10/100 Base-T
- Codec de audioCodecs: G.711, G.726, G.729, Wideband (G.722), T.38
- Puertos DLS1 RJ11 DSL line port | ADSL2+ compliance
- USB2 USB 2.0 masters | Printer sharing | Content sharing (Samba/FAT) | USB 3G adapter support
- Caracteristicas AdicionalesTR-069 CPE WAN Management Protocol | TR-104 voice service provisioning | TR-098 Internet Gateway Device Management | TR-111 home network device management | TR-140 storage service provisioning | TR-064 LAN side configuration |
- Protocolos VoIPSignalling: SIP, MGCP (optional), H.323 (optional)
- Puertos FXO1 Puerto FXO para línea analógica externa
- Release Notestechnicolor_mediaaccess-service-gateway.pdf
- Release Notestg789(i)vnv3_dslcba643pp-dslcba643pi.pdf
- Datasheetds_technicolor_tg789vn-v3.pdf
