Snom PA-1 para megafonÃa
-
Snom PA1: Public Address System
Snom PA1 is an IP paging device with useful functions. It can be used at office floors, reception areas, waiting rooms in announcements in airports, train and bus stations and waiting lounges. You can use too for monitoring of security-sensitive environments.

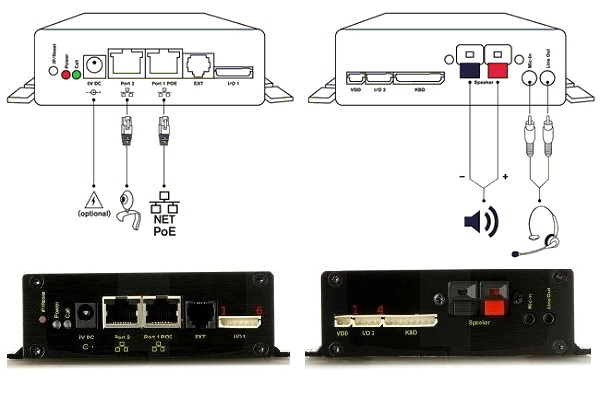

You can use Snom PA1 with a loudspeaker as a simple PA system or with a microphone as a two-way intercom. The Snom PA1 can be used in both small and large applications due to the inclusion of a 4-watt amplifier for single speaker projects. Larger projects can utilize multiple speakers driven by external high wattage amplifier(s).Applications for the Snom PA1 include:
- Large PA systems driven by external amplifier(s).
- Small PA systems driven by internal PA1 amplifier (eg. door answering system), and internal relay to open door(s).
- Phone ringer amplifier with ability to drive strobe light as visual indicator.
- Multi-cast relay up to 4 SIP identities to four multi-cast IP addresses.
Quick Summary
- SIP communication + Multicast
- Web interface menu for central configuration and maintenance
- Key for announcement of IP address and for resetting
- PoE Device: Voltage feed via network PoE IEEE 802.3af, class 3
- Fast Ethernet: 2 x IEEE 802.3, 10/100 Mbps switch
- Remote volume configuration
- 2 LED status indicators
- 3.5 mm jacks for headphone and microphone (for maintenance)
- 4 output pins controlled via web interface or DTMF
- Broadcasting announcements over 8 ohm speakers
- 4 Watt power amplifier, class D (loudspeaker not included)
- Robust housing for wall-mountWorks from your Snom handset
-
- Relay number4 freely programmable output pins, configuration via web interface or DTMF
- Protocolos VoIPSIP or multicast support
- Power over Ethernet (PoE)PoE IEEE 802.3af, class 3
- Numero de cuentas SIP4 SIP Accounts
- Puertos Ethernet2 port 10/100Mb Ethernet switch
- Caracteristicas Adicionales2 brackets for wall mounting (pre-assembled) + 4 screws (Ø 8 mm, length 16 mm) + 4 expansion anc hors for wall mounting.
- Entorno de AplicacionIndustrial, small offices, airports, train stations, schools and shopping centers.
-
- Datasheetdata_snom_PA1_en.pdf
- Quick start guideqsg_snom_DP1.pdf
- Quick start guideqsg_snomPA1_long.pdf
- Datasheetdata_snom_PA1_es.pdf
- Guia de AdministracionUM_PA1_en.pdf
- Documentacion Desarrolloqsg_snom_DP1.pdf
