Sangoma Netborder SS7 Media Gateway - 4 E1/T1

  • Imagen 1: Sangoma Netborder SS7 Media Gateway - 4 E1/T1
  • Imagen 2: Sangoma Netborder SS7 Media Gateway - 4 E1/T1
  • Imagen 3: Sangoma Netborder SS7 Media Gateway - 4 E1/T1
  • Imagen 1: Sangoma Netborder SS7 Media Gateway - 4 E1/T1
  • Imagen 2: Sangoma Netborder SS7 Media Gateway - 4 E1/T1
  • Imagen 3: Sangoma Netborder SS7 Media Gateway - 4 E1/T1

Código da Avanzada7: 0040410050001

Manufacturer SKU: SS7G-LI04

Producto descatalogado

  • Sangoma Netborder SS7 Media Gateway License up to 4E1/T1

    SS7 to VoIP Media Gateway Software

    Sangoma’s NetBorder SS7 to VoIP Gateway software provides full-featured, carrier-class VoIP deployments while leveraging the flexibility of standard computing platforms and operating systems.  The software version of this product provides maximum flexibility for developing new or enhanced gateway products.

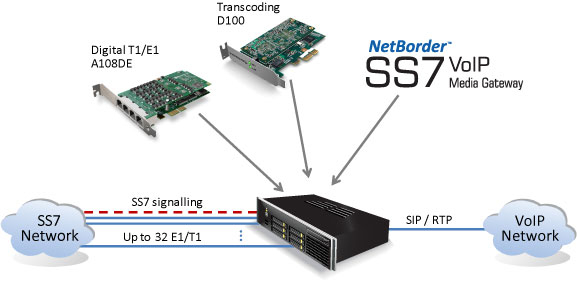

    The NetBorder SS7 to VoIP Gateway allows telecom service providers to introduce VoIP in their networks in the most cost-effective and flexible way. This is simply accomplished by combining the software with Sangoma’s award-winning digital T1/E1 and transcoding boards on standard computing servers. The combination works as a full-fledged SS7 to VoIP gateway, with the flexibility and expandability of software.

    VoIP  to PSTN SS7/TDM network interworking platform

    • License supports up to 4 (T1/E1).
    • Connect calls between PSTN and VoIP networks
    • Integrated media gateway, signalling gateway and media gateway controller
    • Compatible with distributed architecture
    • Scalable, carrier-grade
    • Highly interoperable with other system types
    • Supports a wide range of codecs for VoIP, PSTN and wireless (requires Sangoma transcoding hardware)
    • Supports a wide range of SS7 and VoIP signalling protocols
    • Sophisticated call routing
    • Easily integrates with Asterisk® and FreeSWITCH®

    Flexibility

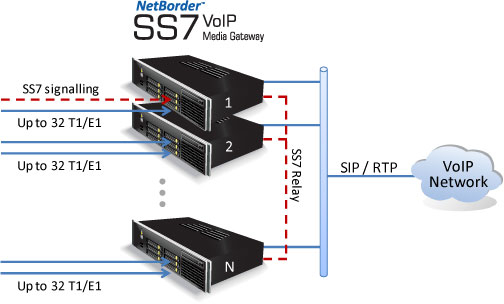

    The solution supports up to 32 T1/E1 per server. For larger installations (up to 256 T1/E1), distribution across multiple servers provide maximum flexibility to support growth.
    • Protocolos VoIPSIP | H.323 version 4
    • Puertos PRI1 PRI E1 Euro-ISDN/ ISO QSIG/ VN4/ QSIG Feature Transparency (H.323)/ CAS R2MFC | Primary Rate ISDN (User configurable NT/TE) + 1 E1 Port Bypass relays terminating onto RJ45 for resiliency
    • Datos TécnicosTranscoding support via Sangoma transcoding hardware (D100/D150/D500) • T.38 Fax Relay
    • Cancelador de eco HardwareEcho Cancellation: • G.168-2002 with 128ms tail
    • Codec de audioAudio codecs: G.711 (a-law/µ-law) (64 kbps) G.729a (8 kbps) G.723.1 (5.3/6.4 kbps) Clearmode
    • Caracteristicas Adicionales• T.38 Fax Relay Echo Cancellation: • G.168-2002 with 128ms tail DTMF Detection and Generation: • RFC2833 Tone relay • In-band • DTMF detection and generation
    • Formato del sistemaOperating System Support: 32-bit and 64-bit Linux; CentOS recommended Software delivered as binary package or ISO image. | Minimum Server Requirements: Dual-core CPU with 2GB of RAM. (Varies with size of deployment. Consult Sangoma Sales for specifics).
