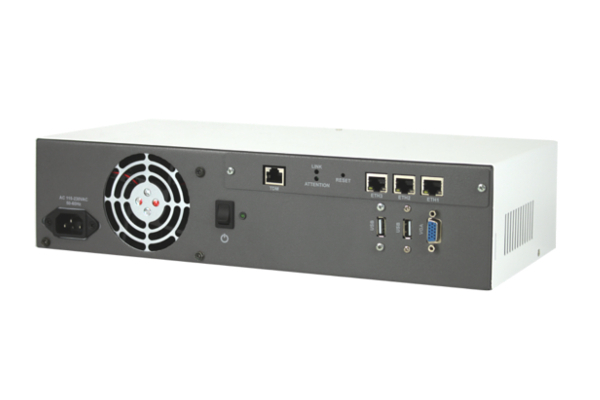

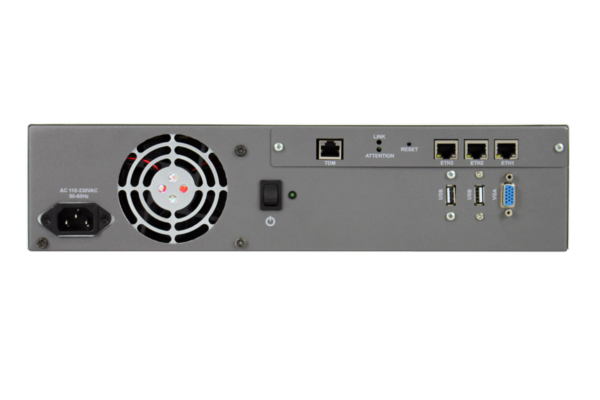

Khomp UMG Server 104

Gateway Khomp UMG Server 104

UMG Server 104 is a device designed for integrators who want to develop a centralized solution based on E1/T1 and SIP calls for their final client. This device is "all in one": server + gateway, to load your software application for PABX, call center and dialer, among others, with a motherboard for the installation of any platform based on Windows, Linux or FreeBSD.

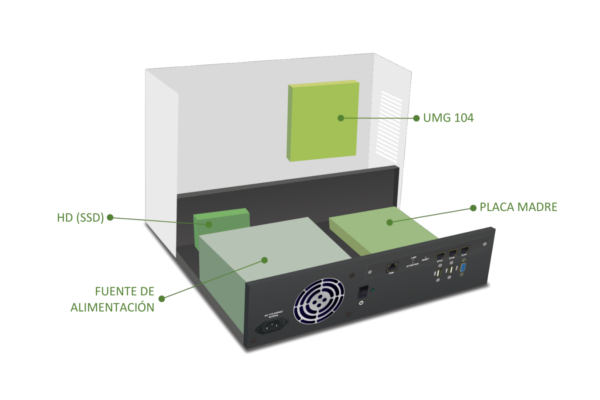

The UMG Server 104 can be composed with various storage options, allied to the telephony E1/T1 interface, a RAM module of up to 8GB and two p orts of SATA type for connection with SSD or 2.5'' HD with storage for up to 1TB each one.


Key features

• It does not requiere the use of an external server that incorporates the functions in a single device.
• Use a source of energy
• 2 USB
• 1 VGA input for peripheral connection
• Placa madre IPX1800G2
• Processor Intel Celeron J1800 Dual Core 2.41 GHz 64 bits
• 2GB RAM
• 1 SSD 2.5 pulg. 16GB


Gateway features

• 1 E1/T1
• ISDN or R2 signling (R2 available only for E1)
• Compatibility with up to 10 SIP accounts
• 30 E1 channels and 30 VoIP channels with capacity for up to 30 simultaneous calls
• G.711 (A-law y u-law), G.729
• Compatibility with FAX in pass-trhough mode and T.38
• Compatibility and monitoring through SNMP
• Customizable CDR
• 3x Gigabit 10/100/1000 Base-T


Optional elements

• Expansion of RAM to 4 or 8 GB
• 2 modules for connection of up to 2 SSD of HD SATA 2.5'', with options of different capacities that can reach 1TB per module
