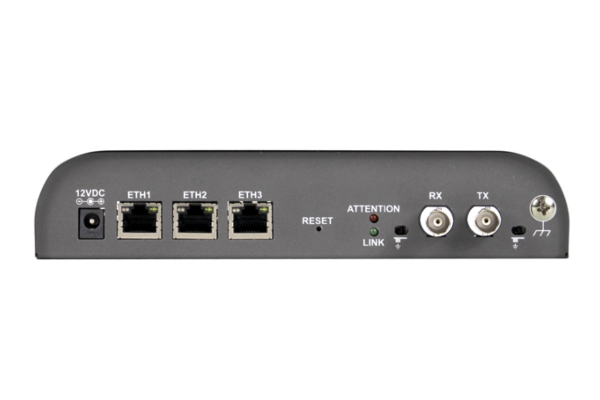

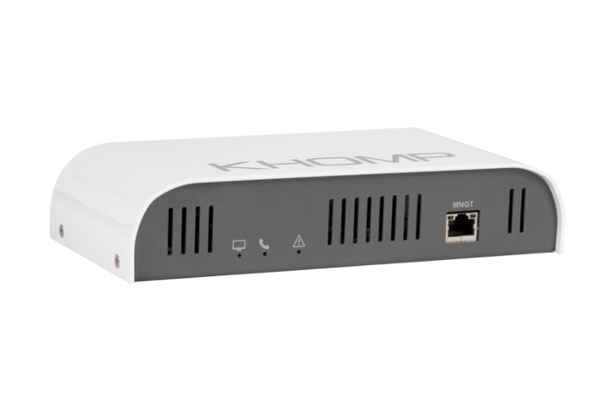

Gateway Khomp UMG 104 (RJ)

The Khomp UMG 104 gateway is an ideal device for small and medium businesses looking for a competitive investment team and high reliability.

The UMG 104 can be connected to 3 VoIP operators assigning each link to a particular region in this way reduce the costs with national and internacional calls at much lower values than the conventional rates. In addition, it can be applied to VoIP operators that work with the sale of minutes to professionalize services among many other options.

The UMG 104 has 30 E1 channels and 30 VoIP channels, with the capacity to operform up to 30 simultaneous calls. This UMG model has 4 Ethernet ports, an easy-to-use web interface, failover of routes and greater control of expenses thanks to the possibility of configuring the routing by prefixes and / or by the loyalty of operators.

UMG 104 is a compact system that can be divided into 3 basic parts:
- A CPU board
- A telephony module, responsible for accessing the E1/T1 interface
- 4 external 10/100/1000 Mbps network ports. One of them is dedicated to the administration and maintenance of the device and the network, and the other three of the connection with up to 3 VoIP operators.
Key features
- 3 Ethernet Giga ports for dedicated link with operators
- 1 Ethernet port Front Giga for administration
- 1 link E1 (30 channels)
- Up to 10 registers in different VoIP operators
- 30 VoIP channels
- Up to 10 registers in different VoIP operators
- Friendly web interface for configuration, monitoring and diagnosis
- Support for R2, ISDN and SIP signalign
- Compatibility with G.711(A-law y μ-law), G.729A and T.38 (fax)
- Compatibility with SNMP
- Cutomizable CDR ticketing
- Track monitoring (Keep Alive)
- Echo cancellation
- Puertos FXO0
- Puertos FXS0
- Puertos PRI30 E1/T1
- Puertos GSM0
- Puertos Ethernet4: 1 of them for administration and maintenance of the device and the network, the other three for connection with up to 3 VoIP operators
- Codecs SoportadosCompatible with G.711 (A-law and ?-law), G.729A and T.38 (fax)
- Caracteristicas AdicionalesUp to 10 registrations in different VoIP carriers
- Puertos PRI1 x E1/T1
- Numero de extensiones SIPCompatible with up to 10 SIP accounts
- Numero de llamadas simultaneasUp to 30 simultaneous calls
- Gigabit4 network ports 10/100/1000 Base-T
- Fuente de alimentacionInput: 100-240 V 560/60 Hz | Output: 12V / 2.5A
- Caracteristicas AdicionalesProtocols: SIP, SNMP, DNS, ICMP, IP, RTP, TCP, UDP, FTP, HTTP
- EspecificacionesRJ connector | Available another version with BNC connector
- Conectores E1: RJ45 | Gigabit network: network port 100/1000 Base-T | 12VCC Polarized Power Supply Connector
- DatasheetUMG-104-ES-Avanzada 7.pdf
