Media Gateways Digium G200

Dual Span Digital T1/E1/PRI to VoIP Gateway Appliance (Europe)

The G200 is a dual span T1/E1/PRI gateway that provides up to 60 concurrent calls of TDM-to-SIP, SIP-to-TDM or SIP-to-SIP media convergence. It includes integrated echo cancellation, a small footprint (1U, half-width, half-depth) and no failure-prone moving parts.
- 2 T1/E1/PRI Interface w/ RJ-45 connector
- 1 10/100/1000 Ethernet connection
- 48 (T1) or 60 (E1) concurrent calls
- Solid state appliance (no moving parts)
- Easy to navigate GUI
Built on a powerful combination of the Asterisk Open Source communications engine and a state-of- the-art embedded platform, Digium VoIP Gateways provide the best value for Asterisk connectivity.

The gateway software is based on the Asterisk communications engine and is managed through Digium’s intuitive point-and-click GUI interface, which allows for easy navigation and effortless setup. VoIP gateways feature a power-saving embedded design with a highly efficient digital signal processor (DSP) handling all media-related operations.

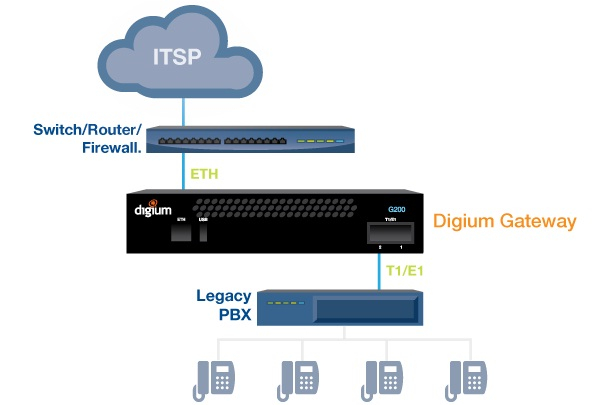

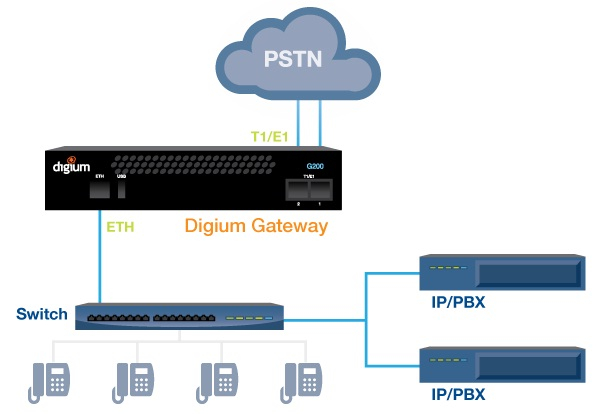

The G200 VoIP Gateway includes two software-selectable T1/E1/PRI interfaces and supports up to 60 concurrent calls. It is built to support TDM-to-SIP, SIP-to-TDM and SIP-to-SIP (transcoding) applications. In a TDM-to-SIP deployment the VoIP gateway significantly reduces operating costs by connecting a legacy business phone system with dynamic SIP trunking services. SIP-to-TDM deployments use the VoIP gateway to connect a modern SIP communications system with T1/E1/PRI service from legacy carriers.

Applications

Digium VoIP Gateways are flexible solutions that fit many communications applications. The applications listed below are the most widely used. These gateway appliances support a wide range of applications, due to the flexible configuration options and standards-based connectivity.
- Protocolos VoIPSIP (Support for multiple SIP endpoints)
- Puertos PRI2 = DUAL T1/E1/PRI (RJ45 connectors)
- Codec para FAXFax and Modem Support (T.38 and G.711)
- Puerto WANSingle 10/100/1000Base-T Ethernet connections
- Codec de audioAudio Codecs • G.711 (Coding Support for A-law and U-law) • G.722 • G.729 • GSM-FR • G.726
- Quick start guidegateway-quick-start-guide.pdf
- User manualgateway-manual.pdf
- Datasheetgateway-datasheet.pdf
