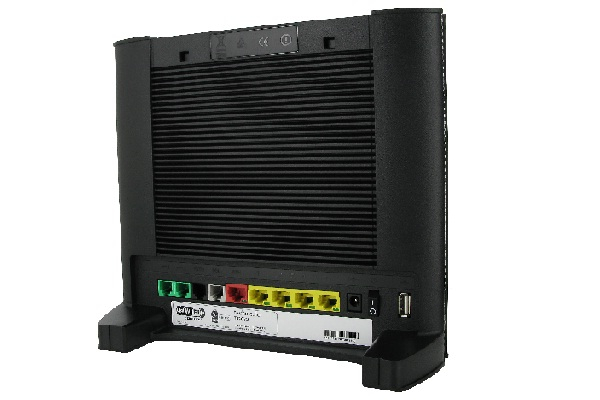

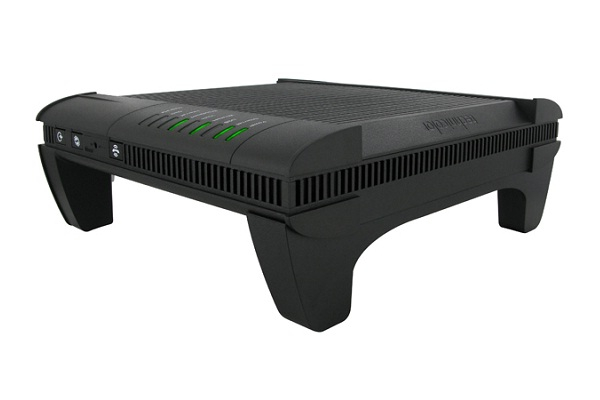

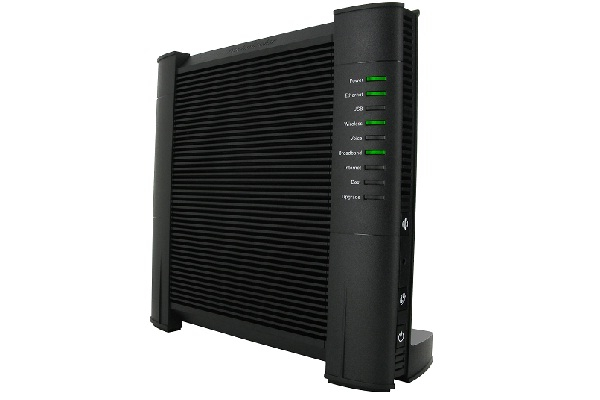

Technicolor TG672

The TG672 is a wireless VoIP router, with one RJ-11 WAN port, one 10/100/1000Base-T WAN port, one Gigabit Ethernet LAN port, 3 Fast Ethernet LAN ports, 1 FXO analogue port, 2 FXS ports for phone or fax and two USB ports. The router provides 3G back-up WAN connection via USB modem adapter.

The integrated access point complies with IEEE 802.11n standard, providing wireless transmission speeds of up to 300Mbps. It supports Multiple SSIDs and uses WMM (QoS) to prioritize the traffic over the network. A WPS button allows for easy wireless security configuration.

The router provides a variety of VoIP features, such as Caller ID, Echo Cancellation and 3-way conferencing.

The TG672 has a built-in SPI firewall that protects the network against hackers and Denial of Service (DoS) attacks.

The Technicolor TG672 is an Ultra BroadBand business gateway, designed for Corporate/SMEs and SOHOs and offers plenty of possibilities through a complete set of business features. The Technicolor TG672 is a one-box office solution for communicating to the outside world, offering security to the office, allowing to share resources (like printer, hard disk), functioning as a PABX, while being able to be managed by the operator. It also has integrated DECT: DECT handsets supported by the gateway are the Technicolor TH58 and TH52.

Flexible Solution:

The Technicolor TG672 is an Ultra BroadBand business gateway, designed for corporate/SMEs and SOHOs and offers plenty of possibilities through a complete set of business features. The Technicolor TG672 is a one-box office solution for communicating to the outside world, offering security to the office, allowing to share resources (like printer, hard disk), functioning as a PABX, while being able to be managed by the operator. It also has integrated DECT: DECT handsets supported by the gateway are the Technicolor TH58 and TH52.

Features at a Glance
? Universal Ultra Broadband business gateway (supporting as well ADSL2+, VDSL2+, Fiber networks via Gigabit Ethernet Uplink, 3G via USB dongle)
? Embedded DECT: CAT-iq ready
? Secure communication device, with integrated IPSec client (compatible with major VPN servers), corporate firewall and content filtering.
? Dynamic routing support, including RIP, BGP and OSPF
? 3G back-up
? Extensive operator management capabilities (SNMPv3, TACACS+, Syslog)
? Standard built-in access point based on 802.11n
? Easy install / use, embedded firewall, QoS, TR-69
? Direct connection of printer, hard disk, ... via USB port for office sharing
? SOHO/SME PABX functionality (with integrated SIP server/ Back to Back User Agent)
? Non-Service-Affecting SW upgrades, through dual bank memory configuration
- Protocolos VoIPSIP, MGCP (optional), H.323 (optional)
- Puertos FXO1 PSTN (Incoming call detection)
- Puertos FXS2
- Puerto LAN4 (1 Ethernet 10/100/1000 Base-T port + 3-port autosensing 10/100Base-T auto-MDI/MDI-X Ethernet switch)
- Puerto WAN1 RJ11 (DSL line port ADSL2+ or VDSL2) + 1 Ethernet WAN 10/100/1000 Base-T port + 1 Full FXO port
- Codec de audioG.711, G.723, G.726, G.729, Wideband (G.722), T.38
- Puertos DLS1 Multi Mode (ADSL2+, VDSL2)
- Puertos Wireless802.11b/g/n access point
- VPNSupport VPNs based on MPLS/IP and on VPLS/VLAN technology.
- USB2 x USB 2.0 master
- Caracteristicas AdicionalesIntegrado SIP Server con capacidades de PBX (Call waiting, transferring, 3-way conference, missed call e-mail, MWI, Click to dial, internal calling,...)
- Puertos UMTSNO (Disponible mediante Dongle USB con 3G)
- Balanceo de CargaLine 3G Back-up
- OthersBusinessBrochureFinal.pdf
- DatasheetDS_Technicolor_TG672.pdf
- User manualUserguideTG672_E-DOC-CTC-20100728-0008_v2.0_public.pdf
- Firmware672R843U.zip
