Transformar linhas diferentes (RTB / analógico, BRI / ISDN, GSM) para SIP
BeroNet offers the berofix card series, a higlhly flexible and powerful hardware solution to integrate ISDN, (BRI/PRI) , analoge (FXO/FXS) and GSM Lines to any SIP based VoIP system. berofix is not a typical SIP Media Gateway neither a standard PCI/PCIe card, where you need proprietary drivers, so we call it a "Gateway Card". Because of the special Hardware design the operating system is detecting berofix as a classical Network card. All necessary drives to work with the berofix should in general automatically loaded by the OS. Thus berofix is OS indepedent and can be used for instance on Linux/Unix Windows and MAC environments (currently tested under Linux and Windows). Berofix has a modular concept and supports the following hardware DSP based Voice Proccessing
Features:
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
- DTMF detection and generation
- T.38 fax relay (V.27,V.29 and V.17)
- SIP over TCP with SRTP and TLS (available Q2 2011)
- DSS1, EuroISDN conform
- Q.SIG Basic-Features
- PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)
- The berofix product series constists of a base board and modules (LineInterfaces) which can be plugged on the base board.
Each base board can carry up to 2 line interfaces. The berofix baseboard is available as PCI / PCIe or as external box with the following channel densities:
berofix 400 (4-16 channels)
berofix 1600 (16-64 channels)
berofix 6400 (64-120 channels)
These baseboards can be equipped with the following available Lineinterfaces:
bf4S0, 4 Port BRI module
bf1E1, 1 Port PRI module
bf2E1, 2 Port PRI module
bf2S02FXS, 2 Port BRI and 2 Port FXS analog module (available Q4 2010)
bf4FXO, 4 Port FXO analog module (available Q4 2010)
bf4FXS, 4 Port FXS analog module (available Q4 2010)
bf2GSM, 2 Port GSM module (available Q1 2011)
In addition to the baseboards and the line interface, the following accessories are available:
- bf4Bridge (to use all 4 RJ45 slots on a baseboard with one bf4S0, bf2S02FXS, bf4FXO, bf4FXS)
- bnTAdapters
- bnPCM Cable (to interconnect berofix baseboards)
- bnE1Crosscable (to connect berofix E1 ports to other systems)
- bn19Bracket 19" Rackmount bracket for berofix boxes
Due to the modular concept of the berofix you can free mix PRI / BRI, analog (FXS/FXO) and GSM Lineinterfaces on one baseboard.

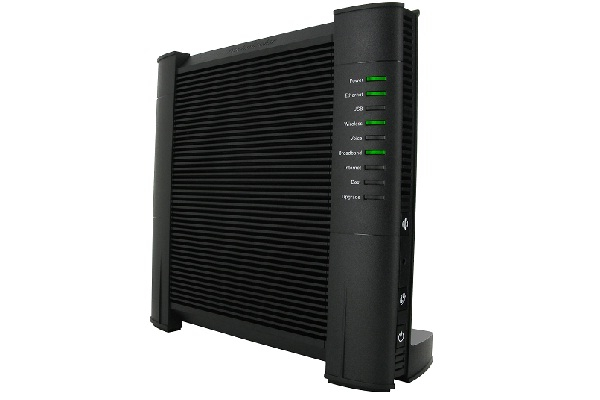

Technicolor TG672
The TG672 is a wireless VoIP router, with one RJ-11 WAN port, one 10/100/1000Base-T WAN port, one Gigabit Ethernet LAN port, 3 Fast Ethernet LAN ports, 1 FXO analogue port, 2 FXS ports for phone or fax and two USB ports. The router provides 3G back-up WAN connection via USB modem adapter. The integrated access point complies with IEEE 802.11n standard, providing wireless transmission speeds of up to 300Mbps. It supports Multiple SSIDs and uses WMM (QoS) to prioritize the traffic over the network. A WPS button allows for easy wireless security configuration. The router provides a variety of VoIP features, such as Caller ID, Echo Cancellation and 3-way conferencing. The TG672 has a built-in SPI firewall that protects the network against hackers and Denial of Service (DoS) attacks.
The Technicolor TG672 is an Ultra BroadBand business gateway, designed for Corporate/SMEs and SOHOs and offers plenty of possibilities through a complete set of business features. The Technicolor TG672 is a one-box office solution for communicating to the outside world, offering security to the office, allowing to share resources (like printer, hard disk), functioning as a PABX, while being able to be managed by the operator. It also has integrated DECT: DECT handsets supported by the gateway are the Technicolor TH58 and TH52.
Flexible Solution:
The Technicolor TG672 is an Ultra BroadBand business gateway, designed for corporate/SMEs and SOHOs and offers plenty of possibilities through a complete set of business features. The Technicolor TG672 is a one-box office solution for communicating to the outside world, offering security to the office, allowing to share resources (like printer, hard disk), functioning as a PABX, while being able to be managed by the operator. It also has integrated DECT: DECT handsets supported by the gateway are the Technicolor TH58 and TH52.
Features at a Glance ? Universal Ultra Broadband business gateway (supporting as well ADSL2+, VDSL2+, Fiber networks via Gigabit Ethernet Uplink, 3G via USB dongle) ? Embedded DECT: CAT-iq ready ? Secure communication device, with integrated IPSec client (compatible with major VPN servers), corporate firewall and content filtering. ? Dynamic routing support, including RIP, BGP and OSPF ? 3G back-up ? Extensive operator management capabilities (SNMPv3, TACACS+, Syslog) ? Standard built-in access point based on 802.11n ? Easy install / use, embedded firewall, QoS, TR-69 ? Direct connection of printer, hard disk, ... via USB port for office sharing ? SOHO/SME PABX functionality (with integrated SIP server/ Back to Back User Agent) ? Non-Service-Affecting SW upgrades, through dual bank memory configuration
beroNet Small Business Line Gateway: 2S0. BFSB2S0 (2 BRI)
The beroNet Small Business Line is designed for the SOHO area, to connect ISDN(BRI) and Analog (FXO/FXS) Lines to any SoftPBX’s like 3CX, Asterisk, FreePBX, Elastix and many more. In comparison to the beroNet VoIP Gateways, the Small Business
Line is not modular and not rack mountable.
BFSB2S0 (2 BRI) Specifications:
*********** ATTENTION *********** SmallBusiness Line is not modular and not rack mountable.

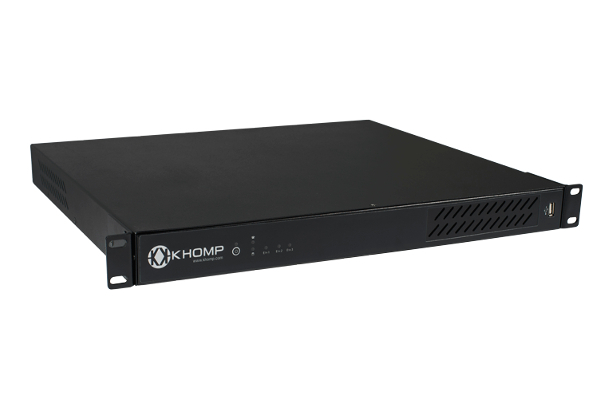

Gateway Khomp KMG 400 MS
The ÇUMG 400 MS gateway is a Khomp media gateway with up to 120 channels, modular interfaces and integrated SBC.
It also presents the possibility of adding 2 external telephony modules. These modules can include E1/T1, GSM, FXO and / or FXS, as long as the maximum of 120 telephony channels is respected.
In addition, this KMG 400 MS series offers the ideal solution for companies and institutions with communiation needs through IP telephony exchanges since SIP connection sections can be made through this series.
Key features

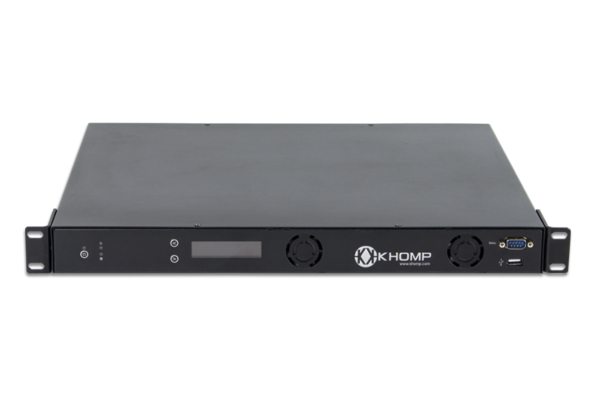

Khomp Gateway KMG 3200 MS
Khomp KMG 3200 gateway is part of Khomp's medium gateway, a high density device capable of supporting up to 32 E1 / T1 links or 960 telephony channels, which ca use E1 / T1, GSM, GXO and / or FXS. In addition to the STFC channels, it also supports 450 sIP VoIP and is ideal for reliable network structures that need the highest voice quality.
It has 13 network ports, one of them specific for high availability, with the ability to transfer the processing of calls from the gateway to a chassis in standby mode, in the event of a hardware failure. In this way, network configurations, including IP addresses, are maintained.

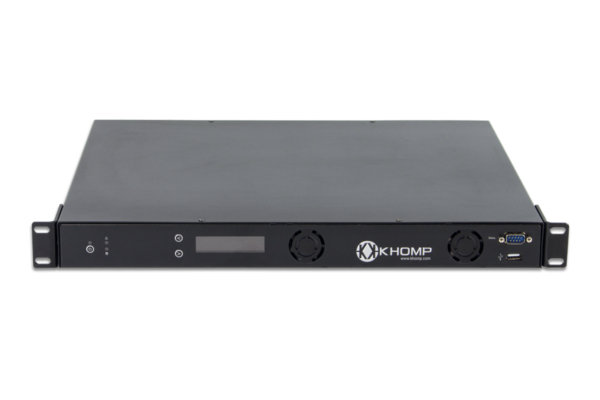

Gateway Khomp KMG 750 SBC
The SBC 750 KMG gateway is a Khomp media gateway capable of supporting up to 32 E1/T1, or 960 telephony channels, which can use E1/T1, GSM, FXO and/or FXS technologies.
It supports 450 VoIP SBC and is ideal for use in network structures that need the highest voice quality. In addition, it has 13 network ports, one of them specific for high availability.
Gateway Khomp 200 MS - 2 E1 (Conector BNC)
The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 2 internal E1 links and BNC connector.
It also presents the possibility of adding 2 external telephony modules. These modules can include E1/T1, GSM, FXO, and / or FXS, as long as the maximum of 60 STFC telephony channels are respected and two of their network ports are used. (See more details on product technical sheet).
In addition, this series KMG 200MS offers the ideal solution for companies and institutions with communication needs through IP telephone exchanges since SIP connection sections can be made through this series.
Características destacadas
Application model

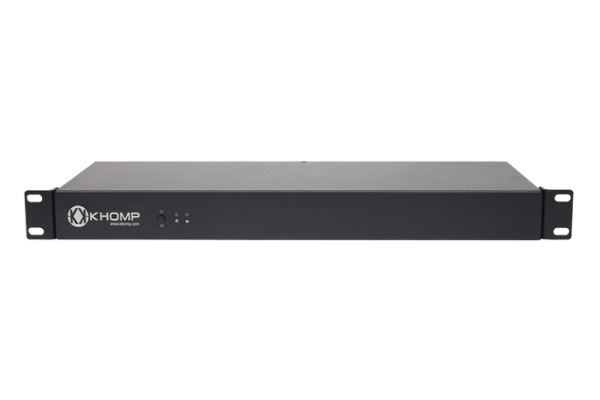

Gateway Khomp 200 MS - 1 E1 (Conector BNC)
The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 1 internal E1 link and BNC connector.
Gateway Khomp 200 MS - 1 E1 (Conector RJ)
The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 2 internal E1 link and RJ connector.
The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 1 internal E1 link and RJ connector.
