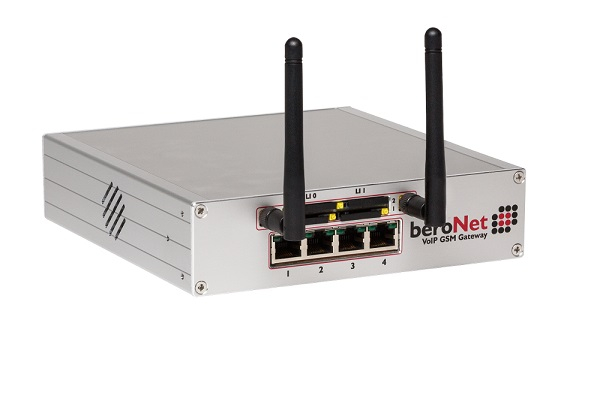

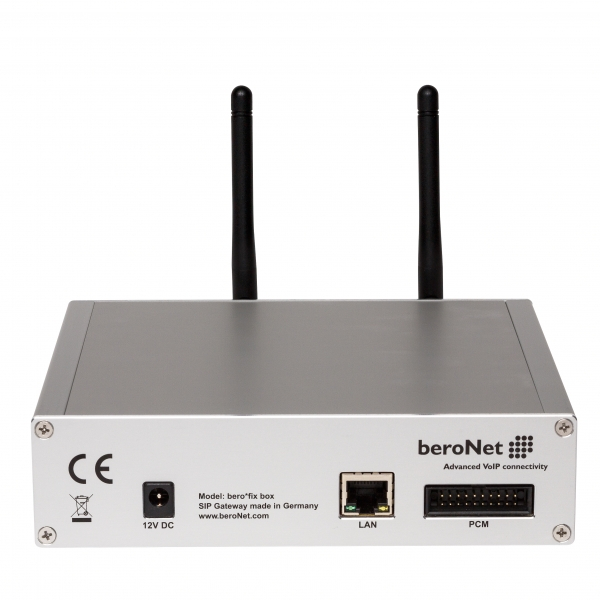

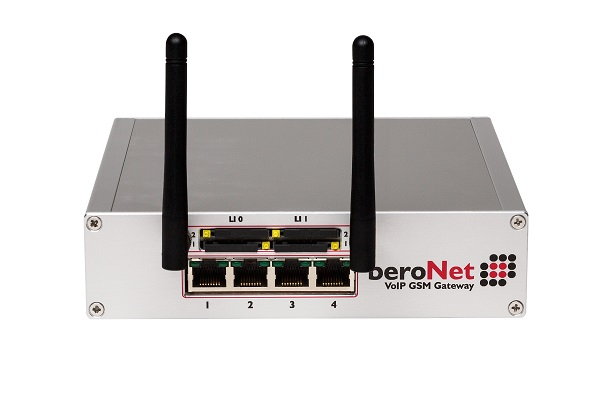

Gateway Beronet BF4002GSMbox(BNBF400box+1x BF2GSM)

Comparar

Código da Avanzada7: 0030290040001

Manufacturer SKU: BF4002GSMBOX

Gateway Beronet BF4002GSMbox (2 GSM)
BF4002GSMBOX

The berofix Gateways are a powerful and flexible Hardware Solution to connect 2 GSM Lines to any SIP based VoIP system.

The gateway embedded a berofix baseboard cards and each gateway can carry up to 2 modules BF2GSM
- 1 module = 2 GSM/gateway
- 2 modules = 4 GSM/gateway
Specifications:
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726, G.711 u/a
- G.168/G.165 Echo Cancellation with Echo Path Change Detection, up to 128ms
- Voice Activity Detection / Comfort Noise Generation
- DTMF Digit Detection and Generation
- SIP User Agent IETF RFC3261 compliant
- SIP over UDP/TCP with optional TLS support (SIP signalling only)
- Operating temperature: 0-70°C
- Compliance: CE (EN55022, EN55024, EN60950)
- Box:
- Power: 12V
- Dimensions: 168 x 168 x 42mm
- Weight: 660g
- Caracteristicas AdicionalesSMS (Text and PDU) | Integrated SMS-Mail and Mail-SMS Gateway
- Puertos GSM2 separate Ports GSM/GRPS Protocol Stack 3GPP Release 4 compliant
- Conectividad GSMQuadBand(850/900/1800/1900 Mhz)
- MÃ³dulos Compatiblesmódulo compatible opcional: BF4S0 (4BRI), BF2S02FXS (2BRI/2FXS), BF4FXO (4 FXO), BF4FXS (4 FXS) ó BF2GSM (2 GSM)
- DatasheetDS_berofix.pdf
- Othersbfdetect.tar.gz
- User manualberofix_manual.pdf
- Firmwareappfs-2.2-sp1.tar.gz
- Firmwareberofix-fpga-8.tar.gz
- Firmwareappfs-1.13.tar.gz
- Firmwarebfdetect.tar.gz
- Firmwarebfdetect_win_x86.zip
- Quick start guideQuick-Installation-Guide-Berofix.pdf
