Código da Avanzada7: 0030320040006
Manufacturer SKU: BF4004S0Box
- Producto descatalogado

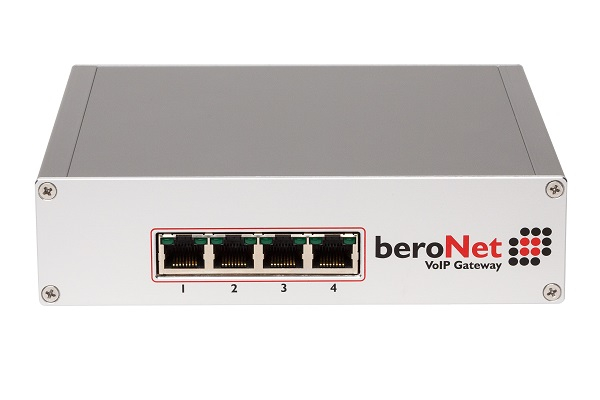

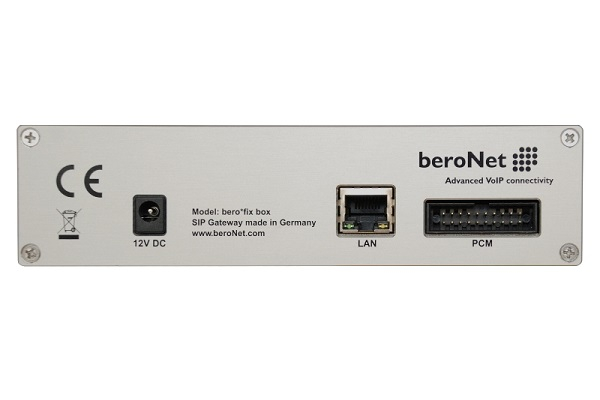

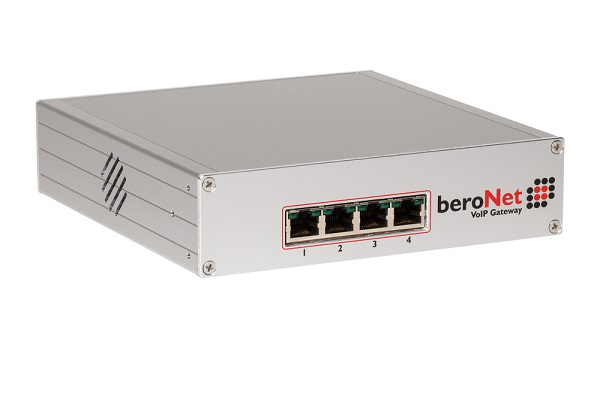

Gateway Beronet BF4004S0Box (4 BRI, ampliable)
-
BeroNet offers the berofix card series, a higlhly flexible and powerful hardware solution to integrate ISDN, (BRI/PRI) , analoge (FXO/FXS) and GSM Lines to any SIP based VoIP system. berofix is not a typical SIP Media Gateway neither a standard PCI/PCIe card, where you need proprietary drivers, so we call it a "Gateway Card". Because of the special Hardware design the operating system is detecting berofix as a classical Network card. All necessary drives to work with the berofix should in general automatically loaded by the OS. Thus berofix is OS indepedent and can be used for instance on Linux/Unix Windows and MAC environments (currently tested under Linux and Windows). Berofix has a modular concept and supports the following hardware DSP based Voice Proccessing
Features:
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
- DTMF detection and generation
- T.38 fax relay (V.27,V.29 and V.17)
- SIP over TCP with SRTP and TLS (available Q2 2011)
- DSS1, EuroISDN conform
- Q.SIG Basic-Features
- PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)
- The berofix product series constists of a base board and modules (LineInterfaces) which can be plugged on the base board.
Each base board can carry up to 2 line interfaces. The berofix baseboard is available as PCI / PCIe or as external box with the following channel densities:
berofix 400 (4-16 channels)
berofix 1600 (16-64 channels)
berofix 6400 (64-120 channels)
These baseboards can be equipped with the following available Lineinterfaces:
bf4S0, 4 Port BRI module
bf1E1, 1 Port PRI module
bf2E1, 2 Port PRI module
bf2S02FXS, 2 Port BRI and 2 Port FXS analog module (available Q4 2010)
bf4FXO, 4 Port FXO analog module (available Q4 2010)
bf4FXS, 4 Port FXS analog module (available Q4 2010)
bf2GSM, 2 Port GSM module (available Q1 2011)
In addition to the baseboards and the line interface, the following accessories are available:
- bf4Bridge (to use all 4 RJ45 slots on a baseboard with one bf4S0, bf2S02FXS, bf4FXO, bf4FXS)
- bnTAdapters
- bnPCM Cable (to interconnect berofix baseboards)
- bnE1Crosscable (to connect berofix E1 ports to other systems)
- bn19Bracket 19" Rackmount bracket for berofix boxes
Due to the modular concept of the berofix you can free mix PRI / BRI, analog (FXS/FXO) and GSM Lineinterfaces on one baseboard.
-
- Puertos GSMopcional módulo compatible BF2GSM: berofix 2 port GSM
- Puertos ISDNopcional módulo compatible BF4S0: berofix 4 port BRI/S0 (RDSI)
- Cancelador de eco HardwareSI
- Puertos PRIopcional módulo compatible BF1E1: berofix 1 port E1/ PRI; opcional módulo compatible BF2E1: berofix 2 port E1/ PRI
- Puertos FXOopcional módulo compatible BF4FXO: berofix 4 port FXO
- Puertos FXSopcional módulo compatible BF4FXS: berofix 4 port FXS
- Módulos Compatiblesopcional módulo compatible híbrido BF2S02FXS: berofix 2 port BRI/S0 (RDSI) + 2 port FXS
-
- DatasheetDS_berofix.pdf
- Othersbfdetect.tar.gz
- User manualberofix_manual.pdf
- Quick start guideDatasheet_Assembly.pdf
- Firmwareappfs-2.2-sp1.tar.gz
- Firmwareberofix-fpga-8.tar.gz
- Firmwareappfs-1.13.tar.gz
- Firmwarebfdetect.tar.gz
- Firmwarebfdetect_win_x86.zip
