Adaptador BIP / ISDN VoIP SIP

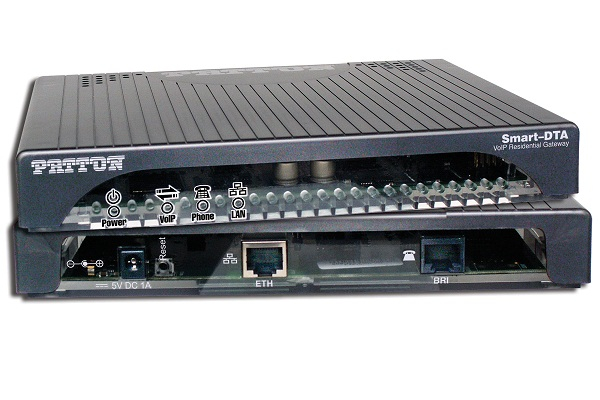

Patton SmartNode DTA SN-DTA/1BIS2V/EUI
The SmartNode DTA enables integration of ISDN network users into a local VoIP phone service, or extends an ISDN line of a PBX to a remote site over IP. It offers a simple end-user configuration interface and connects both to a PBX in point-to-point mode and an So bus in point-multipoint mode. The SN-DTA enables the connection of ISDN terminals or SOHO PBXs to a VoIP network or Internet Telephony Service. It can connect to ISDN PBXs in point-to-point mode and ISDN Terminals in point-multipoint mode (S-Bus) and offers a feature rich configuration interface. Like every SmartNode the DTA includes intelligent call routing technology with advanced features like number plan adaptations, mappings between ISDN and SIP/H.323, manipulation of call properties through regular expressions, routing calls based on time-of-day or bearer capability criteria and much more. Key ISDN services such as AOC, PARE, CLIP, COLP, etc. are mapped using industry standard methods to SIP and H.323. The SN-DTA supports SIP overlap dialing (RFC3578) for countries with dynamic dialplans. The integrated ISDN line-power feeds connected terminals in the same way as a legacy ISDN NT to enable a seamless switchover from an ISDN to VoIP access. Gateway functions use standard CODECs such as G.711, G.723, G.729, and T.38 fax as well as industry standard SIP and H.323 signaling protocols to ensure seamless connection and compatibility for all voice services. Comprehensive quality of service (QoS) features offer traffic classification and tagging options that include TOS, DiffServ and VLAN 802.1p/Q tagging.
Features
Gateway Mediatrix C720h - 1BRI
A série Mediatrix C7 são gateways e adaptadores (ATA) que podem incorporar portas FXS, FXO ou interfaces BRI. Ele oferece a solução de preços mais eficaz para filiais e PMEs, garantindo uma conexão simples e transparente a PSTN e terminais analógicos, como telefones, modems e máquinas de fax.
As plataformas são totalmente interoperáveis com os principais fabricantes de telefones IP, softswitches e serviços de nuvem em todo o mundo.
No caso deste modelo especifico, o C720h incorpora 1BRI porta.
Aplicações
-- Operadores --
-- Integradores de sistemas --
Recursos em destaque
A série Mediatrix 4400 é a solução mais econômica da Mediatrix, que inclui modelos de gateway ISDN com portas BRI, ISDN e Ethernet, tornando-a a opção mais robusta e versátil para emrpesas. Esta série de gateways digitais para VoIP permite a conexão d eequipamentos ISDN, como PBXs, através da interface BRI para uma rede IP ou como um gateway para a rede PSTN.
A série C7 da Mediatrix oferece uma série de gateways que combinam interfaces FXS e FXO para integrar vários aplicativos em uma única plataforma. Esses Gateways VoIP apresentam uma excelente relação preço / qualidade e são ideais para conectar redes de pequenas e médias empresas a uma rede IP.
Os modelos C710, C711, C730, C731 e C733 estão atualmente disponíveis; dependendo do modelo, eles podem apresentar de 4 a 8 portas telefônicas e conectar até 8 telefones analógicos, modems, fax ou até 8 linhas RTC ou troncos de um PBX à rede IP.

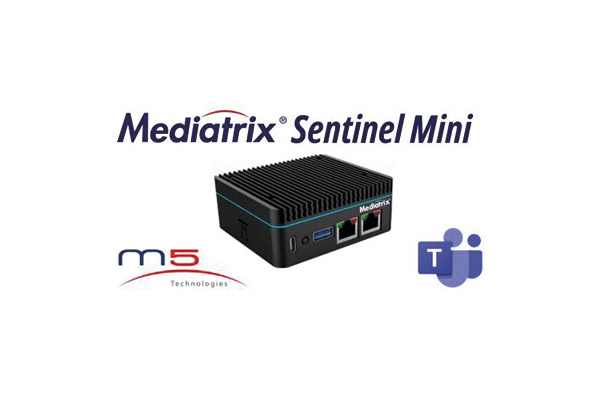

Um dos principais produtos da Mediatrix é o Sentinel, um produto integrador que tem a capacidade de um Controlador de Borda de Sessão (SBC) e um Gateway personalizável. É ideal para empresas de médio e grande porte que precisam de implementações de VoIP com arquitectura flexível, incluindo tolerância a falhas, normalização SIP e ponto de demarcação.
A estação base do nosso Sentinel apresenta inicialmente:
Graças a esses 8 slots, podemos personalizar nosso Sentinel da maneira que queremos, combinando os cartões e as licenás que melhor atendam às nossas necessidades.
MÓDULOS
Licencias SBC

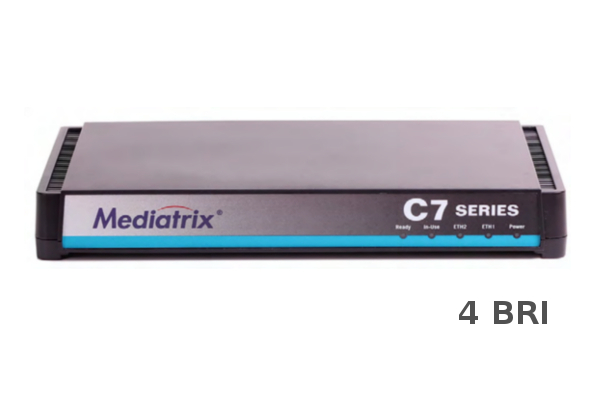

Gateway Mediatrix C740 - 4 BRI
No caso deste modelo especifico, o C740 incorpora 4BRI portas.

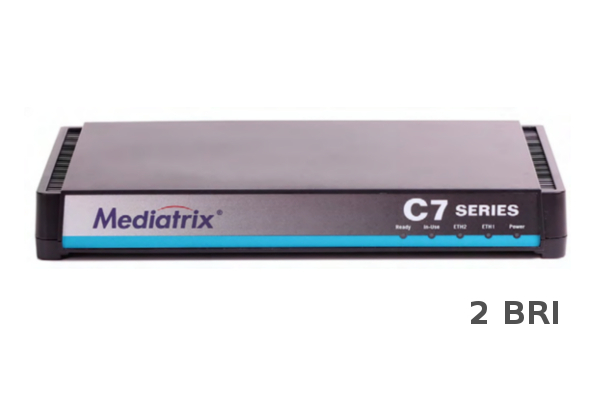

Gateway Mediatrix C720 - 2 BRI
No caso deste modelo especifico, o C720 incorpora 2 BRI portas.
Gateway Vega 60G - 8 FXO
The Vega 60G Gateway is a device designed to simplify the integration of an analog telephone or basic rate ISDN (BRI) devices to a VoIP network.
Each BRI interface can be configured independently as a network side or terminal side. The Vega 60G Media Gateway can, therefore, be used for IP-PBX connectivity to PSTN and SIP trunking offers. This configuration provides:
Key features

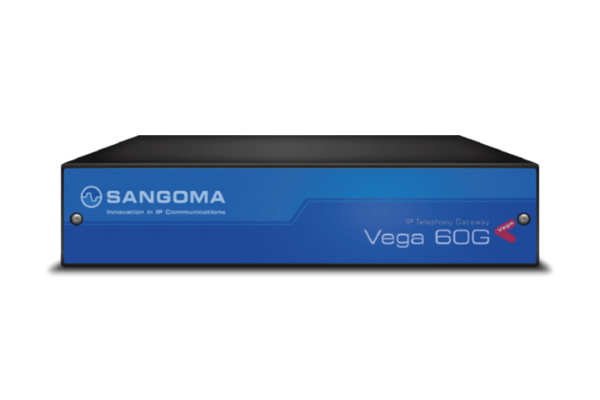

Gateway Vega 60G - 4 BRI
Gateway Vega 60G BRI
Gateway Vega 60G - 4 FXO

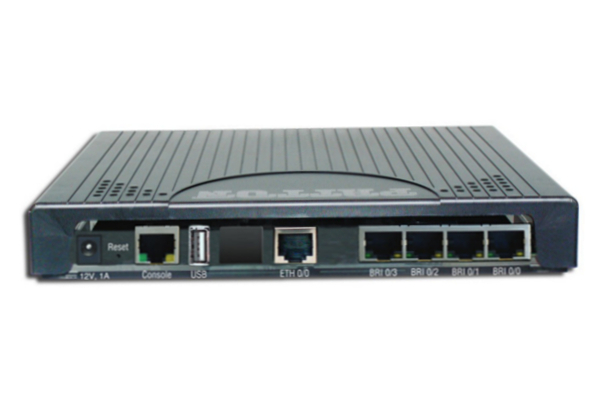

Patton SmartNode RDSI - 2BRI
Patton SN4131 is part of SmartNode SN4130 Series, the new generation of ISDN BRI models from the renowned SmartNode VoIP product family.
The SmartNode 4131 Gateway allows connection to the IP PBX network and other VoIP devices, providing this 2 BRI port. It supports all major VoIP standards 8SIP, H.323, T.38 Fax, Codec G.729), offering high standards of quality and performance.
Its configurations are tailored to the needs of small and medium businesses looking for a cost-effective way to connect PBX systems to multiple sites or connect them to a public Internet telephony service.
Like all Trinity SmartNodes, the SN4130 comes with an integrated Web wizard for quick and easy setup. You can create your own web interface using the web assistant features.
Patton SmartNode RDSI - 4BRI
The SmartNode 4131 Gateway allows connection to the IP PBX network and other VoIP devices, providing this 4 BRI port. It supports all major VoIP standards 8SIP, H.323, T.38 Fax, Codec G.729), offering high standards of quality and performance.
BeroNet offers the berofix card series, a higlhly flexible and powerful hardware solution to integrate ISDN, (BRI/PRI) , analoge (FXO/FXS) and GSM Lines to any SIP based VoIP system. berofix is not a typical SIP Media Gateway neither a standard PCI/PCIe card, where you need proprietary drivers, so we call it a "Gateway Card". Because of the special Hardware design the operating system is detecting berofix as a classical Network card. All necessary drives to work with the berofix should in general automatically loaded by the OS. Thus berofix is OS indepedent and can be used for instance on Linux/Unix Windows and MAC environments (currently tested under Linux and Windows). Berofix has a modular concept and supports the following hardware DSP based Voice Proccessing
Features:
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
- DTMF detection and generation
- T.38 fax relay (V.27,V.29 and V.17)
- SIP over TCP with SRTP and TLS (available Q2 2011)
- DSS1, EuroISDN conform
- Q.SIG Basic-Features
- PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)
- The berofix product series constists of a base board and modules (LineInterfaces) which can be plugged on the base board.
Each base board can carry up to 2 line interfaces. The berofix baseboard is available as PCI / PCIe or as external box with the following channel densities:
berofix 400 (4-16 channels)
berofix 1600 (16-64 channels)
berofix 6400 (64-120 channels)
These baseboards can be equipped with the following available Lineinterfaces:
bf4S0, 4 Port BRI module
bf1E1, 1 Port PRI module
bf2E1, 2 Port PRI module
bf2S02FXS, 2 Port BRI and 2 Port FXS analog module (available Q4 2010)
bf4FXO, 4 Port FXO analog module (available Q4 2010)
bf4FXS, 4 Port FXS analog module (available Q4 2010)
bf2GSM, 2 Port GSM module (available Q1 2011)
In addition to the baseboards and the line interface, the following accessories are available:
- bf4Bridge (to use all 4 RJ45 slots on a baseboard with one bf4S0, bf2S02FXS, bf4FXO, bf4FXS)
- bnTAdapters
- bnPCM Cable (to interconnect berofix baseboards)
- bnE1Crosscable (to connect berofix E1 ports to other systems)
- bn19Bracket 19" Rackmount bracket for berofix boxes
Due to the modular concept of the berofix you can free mix PRI / BRI, analog (FXS/FXO) and GSM Lineinterfaces on one baseboard.

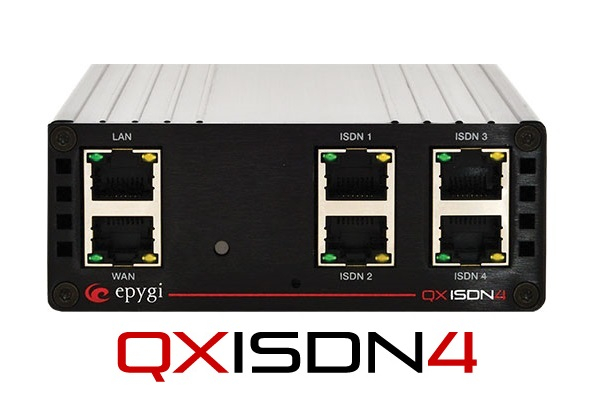

Epygi QXISDN4 gateway (4 BRI)
The Epygi QXISDN4 Gateway performs similarly to the FXO version but connects using ISDN ports. This Gateway includes four ISDN BRI connections for phones and analog devices that can connect to the telephone company's central office or to a local PBX. The QXISDN4 can be used to add inbound lines and balance outbound call volumes from a combination of analog devices and IP phones. The lines can be centrally located within the office or used like an "extension cord" to remote branches. Each QXISDN4 is a stand-alone, SIP gateway device that includes a VPN-router, firewall, HTTP server and call processing software. Installation requires very little configuration. For example, a QX IP PBX will automatically present the new ISDN ports within its management system.

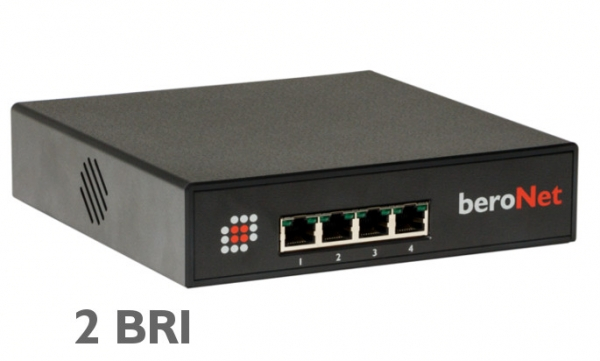

beroNet Small Business Line Gateway: 2S0. BFSB2S0 (2 BRI)
The beroNet Small Business Line is designed for the SOHO area, to connect ISDN(BRI) and Analog (FXO/FXS) Lines to any SoftPBX’s like 3CX, Asterisk, FreePBX, Elastix and many more. In comparison to the beroNet VoIP Gateways, the Small Business
Line is not modular and not rack mountable.
BFSB2S0 (2 BRI) Specifications:
*********** ATTENTION *********** SmallBusiness Line is not modular and not rack mountable.

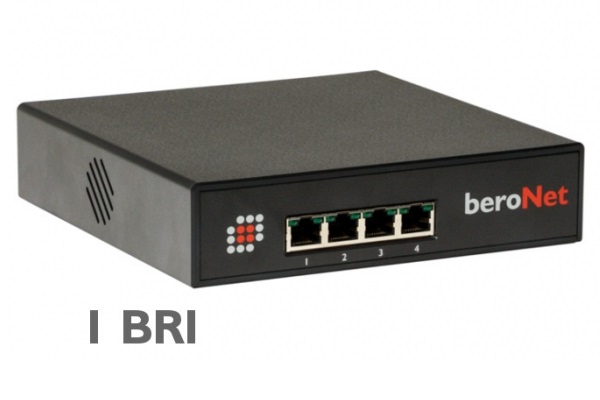

beroNet Small Business Line Gateway: 1S0. BFSB1S0 (1 BRI)
BFSB1S0 (1 BRI) Specifications:
Gateway Patton SN4120 - 2 BRI (TE) SN4120/2BIS4V/EUI
The SmartNode™ 4120 ISDN BRI PSTN Gateway converts four simultaneous phone or T.38 fax calls from SIP to ISDN BRI. It is a compact reliable standalone VoIP gateway for IP-based voice systems that delivers ISDN performance and quality. For system integrators looking to connect a VoIP or Unified Communication solution to public or private ISDN lines, the SmartNode 4120 provides unparalleled ISDN to IP feature preservation. Like any SmartNode the 4120 provides advanced ISDN functionality such as Explicit Call Transfer (ECT) support and Advice of Charge (AOC) over SIP. Patton CPEs are interoperable with most IP PBX and Unified Communication vendors such as Asterisk, 3CX, Elastix, Microsoft, IBM, Swyx, SNOM One and many others. Compared to PC-based solutions that combine IP PBX and a PCI BRI cards, the SmartNode has several advantages, including: installation without additional drivers or software, operation without ventilation or hard disk, scalable without limitation, and service integration without downtime. SmartNode gateways can be combined in a cluster for simple and flexible redundancy solutions not available with PCI BRI cards. System administrators don't have to learn ISDN as industry standard protocols like SIP do the job of connecting the PSTN to your VoIP system.
Available TWO models:

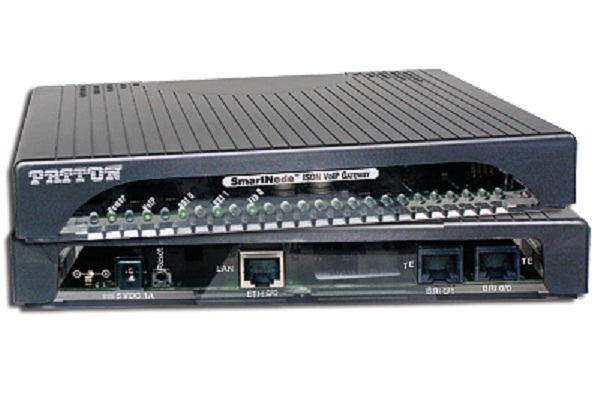

Gateway Patton SN4120 - 1 BRI (TE) SN4120/1BIS2V/EUI
The SmartNode™ 4120 ISDN BRI PSTN Gateway converts two simultaneous phone or T.38 fax calls from SIP to ISDN BRI. It is a compact reliable standalone VoIP gateway for IP-based voice systems that delivers ISDN performance and quality. For system integrators looking to connect a VoIP or Unified Communication solution to public or private ISDN lines, the SmartNode 4120 provides unparalleled ISDN to IP feature preservation. Like any SmartNode the 4120 provides advanced ISDN functionality such as Explicit Call Transfer (ECT) support and Advice of Charge (AOC) over SIP. Patton CPEs are interoperable with most IP PBX and Unified Communication vendors such as Asterisk, 3CX, Elastix, Microsoft, IBM, Swyx, SNOM One and many others. Compared to PC-based solutions that combine IP PBX and a PCI BRI cards, the SmartNode has several advantages, including: installation without additional drivers or software, operation without ventilation or hard disk, scalable without limitation, and service integration without downtime. SmartNode gateways can be combined in a cluster for simple and flexible redundancy solutions not available with PCI BRI cards. System administrators don't have to learn ISDN as industry standard protocols like SIP do the job of connecting the PSTN to your VoIP system.

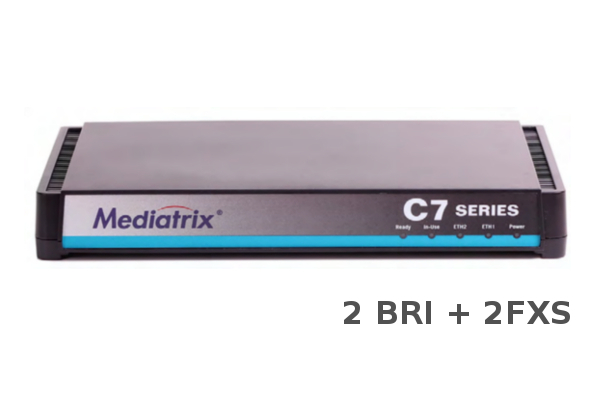

Gateway Mediatrix C725 - 2 BRI + 2 FXS
No caso deste modelo especifico, o C725 incorpora 2 BRI + 2 FXS portas.
Use our comparator and choose the correct product
Gateway Patton SN-DTA - 2 BRI (NT)
1BRI | 2 x RJ45 10/100Base-T Ethernet
4 BRI | 2 x RJ45 10/100Base-T Ethernet
2 BRI | 2 x RJ45 10/100Base-T Ethernet
8 FXO, RJ11, 1xRJ45 Gigabit, USB, 3-way conference
4 BRI, up to 8 simultaneous calls, 1xRJ45 Gigabit, USB, 3-way ...
2 BRI, up to 4 simultaneous calls, 1xRJ45 Gigabit, USB, 3-way ...
4 FXO, 8 VoIP channels, RJ11, 1xRJ45 Gigabit, USB, 3-way conference
2BRI, High Precision Clock
4BRI, High Precision Clock
Bero*fix box up to 16 channels
Gateway Patton SmartNode™ 4120 - 2 BRI (TE) converts four simultaneous ...
Gateway Patton SmartNode™ 4120 - 1 BRI (TE) converts two simultaneous ...
2 BRI + 2 FXS | 2 x RJ45 10/100Base-T Ethernet

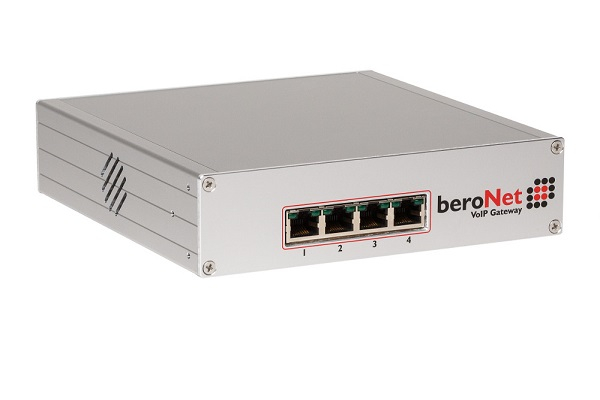

Bero*fix box up to 128 channels
Bero*fix box up to 64 channels
