Fabricante: KHOMP
Código da Avanzada7: 0030261090001
Manufacturer SKU: UMG FXS 240
Unidades en la cesta: 0
Khomp UMG FXS 240
-

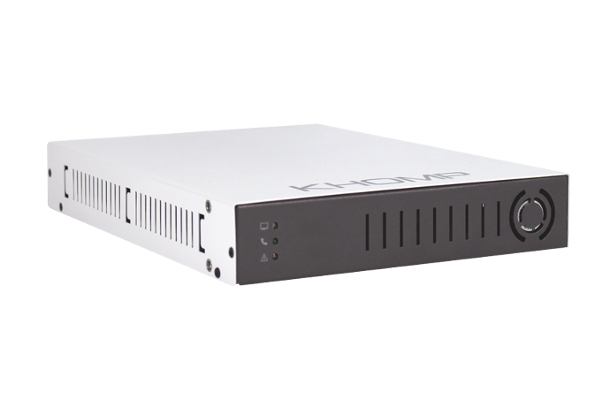

Gateway Khomp UMG 240 FXS
The UMG FXS 240 is a mid-line gateway of the Khomp brand. The device is ready to connect to VoIP links, software switches and PBX equipment and can have up to 24 FXS channels and up to 10 registered SIP accounts.
Furthermore, it is compatible with the main signals and codeecs of the market, in addition to the control and routing of calls, according to programmed rules.
It has two internal plates:
- CPU board: responsible for routing, access to web interface and equipment halt resources
- Network board: has two external 10/100/1000Mbps gigabit network ports. Dedicated to the administration, the maintenance of the device and the connection with other equipment.
Key features
- 24 FXS channels
- Up to 10 registeres SIP accounts
- 2 Ethernet network ports
- Echo cancellation
- Failover of routes
- Compatibility with SNMP
- Customizable CDR
- Simple design and ease of installation
- OLED graphic screen (optional)
- Internal AC power supply (standard): input: 100-240V 50-60Hz, maximum power consumption: 30W | External power supply (optional)
- Codecs: G.711A, G.711U, G.729A
- 2 Gigabit network ports 10/100/1000 Base-T
- 12 VCC polarized power supply connector (optional source)
-
- Puertos FXO0
- Puertos FXS24
- Puertos PRI0
- Puertos GSM0
- Puertos EthernetGigabit: 2x 10/100/1000 Base-T
- Codecs SoportadosG.711A, G.711UU, G.729A
- Fuente de alimentacionInput: 100-240 V 50/60 Hz | Output: 12V / 3.5A | External power supply available (optional)
- Caracteristicas AdicionalesProtocols: SIP, SNMP, DNS, ICMP, IP, RTP, TCP, UDP, FTP, HTTP, HTTPS
- Codec para FAXCompatibility with FAX T.38 and pass-through
-
- DatasheetUMG-FXS-240-ES-Avanzada 7.pdf
