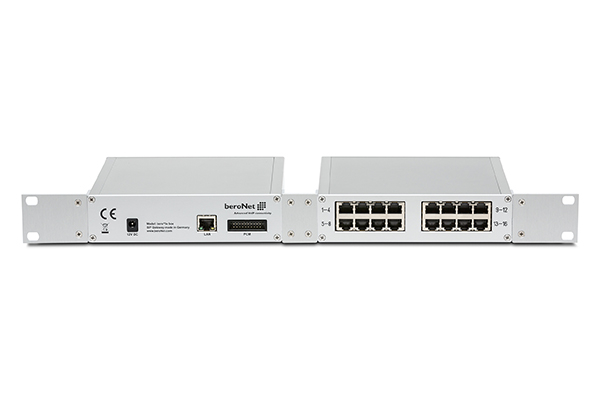

Gateway Beronet 16 FXS con breakout box

Comparar

Código da Avanzada7: 0030260040001

Manufacturer SKU: BN16FXSfax_B

The beroNet 16FXS Gateway is designed to simplify the integration of legacy phone system to IP infrastructure. It enables you to connect 16 analog devices (phones or fax) to an IP network.

The beroNet 16FXS Gateway is used by firms, hostels or hospitals who need internal Analog FXS ports to connect lots of analog devices.

Specifications:
- 16 separate Analog FXS Ports
- FXS supports 0V to -94.5V
- FXS supports 3-5 REN (depending on line length)
- FXS has current feed 20-41 mA
- FXS Ringing Freqency, Amplitude, Waveshape and Cadences programmable (by country setting)
- G.168/G.165 Echo Cancellation with Echo Path Change Detection, 128ms
- Codecs: G.711, G.726, G.723, G.729
- T.38 fax relay (v.27ter, V.29, and V.17)
- TDM bridging over 2 beroNet devices through PCM bus
- CE compliance
- Connections:
- 10/100 Mbit LAN Port
- Power supply: 110-230V operating 12V DC at 2A
- PCM bus 8.192 kB/s
- 16 RJ45 – Breakout
- Dimensions and Weight:
- Dimensions Gateway: 168 x 168 x 42mm, Breakout: 168 x 168 x 42mm
- Mounting: 1U industry with optional 19” Brackets or wallmountable chassis
- Weight: Gateway 800g, Breakout: 700g
- Environment:
- Storage Temperature: -20° to 70°C
- Operating Temperature: 0° to 40°C
- Humidity: 20% - 95%, non-condensing
- Puertos FXS16
- Codec para FAXT.38 fax relay (v.27ter, V.29, and V.17)
- Puerto LAN1 - 10/100 Mbit LAN Por
- Codec de audioG.711, G.726, G.723, G.729
- Datasheet130703_EN_16FXS_Datenblatt.pdf
