The starter pack includes these components:

1 Gateway with a Hybrid Module 2BRI/2FXS (BF4002S02FXS Box)

1 Appliance (L) with a Hybrid Module 2BRI/2FXS ( BNTA_2S02FXS_L)

1 Beronet Cloud account

------------------------------------------------------------------------------------------------------

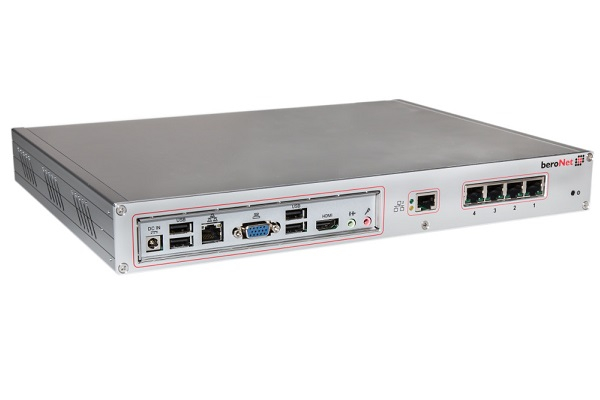

BERONET APPLIANCE

The beroNet Telephony Appliance is the ideal platform for customers and technology integrators, looking for a reliable hardware solution, with integrated ISDNa, Analog or GSM connectivity, in this STARTER PACK a hybrid module BRI/FXS is included.

The beroNet Telephony Appliance’s elegant design delivers superior energy efficient properties and is designed specifically for the rigorous 24/7 uptime demand of modern telephony systems. With a power consumption of less than 24W during normal operation, over 200.- EUR can be saved in electricity costs per year.

With its fanless design and harmonized components the beroNet Telephony Appliance is the suitable solution for all kinds of telephony projects. The beroNet Telephony Appliance is designed for telephony applications in the SOHO and SME markets and is perfectly suited for businesses with up to 60 concurrent calls.

Choose your favorite telephony software. The beroNet Telephony Appliance has been extensively tested with Linux and Windows operating systems and is compatible with all of these software solutions:
- 3CX
- Asterisk
- Microsoft Lync
- Askozia
- Elastis
- Opensips
- FreeSwitch
The Appliance beronet includes a USB pendribe which includes the executable from the most important software PBXL (3CX, Elastix, Asterisk...), each integrator must choose which of those PBX wanted to install in the appliance.*

*A software PBX must be installed in order to use the appliance Beronet.

---------------------------------------------------------------------------------------------------------------

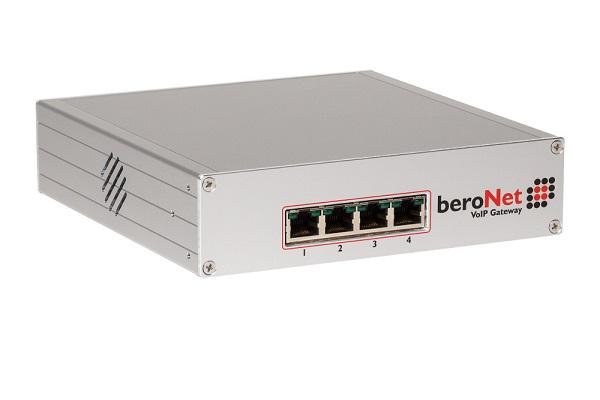

BEROFIX BOX

The berofix box is a powerful and flexible hardware solution to connect ISDN (BRI, PRI) and GSM lines to any SIP based VoIP system. The berofix box is the external aternative to the cards. Due to the modular concept you can mix PRI, BRI and GSM ports, in this STARTER PACK a hybrid Module (BRI/FXS) is included.

Features:
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
- DTMF detection and generation
- T.38 fax relay (V.27,V.29 and V.17)
- SIP over TCP
- SRTP and TLS (available Q4 2010)
- DSS1, EuroISDN conform
- Q.SIG Basic-Features set
- PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)
NOTE: Only one starter pack per integrator is included. Promotional price
- GigabitYes
- Puertos FXS2
- Numero de lineas ISDN2
- Disco Duro120 GB SSD
- Tarjetas de red2
- USB4 x USB 2.0
- Cancelador de eco SoftwareG.168/G.165 with path change detection up to 128ms
- Codec para FAXT.38 Fax relay (up to 16 channels)
- Numero de lineasUp to 64 channels
- TamaÃ±o35 x 25,5 x 4,6 cm (1U )
- Datasheetappliance-2bri-2fxs-en.pdf
- Guia de AdministracionberoNet_Starterpack_Techtraining.pdf
