Grandstream GWN7600 WiFi Access Point

Description
Technical specs
Downloads

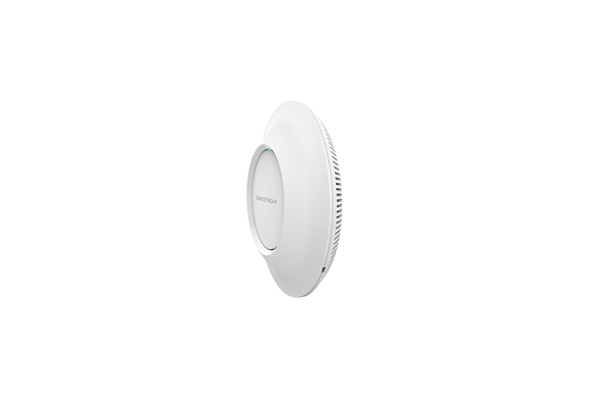

GWN7600 WiFi Access Point

The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2x2:2 MU-MIMO with beam-forming thechnology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. This allows each access point to manage a network of up to 30 GWN76XX series APs independently without needing separete controller hardware / software and without a single point - of - failure.

Features
- 1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beam-forming technology
- Support 802.af Power-over-Ethernet (PoE)
- Support 450+ concurrent WiFi client devices
- Up to 165 meter coverage range
- Advance QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data / control lockdown via digital signatures, unique security certificate / random default password per device
- Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network
- Antennas: 2x 2.4 GHz, gain 3 dBi, internal antenna; 2x5GHz, gain 3 dBi, internal antenna
- Channel bandwidth: 2.4G: 20 and 40 MHz and 5G: 20,40 and 80MHz
- Up to 165m of coverage range
- Concurrent clients: +450
- 2 x autosensing 10/100/1000 Base-T Ethernet ports
- QoS 802.11/e/WMM, VLAN, TOS
- Power supplyNot included
- Gigabit2 Wireless Gigabit Ports and 1.27Gbps Wireless Performance
- Equipment2 internal antennas of 2.4 GHz, gain of 3dBi 2 internal antennas of 5 GHz, gain of 3 dBi
- Additional featuresIEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- RangeUp to 165m
- SpecsIPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
- Datasheetdatasheet_gwn7600_ES.pdf
- Datasheetdatasheet_gwn7600_EN.pdf
- Quick start guideGWN7600-quick_installation_guide.pdf
