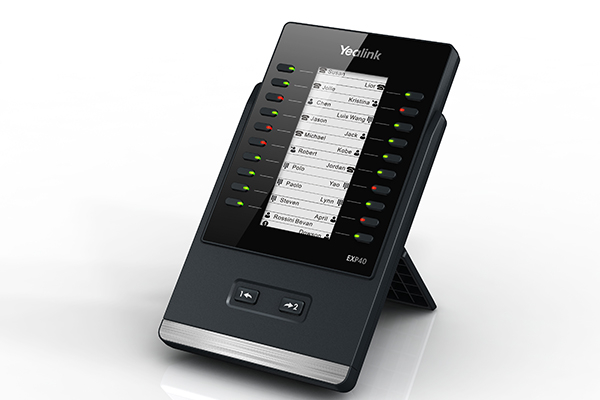

Yealink EXP40, 40 blf, for T46G and T48G Expansion Module
-
LCD Expansion Module
EXP40
The EXP40 Expansion Module for the SIP-T46G and SIP-T48G, expanding the functional capability of your sip phone to a whole new level. It features a large graphic LCD.
Two pages of 20 flexible buttons are shown on the display can be programmed up to 40 various features, the productivity-enhancing features include BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc.
Features
- An exclusive collection which quality and detailed designs
- Rich visual experience with 160x320 graphic LCD
- 20 physical keys each with a dual-color LED
- 2 independent control keys are used for fast switch pages
- Stand with 2 adjustable angles
- Wall mountable
Specification
Display
- 160x320 graphic LCD with 16-level grayscales
- LCD Backlight
- Two page views are possible
- Different icons for each function shown on the LCD
Features Keys and Indicator
- 20 physical keys each with a dual-color LED
- 20 additional keys through page switch
- 2 independent control keys are used for fast switch pages
- Programmable for Shared Line, BLF List,
- BroadSoft Group, Call Park, Conference,
- Forward, Group pickup Group listening,
- LDAP, Pick UP, XML Browser, Zero-SP-Touch......
Physical Feature
- Wall mountable
- Stand with 2 adjustable angles
- Expansion module (≤2) is powered by the
- host phone
- Supports up to 6 modules daisy-chain
- 2xRJ12?6P6C?ports for data in and out
- Dimension (W*D*H*T):
- 127mm*213mm*167mm*45mm
- Applies to Yealink IP Phone
- Operating temperature: -10~50°C
- Operating humidity: 10-95%
Package Features
- Qty/CTN: 10 PCS
- N.W/CTN: 6.7 kg
- G.W/CTN: 7.6 kg
- Giftbox size: 237mm*154mm*100mm
- Carton Meas: 520mm*317mm*247mm
-
-
- Quick start guideYealink_EXP40_Quick_Installation_Guide_V16_2.pdf
- User manualYealink_EXP40_User_Guide_V16_2.pdf
- DatasheetDatasheet.pdf
