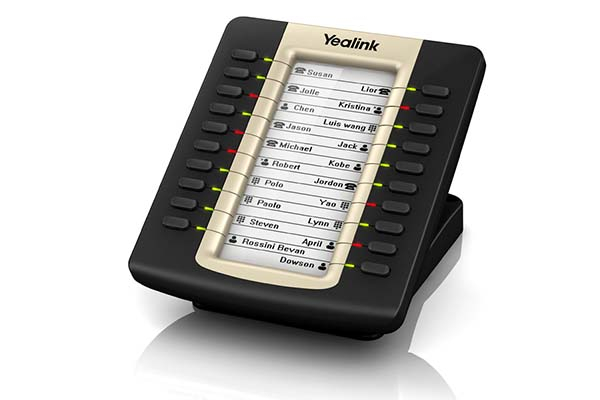

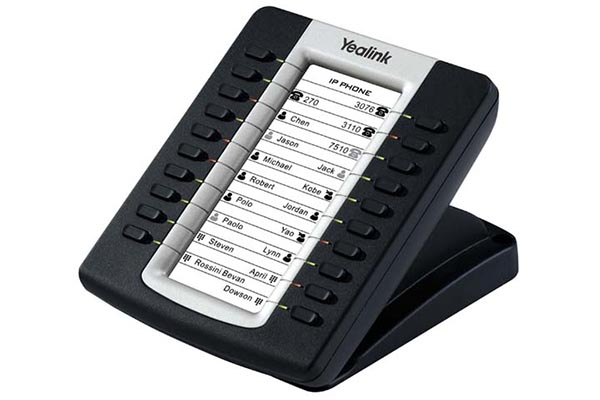

Teclado Yealink EXP39, 20 BLF

  • Imagen 1: Teclado Yealink EXP39, 20 BLF
  • Imagen 2: Teclado Yealink EXP39, 20 BLF
  • Imagen 3: Teclado Yealink EXP39, 20 BLF
  • Imagen 1: Teclado Yealink EXP39, 20 BLF
  • Imagen 2: Teclado Yealink EXP39, 20 BLF
  • Imagen 3: Teclado Yealink EXP39, 20 BLF

Avanzada 7 code: 0010100740004

Manufacturer SKU: EXP39

Producto descatalogado

  • LCD Expansion Module

    EXP39

    The Yealink EXP39 LCD Expansion Module has been designed to improve the power and flexibility of the advanced Yealink IP phones. It features a 160x320 graphic LCD and 20 physical keys, each with a dual-color LED. These show very clearly which function had been selected and make operation very easy. What is more, you can add 20 additional keys via a page switch, bringing the number of programmable keys up to 40.  Each programmable key supports functions that include speed dialing, plus BLF/BLA, intercom, call forward/transfer/hold/park/pickup/return. This allows up to six EXP39 units to be daisy-chained together. The Yealink EXP39 is ideal for receptionists, administrative assistants, call center agents, power-users, and executives who need to monitor and manage a large volume of calls on a regular basis. Features include:


    * A rich visual experience with a 160x320 graphic LCD
    * 20 physical keys, each with a dual-color LED
    * 20 additional keys through page switching
    * A daisy-chain of up to six modules providing up to 120 keys
    * Support for BLF/BLA, speed dialing and call pick-ups



    Features

    • Rich visual experience with 160x320 graphic LCD
    • 20 physical keys each with a dual-color LED
    • 20 additional keys through page switch
    • Daisy-chain 6 modules up to 120 keys
    • Supports BLF/BLA, speed dialing, call pickup, etc.

    Specification

    Main Features

    • 160x320 graphic LCD with 4-level gray scales
    • 20 physical keys each with a dual-color LED
    • 20 additional keys through page switch
    • Supports up to 6 modules daisy-chain
    • Different icons for each function shown on the LCD
    • Dual-color LED for status information
    • Supports Busy Lamp Field (BLF)
    • Bridge Line Appearance (BLA)
    • Programmable for speed dialing, call pickup
    • Intercom, hold, transfer, voicemail, forward, DND......
    • Applies to Yealink IP Phone SIP-T29G/T28P/T27P/T26P
    • Expansion module (≤2) is powered by the host phone



    Physical Features

    • 2xRJ12?6P6C?ports for data in and out
    • Power adapter: AC 100?240V input and
    • DC 5V/1.2A output
    • Weight: 290g
    • Dimensions: 145x182x100mm
    • Operating humidity: 10?90%
    • Storage temperature: max 40°C
