Manufacturer: SANGOMA
Avanzada 7 code: 0020140050018
Manufacturer SKU: A116-EPNLKIT
Unidades en la cesta: 0

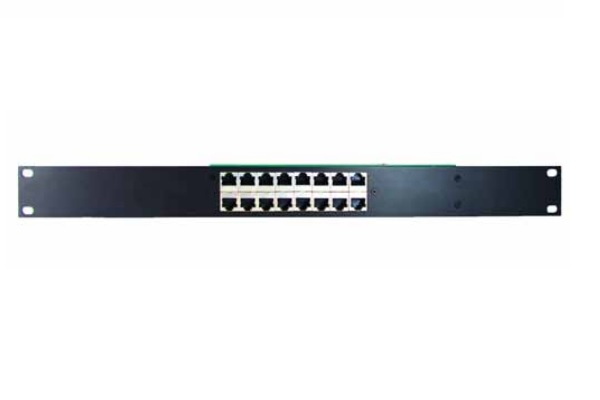

Sangoma card A116E (16E1 PCIe - NO E.C. +panel)
-
The A116 is part of Sangoma’s family of Advanced Flexible Telecommunications hardware product line – using high performance PCI Express interface, providing superior performance in critical systems all over the world. The A116 supports up to 32.8 Mbps of full duplex data throughput or 480 voice calls using 16 T1/E1/J1 spans.
With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A116, like all cards in Sangoma’s AFT family, is field-upgradable with our unique unbreakable firmware feature.
Choose the Sangoma A116E and A116DE, equipped with world class DSP hardware to achieve carrier-grade echo cancellation and voice quality enhancement functions for telecommunication systems.
Typical A116 Applications:
- Call Centers
- Value-Added Services
- Large IVR Systems
- Gateways and Soft Switches
-
- Hardware Echo cancelationNot included in this version
- PRI ports 8 E1/T1 ports with a single PCI-Express interface optimized for high performance voice and data applications
- Slot type 1 PCI Express |32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention | Maximum operational power for PCI Express: 2.5 W (0.76 A @ 3.3 V)
-
- Datasheeta116.pdf
