Manufacturer: SANGOMA
Avanzada 7 code: 0020140050005
Manufacturer SKU: A102-KIT
Unidades en la cesta: 0

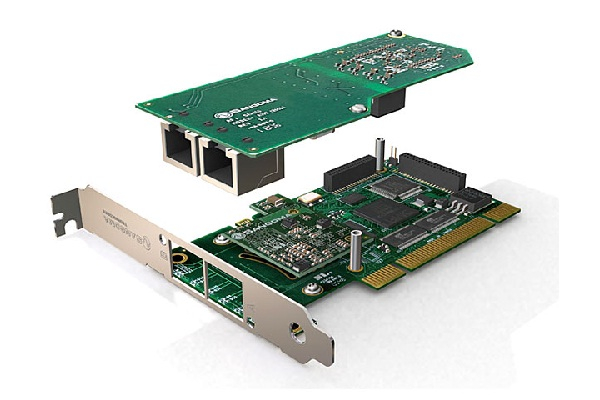

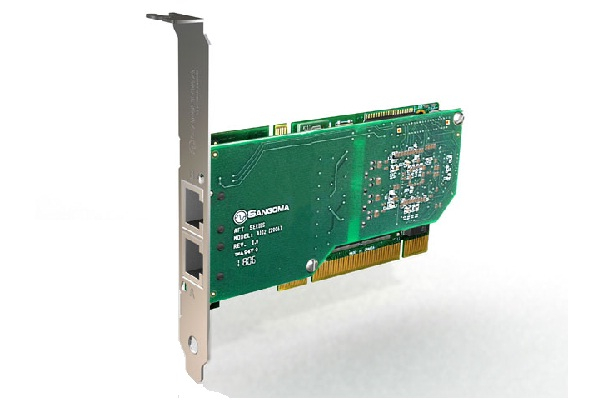

Sangoma card A102 (2E1 PCIx)
-
A102 Dual Voice and Data Board
Two-Port T1/E1/J1The Sangoma A102 Card: Two ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.
Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A102 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.
The A102 supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines.Technical Specifications
- Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
- Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
- Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
- All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
- Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
- Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
- Autosense compatibility with 5 V and 3.3 V PCI busses
- Line decoding: HDB3, AMI, B8ZS
- Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
- A102E and A102DE PCI Express: 1 Lane PCI Express bus
- Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
- Temperature range: 0 – 50 °C
- 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
- Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
- Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
- T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
- Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
- Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
- WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
- WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25
Operating Systems
- Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
- Linux (all versions, releases and distributions from 1.0 up)
Warranty: Lifetime warranty on parts and labour.
Production Quality: ISO 9002
-
- PRI ports2 E1/T1 ports with a single PCI interface optimized for high performance voice and data applications
- Hardware Echo cancelationNO incluido. NO puede añadirse. Debe adquirir el modelo A102DE con Eco Canceller.
- Slot type 1 PCI |32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
- VoltageDetección automática de 5 V y 3,3 V PCI buses
-
- OthersHow_to_Reduce_Asterisk_System_Loads.pdf
- Quick start guideINSTALL_windows.pdf
- Datasheeta102.pdf
- Datasheeta102_ES.pdf
- DatasheetSangoma_Digital_Series.pdf
