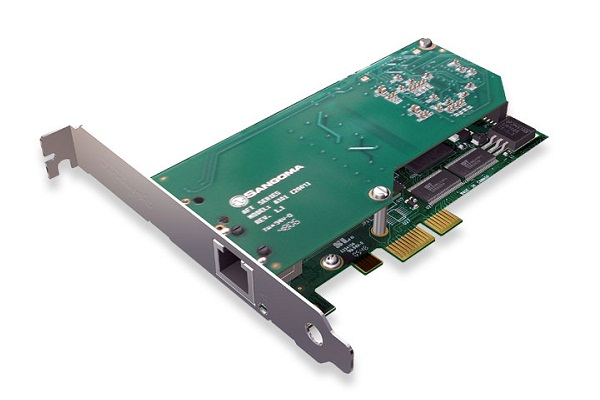

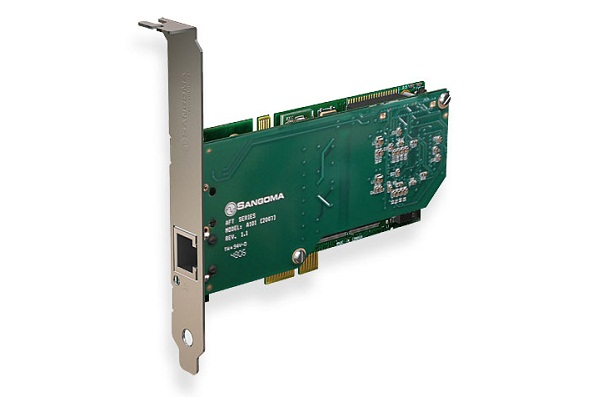

Sangoma card A101E (1E1 PCI Express)
-
Sangoma A101 1E1 PCI Express (A101E)
The Sangoma A101 card is a single port T1/E1/J1 card to Voice and Data. Like all cards in the Sangoma Advanced Flexible Telecommunications product line, the Sangoma A101 is equipped with "crash proof", field upgradeable firmware.
Technical Specifications
- One T1/E1 port with optimum PCI-Express interface for high performance voice and data applications
- Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
- All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
- Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
- Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
- Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
- Autosense compatibility with 5 V and 3.3 V PCI busses
- Line decoding: HDB3, AMI, B8ZS
- Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible with Japan's J1
- A101DE PCI Express: 1 Lane PCI Express bus
- Maximum operational power For PCI Express: 2.5 W (0.76 A @ 3.3 V) Temperature range: 0 – 50 °C
- 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
- Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
- Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
- T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
- Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
- Use raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
- WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
- WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25
Operating Systems
- Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
- Linux (all versions, releases and distributions from 1.0 up)
Diagnostic Tools: WANPIPEMON, SNMP, system logs
Warrant: Lifetime warranty on parts and labour.
Production Quality: ISO 9002
-
- PRI ports1 E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
- Hardware Echo cancelation NOT
- Slot type 1 PCI Express |32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention | Maximum operational power for PCI Express: 2.5 W (0.76 A @ 3.3 V)
-
- DatasheetSangoma_A101_digital_EN.pdf
- DatasheetSangoma_A101_digital_ES.pdf
- DatasheetSangoma_A101_digital.pdf
