Avanzada 7 code: 0020120050005
Manufacturer SKU: A500RA
- Producto descatalogado

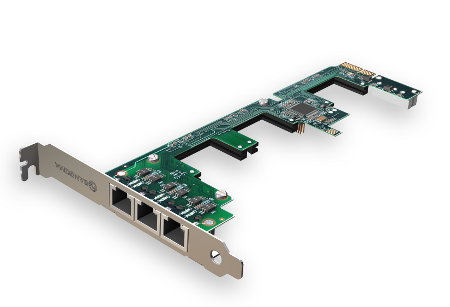

Additional Remora card to your existing A500
-
Adding an additional Remora card to your existing A500 allows you to add an additional 6 BRI ports, by installing one to three BRI modules.

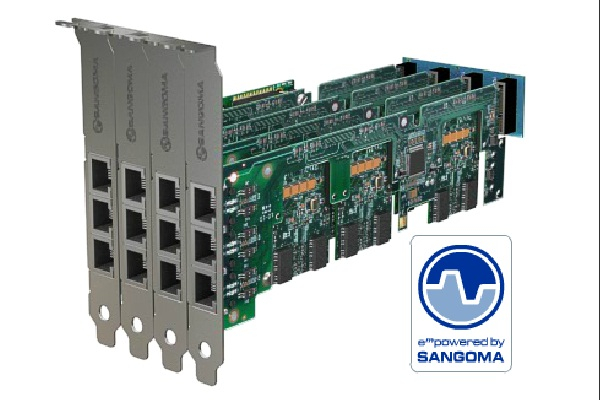

Each A500 can support up to 4 cards, including the base PCI card, for a total of 12 available ports.
This card connects to your existing A500 through the use of an external bus connector, which attaches to the rear of the card. It is therefore recommended that you install these cards next to each other in the chassis.
A500 BRI Card Series Version Interface Digital Signal Processor A500 Series PCI N/A A500D Series PCI Hardware echo canceller A500E Series PCI Express N/A A500DE Series PCI Express Hardware echo canceller NOTE: When ordering this card to add to your existing A500, please ensure you select the right bus connector for the total number of cards, including the base PCI card, you expect to install in your system. For example, if you plan on having 12 ports in total, you will need the "2 Card Bus Connector", or for 24 ports, you will need the "4 Card Bus Connector".
-
- Puertos BRI6 BRI (3 slots para módulos A500 de 2 BRI)
- Slot typeBackplane trasero A500 (2,3 y 4 rémoras)
- Compatible modulesMódulos A500 2BRI
-
- User manualA500_Manual_Web.pdf
- Datasheeta500.pdf
- Datasheeta500_EN.pdf
