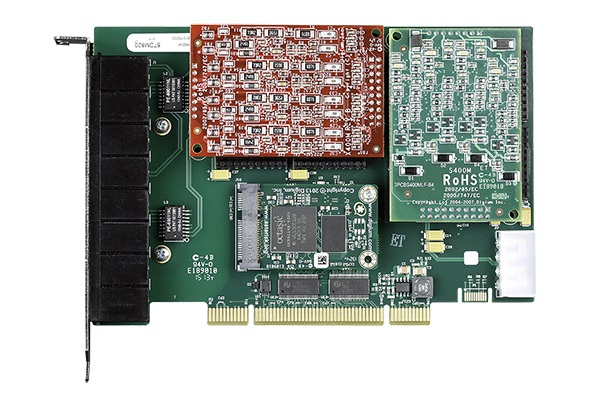

Analog Telephony Cards 8-Port, PCI
-
The A8 Series of analog cards supports up to eight (8) connections per card in your Asterisk system. Using Digium's advanced quad-port interface modules, A8 Series cards can scale from one (1) to eight (8) ports.
The modular nature of the cards allows you to mix and match between line (FXO) and station (FXS) interfaces, giving you exactly the ports you need. The A8 Series cards are available in half-length PCI and PCI Express form factors.
Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework. Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty
Applications
- Connect Asterisk-based systems to analog phone lines
- Connect analog PBX systmes to VoIP services
- Channel bank replacement/alternative
- Gateway termination to analog telephones/lines
- Suitable for Small and Medium Busiess (SMB) applications
Specifications
- One (1) - eight (8) analog ports
- PCI bus architectures
- Combine line (FXO) and station (FXS) modules
- Accepts up to two (2) quad-port modules or up to 4 single-port modules
- Optional DSP -based carrier grade echo cancellation module
- 32-bit 33MHz
- Loop Start or Kewl Start Signaling
- Temperature: 0° to 50° C
- Digium patented VoiceBus™ technology for better audio
- 30-day 100% satisfaction money back guarantee
- 5-year warranty
- With Asterisk - DAHDI 2.8 or later required
Modules
- X100
- S100
- VPM032
-
- FXO portsFXO is an interface that connects to a trunk line (X100M/X400M)
- FXS portsFXS is an interface that connects to a device-station (S100M/S400M).
- Hardware Echo cancelationVPM032 (Up to 32 channels): Compatible with A4 & A8 cards
- Slot typePCI bus
- Compatible modulesUp to 2 x 4-ports modules or 4 x 1-port modules.
- Additional featuresA8 Series analog cards are available in low profile
-
