Sangoma card A200 Base+remora PCI-e
-
SANGOMA A200: 2-24 Port Expandable Analog Voice Card

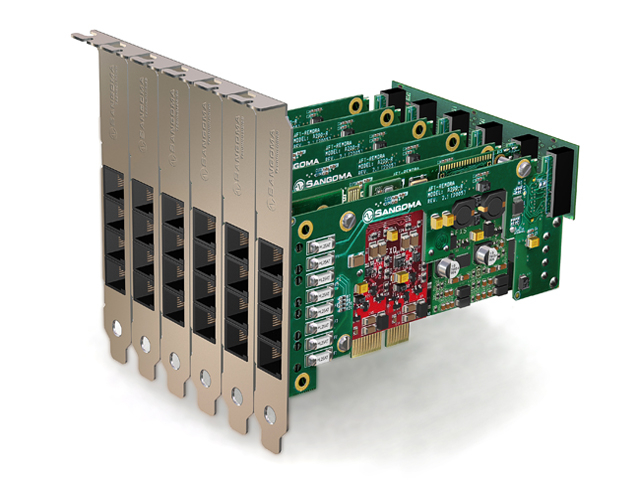

The A200 Series of Analog Voice Cards deliver superior audio quality in a compact 2U card that expands from two to twenty-four ports using a single interface slot.

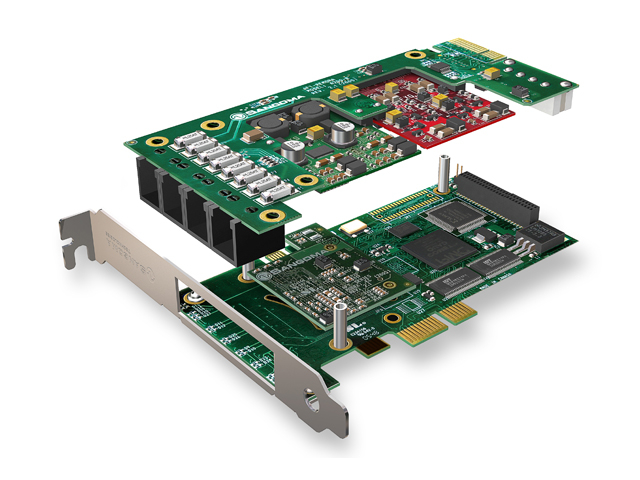

To reach this configuration, simply add additional Remora™ cards to any base card in the A200 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.
Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.
Technical Specifications
- From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required
- Support for the Asterisk®, FreeSWITCH®, Yate™, CallWeaver™, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications
- Single synchronous PCI and PCI Express interface for all 24 FXO/FXS ports
- Four RJ11 ports per Remora™ card
- Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis
- Short 2U compatible mounting clips available for installation in 2U rack-mount servers
- 32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention
- Autosense compatibility with 5 V and 3.3 V PCI busses
- Fully PCI 2.2 and PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
- Shipped with standard RJ11-terminated cables
Get the Fax on Sangoma Hardware
- With Sangoma, there is no need for a separate analog line to run your fax machine
- Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
- Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines
-
- FXO portsFrom 2 to 24 ports, mixing FXO and FXS supported.
- FXS portsFrom 2 to 24 ports, mixing FXO and FXS supported.
- Hardware Echo cancelationNO TIENE - NO PUEDE AÑADIRSE CON MODULOS
- Slot typePCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
- Compatible modulesMódulo A200O (FXO-2 supports two FXO lines) | Módulo A200S (FXS-2 supports two FXS lines)
-
- Datasheeta200_datasheet.pdf
- Datasheeta200_datasheet_ES.pdf
- Quick start guidea200_manual_installation.pdf
- Quick start guideINSTALL_windows.pdf
- OthersHow_to_Reduce_Asterisk_System_Loads.pdf
