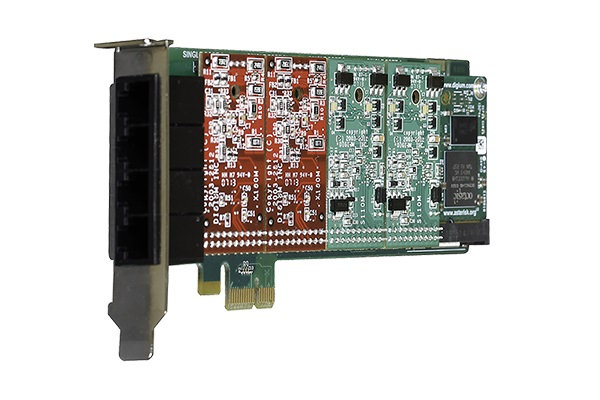

Digium A4B: Analog Telephony Cards 4-Port PCIexpress

The A4 Series of analog cards supports up to four (4) connections per card in your Asterisk system. Using Digium's single-port interface modules, A4 series cards can scale from one (1) to four (4) ports.

The modular nature of the cards allows you to mix and match between line (FXO) and station (FXS) interfaces, giving you the exact port configuration you need. Digium A4 Series analog cards are available in low profile, half-length PCI and PCI Express form factors.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework. Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty.

(Optional accesory low profile bracket)

Applications

• Connect Asterisk-based systems to analog phone lines
• Connect analog PBX systems to VoIP services
• Channel Bank Replacement / Alternative
• Gateway Termination to analog telephones/lines
• Suitable for Small Office/Home Office (SOHO) and Small and Medium Business (SMB) applications

Specifications

About Digium

Profile

Digium®, Inc., the Asterisk® Company, created and is the innovative force behind Asterisk, the most widely used open source telephony software. Since its founding in 1999 by Mark Spencer, Digium has become the open source alternative to proprietary communication providers, with offerings that cost as much as 80 percent less. Digium offers Asterisk software free to the open source community and offers Switchvox, Digium's Unified Communications solution to power a broad family of products for small, medium and large businesses. The company's product line includes a wide range of telephony hardware and software to enable resellers and customers to implement turnkey VoIP systems or to design their own custom communications solutions. At Digium, we're changing the way businesses communicate.

About Asterisk

Asterisk is the world's most popular open source telephony project. Under development since 1999, Asterisk is free, open source software that turns an ordinary computer into a feature-rich voice communications server. Asterisk makes it simple to create and deploy a wide range of telephony applications and services.

Code for Asterisk, originally written by founder and CTO, Mark Spencer of Digium, Inc., has been contributed from open source software engineers around the world. Currently boasting over two million users, Asterisk supports a wide range of TDM protocols for the handling and transmission of voice over traditional telephony interfaces, featuring VoIP packet protocols such as SIP and IAX among others. It supports U.S. and European standard signaling types used in business phone systems, allowing it to bridge between next-generation voice-data integrated networks and existing infrastructure.

The Digium cards in the TE series are high performance, cost effective, with digital telephone interfaces that support the T1 and E1 environments. The environments are selectable on a base ny card or by port. This characteristic allows the translation of the signaling between the equipment T1 and E1, and allows to connect banks of economic channels T1 with circuits E1.

Sometimes it may happen that your IP communications systemn is echoed, this can happen as a result of the waiting times that a VoIP system often has, unlike an analog system. As a result, your conversation may suffer an echo.

Although many devices already incorporate the echo canceller, Digium offers the Digium High Performance Echo Cancellation (HPEC) hardware. Echo cancellation hardware is also advantageous when handling large volumes of calls or high numbers of channels that would otherwise strain the CPU which would result in poor audio potential quality. Here are some of its features:

1. Octasic based on DSP (all modules)
2. 128 ms (1024 taps) of Cancellation of Echo through all the channels
3. G.168 of Quality of AT & T certified number that complies with algorithm
4. Non-linear Dynamic processor
5. Noise comfort generator
6. Automatic Row Search
7. Cancel Multiple Reflections
8. Double dialogue detection

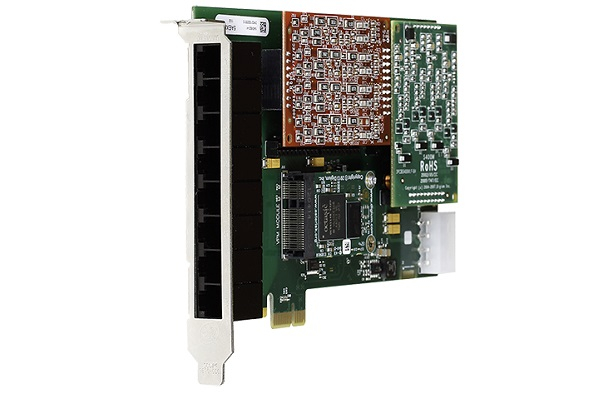

The A8 Series of analog cards supports up to eight (8) connections per card in your Asterisk system. Using Digium's advanced quad-port interface modules, A8 Series cards can scale from one (1) to eight (8) ports.

The modular nature of the cards allows you to mix and match between line (FXO) and station (FXS) interfaces, giving you exactly the ports you need. The A8 Series cards are available in half-length PCI and PCI Express form factors.

Digium cards are compatible with all versions of Asterisk using the DAHDI driver framework. Asterisk and DAHDI are available for free from the Asterisk.org website. All cards include a five (5) year warranty

Applications

• Connect Asterisk-based systems to analog phone lines
• Connect analog PBX systmes to VoIP services
• Channel bank replacement/alternative
• Gateway termination to analog telephones/lines
• Suitable for Small and Medium Busiess (SMB) applications

Specifications

• One (1) - eight (8) analog ports
• PCI Express bus architectures
• Combine line (FXO) and station (FXS) modules
• Accepts up to two (2) quad-port modules or up to 4 single-port modules
• Optional DSP -based carrier grade echo cancellation module
• 32-bit 33MHz
• Loop Start or Kewl Start Signaling
• Temperature: 0° to 50° C
• Digium patented VoiceBus™ technology for better audio
• 30-day 100% satisfaction money back guarantee
• 5-year warranty
• With Asterisk - DAHDI 2.8 or later required

Modules

• X100
• S100
• VPM032

About Digium

Profile

Digium®, Inc., the Asterisk® Company, created and is the innovative force behind Asterisk, the most widely used open source telephony software. Since its founding in 1999 by Mark Spencer, Digium has become the open source alternative to proprietary communication providers, with offerings that cost as much as 80 percent less. Digium offers Asterisk software free to the open source community and offers Switchvox, Digium's Unified Communications solution to power a broad family of products for small, medium and large businesses. The company's product line includes a wide range of telephony hardware and software to enable resellers and customers to implement turnkey VoIP systems or to design their own custom communications solutions. At Digium, we're changing the way businesses communicate.

About Asterisk

Asterisk is the world's most popular open source telephony project. Under development since 1999, Asterisk is free, open source software that turns an ordinary computer into a feature-rich voice communications server. Asterisk makes it simple to create and deploy a wide range of telephony applications and services.

Code for Asterisk, originally written by founder and CTO, Mark Spencer of Digium, Inc., has been contributed from open source software engineers around the world. Currently boasting over two million users, Asterisk supports a wide range of TDM protocols for the handling and transmission of voice over traditional telephony interfaces, featuring VoIP packet protocols such as SIP and IAX among others. It supports U.S. and European standard signaling types used in business phone systems, allowing it to bridge between next-generation voice-data integrated networks and existing infrastructure.

The Digium cards in the TE series are high performance, cost effective, with digital telephone interfaces that support the T1 and E1 environments. The environments are selectable on a base ny card or by port. This characteristic allows the translation of the signaling between the equipment T1 and E1, and allows to connect banks of economic channels T1 with circuits E1.

Sometimes it may happen that your IP communications systemn is echoed, this can happen as a result of the waiting times that a VoIP system often has, unlike an analog system. As a result, your conversation may suffer an echo.

Although many devices already incorporate the echo canceller, Digium offers the Digium High Performance Echo Cancellation (HPEC) hardware. Echo cancellation hardware is also advantageous when handling large volumes of calls or high numbers of channels that would otherwise strain the CPU which would result in poor audio potential quality. Here are some of its features:

1. Octasic based on DSP (all modules)
2. 128 ms (1024 taps) of Cancellation of Echo through all the channels
3. G.168 of Quality of AT & T certified number that complies with algorithm
4. Non-linear Dynamic processor
5. Noise comfort generator
6. Automatic Row Search
7. Cancel Multiple Reflections
8. Double dialogue detection

Using Digium's Asterisk software and standard PC hardware, one can create a telephony environment that includes all of the sophisticated features of a high-end business telephone system.

Using an industry-standard bursting, bus-mastering interface chip that is found within millions of PC systems worldwide, and Digium VoiceBus™ technology, the AEX2400 eliminates the requirement for separate channel bank and T1 interface cards, with industry-leading performance and price. The quad trunk and quad station modules are interchangeable, allowing the creation of any combination of interfaces. The optional hardware echo cancellation module provides 1024 taps (128 milliseconds) of echo cancellation for superior voice quality on both trunk and station interfaces. Scaling of this solution is accomplished by adding additional AEX2400 interface cards.

About Digium

Profile

Digium®, Inc., the Asterisk® Company, created and is the innovative force behind Asterisk, the most widely used open source telephony software. Since its founding in 1999 by Mark Spencer, Digium has become the open source alternative to proprietary communication providers, with offerings that cost as much as 80 percent less. Digium offers Asterisk software free to the open source community and offers Switchvox, Digium's Unified Communications solution to power a broad family of products for small, medium and large businesses. The company's product line includes a wide range of telephony hardware and software to enable resellers and customers to implement turnkey VoIP systems or to design their own custom communications solutions. At Digium, we're changing the way businesses communicate.

About Asterisk

Asterisk is the world's most popular open source telephony project. Under development since 1999, Asterisk is free, open source software that turns an ordinary computer into a feature-rich voice communications server. Asterisk makes it simple to create and deploy a wide range of telephony applications and services.

Code for Asterisk, originally written by founder and CTO, Mark Spencer of Digium, Inc., has been contributed from open source software engineers around the world. Currently boasting over two million users, Asterisk supports a wide range of TDM protocols for the handling and transmission of voice over traditional telephony interfaces, featuring VoIP packet protocols such as SIP and IAX among others. It supports U.S. and European standard signaling types used in business phone systems, allowing it to bridge between next-generation voice-data integrated networks and existing infrastructure.

The Digium cards in the TE series are high performance, cost effective, with digital telephone interfaces that support the T1 and E1 environments. The environments are selectable on a base ny card or by port. This characteristic allows the translation of the signaling between the equipment T1 and E1, and allows to connect banks of economic channels T1 with circuits E1.

Sometimes it may happen that your IP communications systemn is echoed, this can happen as a result of the waiting times that a VoIP system often has, unlike an analog system. As a result, your conversation may suffer an echo.

Although many devices already incorporate the echo canceller, Digium offers the Digium High Performance Echo Cancellation (HPEC) hardware. Echo cancellation hardware is also advantageous when handling large volumes of calls or high numbers of channels that would otherwise strain the CPU which would result in poor audio potential quality. Here are some of its features:

1. Octasic based on DSP (all modules)
2. 128 ms (1024 taps) of Cancellation of Echo through all the channels
3. G.168 of Quality of AT & T certified number that complies with algorithm
4. Non-linear Dynamic processor
5. Noise comfort generator
6. Automatic Row Search
7. Cancel Multiple Reflections
8. Double dialogue detection

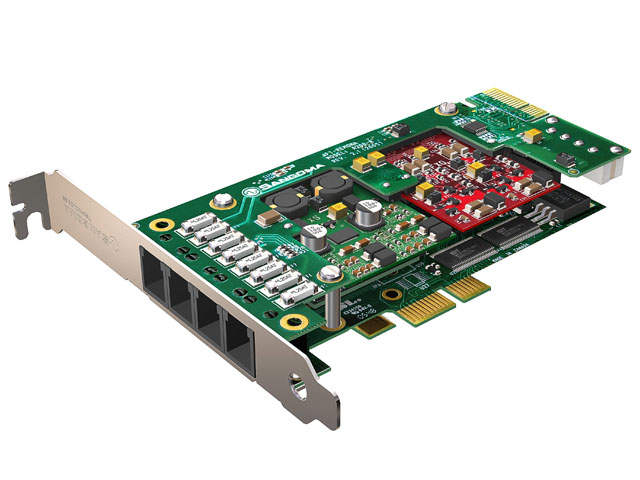

SANGOMA A200:  2-24 Port Expandable Analog Voice Card

The A200 Series of Analog Voice Cards deliver superior audio quality in a compact 2U card that expands from two to twenty-four ports using a single interface slot.

To reach this configuration, simply add additional Remora™ cards to any base card in the A200 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.

Technical Specifications

• From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required
• Support for the Asterisk®, FreeSWITCH®, Yate™, CallWeaver™, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications
• Single synchronous PCI and PCI Express interface for all 24 FXO/FXS ports
• Four RJ11 ports per Remora™ card
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis
• Short 2U compatible mounting clips available for installation in 2U rack-mount servers
• 32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Fully PCI 2.2 and PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
• Shipped with standard RJ11-terminated cables

Get the Fax on Sangoma Hardware

• With Sangoma, there is no need for a separate analog line to run your fax machine
• Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
• Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines

The A200 Series of Analog Voice Cards deliver superior audio quality in a compact 2U card that expands from two to twenty-four ports using a single interface slot.

For optimum echo-cancelled voice quality and enhancement choose the A200D Model with DSP daughterboard Hardware Echo Canceller. One DSP echo canceller on the A200D Base Card will support Telco-grade hardware echo cancellation on all channels up to the card's maximum configuration in 24 ports with no additional CPU load.

To reach this configuration, simply add additional Remora™ cards to any base card in the A200 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.

Technical Specifications

• From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required
• Support for the Asterisk®, FreeSWITCH®, Yate™, CallWeaver™, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications
• Single synchronous PCI and PCI Express interface for all 24 FXO/FXS ports
• Four RJ11 ports per Remora™ card
• Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis
• Short 2U compatible mounting clips available for installation in 2U rack-mount servers
• 32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Fully PCI 2.2 and PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
• Shipped with standard RJ11-terminated cables

Get the Fax on Sangoma Hardware

• With Sangoma, there is no need for a separate analog line to run your fax machine
• Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
• Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines

Optional DSP Echo Canceller Daughterboard on the A200D

• G.168-2002 echo cancellation in hardware
• 1024 taps/128ms tail per channel on all channel densities
• DTMF decoding and tone recognition
• Voice quality enhancement: music protection, acoustic echo control and adaptive noise reduction
• No CPU load as a result of echo cancellation
• Does not increase the physical size of the card, and no additional slot is required

Sangoma A400: 2 - 24 Port Expandable Analog Voice Cardon PCI-e

The A400 Series of analog voice cards deliver superior audio quality in a 2U card that expands from two to twenty-four ports using a single interface slot.

For optimum echo-cancelled voice quality and enhancement, choose the A400D Model with DSP Daughterboard Hardware Echo Canceller. One DSP echo canceller on the A400D Base Card will support Telco-grade hardware echo cancellation on all channels, up to the card's maximum configuration in 24 ports with no additional CPU load.

To reach this configuration, simply add additional Remora™ cards to any base card in the A400 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A400 and Remora system's architecture is shared with Sangoma's A101, A102, A104, A108 and A200 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as they become available.

Features

• From 2 to 24 ports supported, mixing FXO and FXS (interfaces as required).
• Support for the Asterisk®, Yate™, FreeSwitch™, CallWeaver, and OPAL™ PBX/IVR projects, as well as other open source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
• Single synchronous PCI interface for all 24 FXO/FXS ports.
• Connects to punch block using the included standard 12-line colour coded telephone cable. Or choose the optional Amphenol-Y cable that connects up to 24 lines to a telephone patch panel, sold separately.
• Dimensions: 2U Form factor: 290 mm x 55 mm for use in a 2U chassis.
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention.
• Autosense compatibility with 5 V and 3.3 V PCI busses.
• Fully PCI 2.2 compliant, compatible with all commercially available motherboards,  and proper sharing of PCI interrupts.
• Intelligent Hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes. Field upgradable so that new features can be added when they become available.
• Auto-tuning — no adjustments are necessary, just install and it works.
• G.168-2004 Compliant.
• Tone Transparency for DTMF detection.
• Handles Double Talk.
• Low memory and processing footprints relative to quality. For more than six channels, the A200D with Hardware Echo Canceller is recommended.

Architecture

• The A400 consists of a Remora daughterboard mounted on the AFT PCI card. The Remora™ card has six sockets, each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
• Up to one additional Remora daughterboards can be mounted in empty slot positions beside the A400 assembly and connected to the A400 base card by a backplane bus connector.
• Each 12-port A400 Remora card has a robust DB25 connection to an included standard 12-line, colour-coded telephone cable that is ready for hardwiring into a punch block at the PSTN connection.

Sangoma A400DE: 2 - 24 Port Expandable Analog Voice Card PCIe with E.C.

The A400 Series of analog voice cards deliver superior audio quality in a 2U card that expands from two to twenty-four ports using a single interface slot.

For optimum echo-cancelled voice quality and enhancement, choose the A400D Model with DSP Daughterboard Hardware Echo Canceller. One DSP echo canceller on the A400D Base Card will support Telco-grade hardware echo cancellation on all channels, up to the card's maximum configuration in 24 ports with no additional CPU load.

To reach this configuration, simply add additional Remora™ cards to any base card in the A400 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A400 and Remora™ system's architecture is shared with Sangoma's A101, A102, A104, A108 and A200 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as they become available.

Features

• From 2 to 24 ports supported, mixing FXO and FXS (interfaces as required).
• Support for the Asterisk®, Yate™, FreeSwitch™, CallWeaver, and OPAL™ PBX/IVR projects, as well as other open source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
• Single synchronous PCI interface for all 24 FXO/FXS ports.
• Connects to punch block using the included standard 12-line colour coded telephone cable. Or choose the optional Amphenol-Y cable that connects up to 24 lines to a telephone patch panel, sold separately.
• Dimensions: 2U Form factor: 290 mm x 55 mm for use in a 2U chassis.
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention.
• Autosense compatibility with 5 V and 3.3 V PCI busses.
• Fully PCI 2.2 compliant, compatible with all commercially available motherboards,  and proper sharing of PCI interrupts.
• Intelligent Hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes. Field upgradable so that new features can be added when they become available.
• Auto-tuning — no adjustments are necessary, just install and it works.
• G.168-2004 Compliant.
• Tone Transparency for DTMF detection.
• Handles Double Talk.
• Low memory and processing footprints relative to quality. For more than six channels, the A200D with Hardware Echo Canceller is recommended.

Architecture

• The A400 consists of a Remora™ daughterboard mounted on the AFT PCI card. The Remora™ card has six sockets, each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
• Up to one additional Remora™ daughterboards can be mounted in empty slot positions beside the A400 assembly and connected to the A400 base card by a backplane bus connector.
• Each 12-port A400 Remora™ card has a robust DB25 connection to an included standard 12-line, colour-coded telephone cable that is ready for hardwiring into a punch block at the PSTN connection.

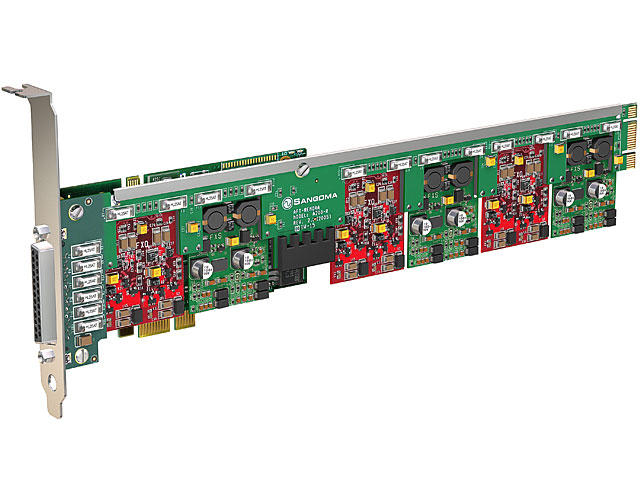

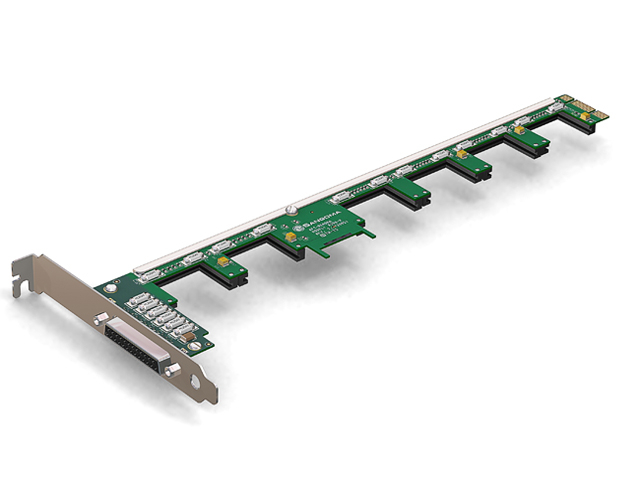

Sangoma Remora™ A400RA: Expandable Analog Voice Card up 24 Ports.

The A400 Series of analog voice cards deliver superior audio quality in a 2U card that expands from two to twenty-four ports using a single interface slot.

Add a additional Remora™ card to A400 and connect backplane. Ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A400 and Remora™ system's architecture is shared with Sangoma's A101, A102, A104, A108 and A200 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as they become available.

Features

• 12 ports supported, mixing FXO and FXS (interfaces as required).
• Support for the Asterisk®, Yate™, FreeSwitch™, CallWeaver, and OPAL™ PBX/IVR projects, as well as other open source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
• Connects to punch block using the included standard 12-line colour coded telephone cable. Or choose the optional Amphenol-Y cable that connects up to 24 lines to a telephone patch panel, sold separately.
• Dimensions: 2U Form factor: 290 mm x 55 mm for use in a 2U chassis.
• Auto-tuning — no adjustments are necessary, just install and it works.
• G.168-2004 Compliant.
• Tone Transparency for DTMF detection.
• Handles Double Talk.
• Low memory and processing footprints relative to quality. For more than six channels, the A200D with Hardware Echo Canceller is recommended.

Architecture

• The A400 consists of a Remora™ daughterboard mounted on the AFT PCI card. The Remora™ card has six sockets, each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
• Up to one additional Remora™ daughterboards can be mounted in empty slot positions beside the A400 assembly and connected to the A400 base card by a backplane bus connector.
• Each 12-port A400 Remora™ card has a robust DB25 connection to an included standard 12-line, colour-coded telephone cable that is ready for hardwiring into a punch block at the PSTN connection.
