Avanzada 7 code: 0020120050002
Manufacturer SKU: A500BRME
- Producto descatalogado

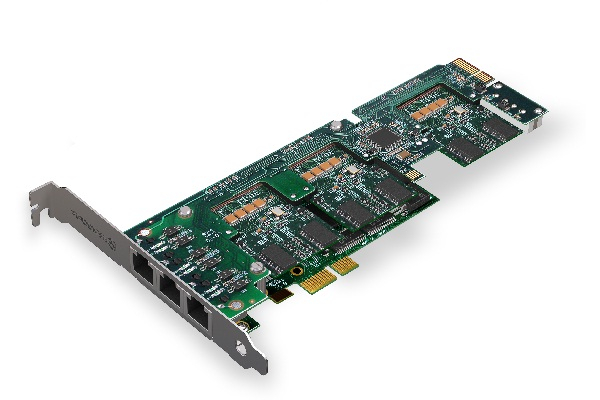

Sangoma card A500 Base+remora PCI-express
-

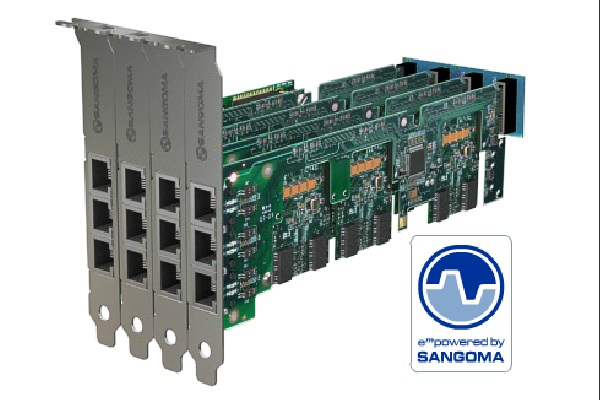

The Sangoma A500 S/T BRI interface card delivers superior audio quality and scalability. Expand from two to twenty-four ports of BRI
* without hardware echo cancellation.
A single PCI or PCI Express slot hosts the connection for up to 24 ports and ensures common synchronous clocking for all channels with no signaling issues. The card is 100% software configurable.

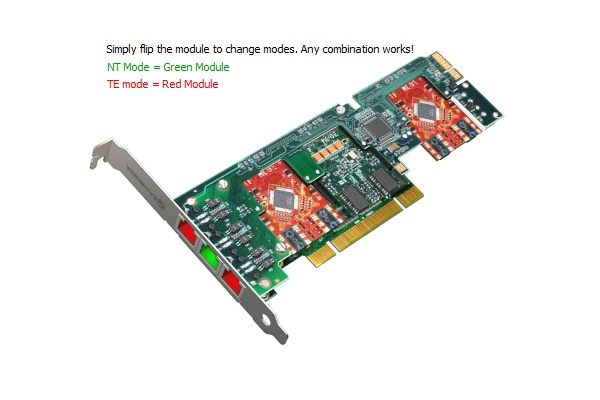

• From 2 to 24 ports are supported. Mix TE and NT modes, as required. Changing modes requires no jumpers — simply invert the colour-coded module
• Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
• Single synchronous PCI and PCI Express interface for all 24 BRI interfaces
• Six ports per RemoraTM card
• Dimensions: 2U Form factor: 187 mm x 55 mm for use in restricted chassis; includes high quality, tested 2 m 8-pin RJ45 port splitter cables and short 2U compatible mounting clips for installation in 2U rackmount servers
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
• Autosense compatibility with 5 V and 3.3 V PCI busses
-
- FXO ports0
- FXS ports0
- PRI ports0
- Puertos BRIHasta 6 (sin remoras adicionales)
- software Echo cancelationNo
- Hardware Echo cancelationNo
- Slot typePCI-Express
- Compatible modulesA500 2 BRI
- GSM ports0
-
- OthersHow_to_Reduce_Asterisk_System_Loads.pdf
- Quick start guideINSTALL_windows.pdf
- Datasheeta500.pdf
- Datasheeta500_EN.pdf
- User manualA500_Manual_Web.pdf
