Avanzada 7 code: 9100860120010
Manufacturer SKU: TG784n
- Producto descatalogado

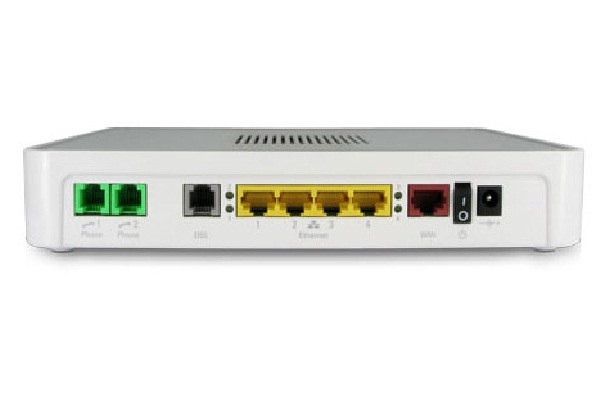

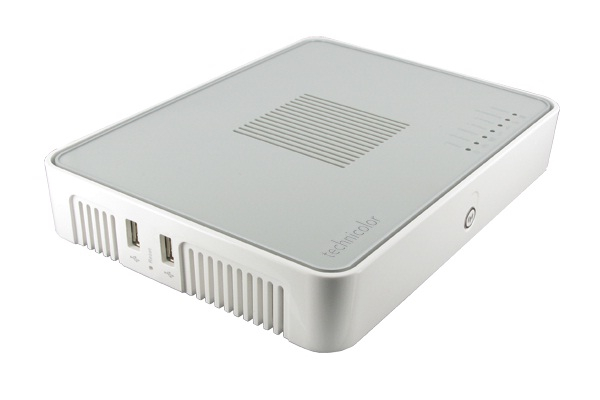

Gateway Technicolor triple-play TG784n (VoIP+WiFi)
-
Technicolor TG784n (VoIP+WiFi)
The Technicolor TG784n is a triple-play service gateway WAN and Wi-Fi. The Technicolor TG784n can be used in different deployment models, as it can handle multiple access technologies via the ADSL2+ interface or ETH WAN uplink port.
This service platform offers the latest 802.11n chipset for less power consumption with next generation home networking and is fully CoC v3 compliant.
- Integrated ADSL2+ modem
- 1 Fast Ethernet WAN port
- 4 Fast Ethernet ports to connect multiple devices, such as PCs, laptops, set top boxes...
- Wireless networking on-board: 802.11n
- 2 FXS ports for phone and/or fax
- Home entertainment ready
- Media sharing
- UPnP A/V and DLNA
- 2 USB 2.0 masters for hard disk, printer, 3G dongle...
- Remotely manageable
- TR-069, TR-104, TR-098, TR-111
- Built-in firewall
- ECO friendly Service Platform
-
- FXS ports2 FXS POTS ports
- FAX codecT.38
- WAN ports1 Ethernet WAN 10/100 Base-T
- Audio CodecCodecs: G.711, G.726, G.729, Wideband (G.722), T.38
- Puertos DLS1 RJ11 DSL line port | ADSL2+ compliance
- Ethernet ports4-port autosensing 10/100Base-T auto-MDI/ MDI-X Ethernet switch
- Wireless portsWi-Fi IEEE 802.11b/g/n access point
- USB2 USB 2.0 masters | Printer sharing | Content sharing (Samba/FAT) | USB 3G adapter support
- Additional featuresTR-069 CPE WAN Management Protocol | TR-104 voice service provisioning | TR-098 Internet Gateway Device Management | TR-111 home network device management | TR-140 storage service provisioning | TR-064 LAN side configuration |
- VoIP protocolsSignalling: SIP, MGCP (optional), H.323 (optional)
-
- Otherstechnicolor_mediaaccess-service-gateway.pdf
- DatasheetDS_Technicolor_TG784n-1.pdf
- Release Notestg784n_conformity.pdf
- User manualE-DOC-CTC-20090618-0008_v1.0_public.pdf
- FirmwareTG784n_843Y_gen.bin.zip
- FirmwareUpgradeWizard-V8005.zip
