Router Lancom 1781A (EU) VPN + load balancing

Description
Technical specs
Downloads

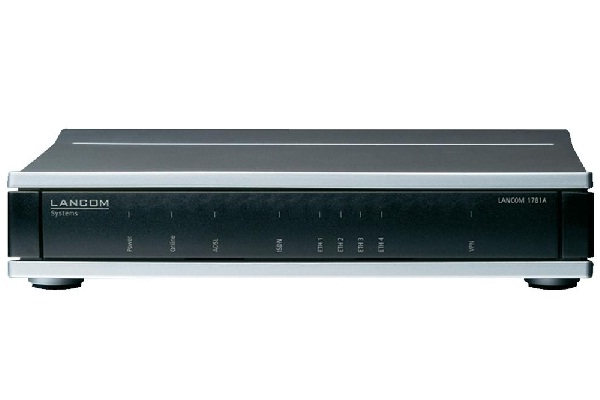

LANCOM 1781A

High-performance VPN router with integrated ADSL2+ modem for professional site connectivity

The professional VPN router LANCOM 1781A provides companies with secure Internet access and, thanks to the integrated ADSL2+ modem, it connects directly to a standard DSL line without additional hardware. With its extensive VPN capabilities and Gigabit Ethernet, the device provides secure, high-performance connectivity to branch offices and remote workers, and it supports a high-speed local network. The four ports of the integrated Gigabit Ethernet switch ensure maximum performance and are also energy-efficient as per IEEE 802.3az: If no data is transmitted over an interface, its power consumption shuts down automatically. The LANCOM 1781A supplies everything required of a modern enterprise network, such as comprehensive Quality-of-Service capabilities and an object-oriented firewall.
- Fast Internet access and professional networking for smaller companies and branch offices
- Integrated multimode ADSL2+ modem and energy-efficient Gigabit switch as per IEEE 802.3az
- VPN site connectivity with 5 simultaneous IPsec VPN channels (25 channels optional)
- Network virtualization with up to 16 virtual networks on one device (ARF)
- Stateful-inspection firewall with intrusion detection/denial-of-service protection
- High availability with optional 3G backup via USB (*only supported UMTS-USB modems)
- Puertos DLS1 ADSL2+ | PPPoE, PPPoA, IPoA, Multi-PPPoE, ML-PPP, PPTP (PAC or PNS) and IPoE (with or without DHCP), RIP-1, RIP-2, VLAN

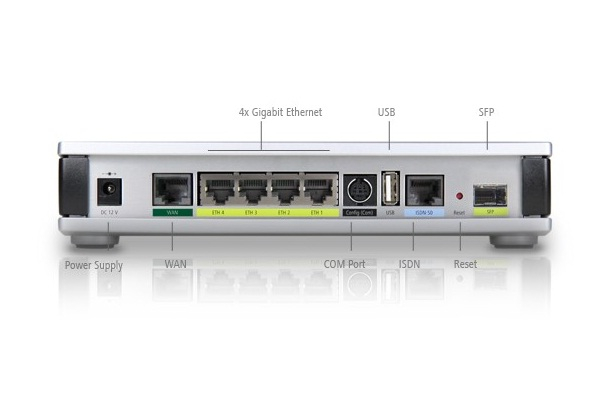

- Ethernet ports4 individual 10/100/1000 Mbps Ethernet ports; up to 3 ports can be switched as additional WAN ports with load balancing. Ethernet ports can be electrically disabled within LCOS configuration. The ports support energy saving according to IEEE 802.3az
- ISDN ports1 ISDN BRI port (S0 bus) |ISDN data or voice usage via internal ISDN interface
- Wireless portsNO
- Load balancingStatic and dynamic load balancing over up to 4 WAN connections. Channel bundling with Multilink PPP (if supported by network operator)
- VPN5 integrated/ 25 Optional |Backup of VPN connections across different hierarchy levels, Any VPN remote sites can be defined (the tunnel limit applies only to 5 active connections). Up to 25 VPN (VPN load balancing)
- USB1 USB 2.0 | Operation of an external UMTS/HSDPA USB card at the USB host port |A UMTS USB modem is not supplied. Supported UMTS USB modem at www.lancom.eu/umts-support
- Additional featuresStateful-inspection firewall with intrusion detection/denial-of-service protection | Network virtualization with up to 16 virtual networks on one device (ARF)
- Puertos UMTSA UMTS USB modem is not supplied. Supported UMTS USB modem at www.lancom.eu/umts-support
- Documentacion DesarrolloCE_LANCOM_1781A_20110701.pdf
- User manual1781A_EN.pdf
- Quick start guideLC-1781A-HW-QUICK-REFERENCE-EN.pdf
- DatasheetPublicSpotOption_EN.pdf
- DatasheetLANCOM_LC-OPTION-PUBLIC-SPOT-MANUAL-EN.pdf
- DatasheetLANCOM_Rackmount_EN.pdf
