Bytton DS (Dual SIM + WiFi)
Ref: BYT_LTE_DW

Bytton family is an intelligent services platform which provides high data transfer rates over LTE 4G/3G+ Networks.

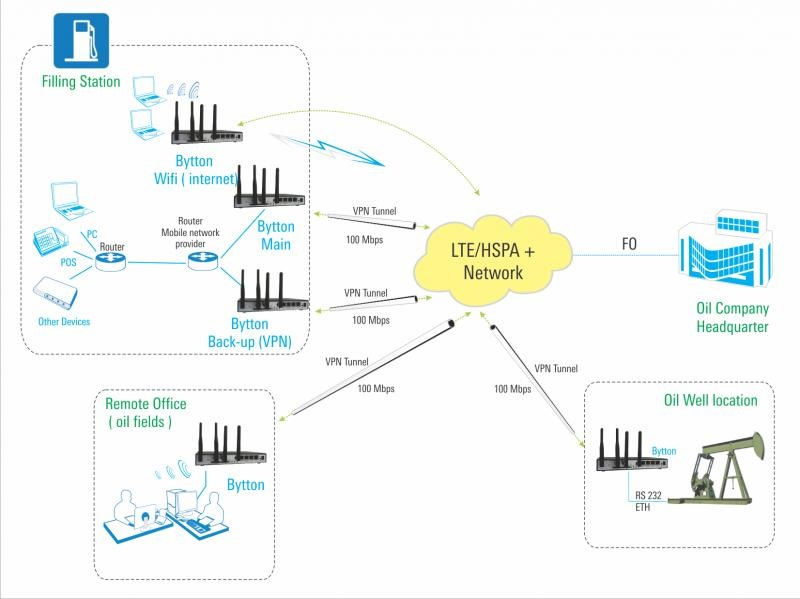

Suitable for mission critical applications such as multi facility corporate connectivity, professional backup and M2M applications:oil pipeline monitoring, backup routing for fiber optics, video surveillance, security applications.

Bytton LTE Intelligent Services Gateway includes a large range of communication interfaces and protocols including backward capability 4G, 3G+, 3G & 2.5G network coverage, WAN, WiFi and RS232/RS485

SMS Read / Send
You can send and receive SMS messages from the Web interface, using the modem module and the one or two SIM cards used on the equipment

Up to 100 Mbps downlink and up to 50 Mbps on the uplink
Cross network capabilities - Dual SIM
Up to 3 redundant WAN connections: 2 FastEthernet WAN with 1 Wireless WAN
Remote monitoring: iBytMonitor application
Robust metal casing for extreme environment conditions
Support multiple VLAN configuration, multiple encryption protocols
Diversity Antenna for LTE and WiFi

BENEFITS:

Dynamic and backup routing
Backward compatibility from LTE to HSPA+
Secure communications through embedded VPN tunnels: IPSec, PPTP, GRE, Open VPN
Over 20 x IPsec tunnels
Serial devices can be connected (RS232/RS485)
Traffic marking and shaping: Layer 2, Layer 3 and Application Layer

Technology Brief

Product name	Topex Bytton LTE
Product Category	Wireless routers
Technologies	GSM, GPRS, EDGE, UMTS, HSDPA, HSUPA, HSPA+, LTE, Ethernet, USB, RS232 and/or RS485 (optional), VPN, FXS (optional), WiFi
Radio Frequencies	LTE : 800/900/1800/2100/2600 MHz or 7000 MHz HSPA: 850/900/1900/2100 MHz HSPA
Protocols	RIP, OSPF, GRE, PPTP, Open VPN, IP Sec, DES, 3 DES, AES, NAT, PAT, DHCP, DNS, DDNS, PAP, CHAP, VRRP, NTP, WAP, WPA 2, HTTPS, CLI, SSM, Telnet

- Puertos DLSNO Dispone
- Wireless portsIEEE 802.11 b/g/n | Operation modes Access Point, Station, Bridge Security WEP - 64 or 128 bits WPA, WPA2 - PSK or PSK2 crypto TKIP, AES Connection modes Infrastructure, Ad- Hoc MAC filtering
- Load balancingNO. 2 slots for the SIM cards for availability automatically switches to the second mobile data provider.
- VPNVPN tunnels: IPSec, PPTP, GRE, Open VPN
- Additional featuresDownlink/Uplink: LTE (100Mbps/50Mbps) | DC-HSPA (42Mbps/5.76 Mbps) | HSPA+ (21Mbps/5.76Mbps) | HSUPA/HSDPA (7.2Mbps/5.76 Mbps) | HSDPA (3.6 Mbps/384 Kbps)
- FXS portsNO disponible
- LAN ports3 x 10/100 Base -T ports (RJ45 connectors) Integrated switch with management and Layer 2 QoS according with 802.1p, 802.1q
- WAN ports1 x 10/100 Base-T port (Rj45 connector) a second port from LAN ports can be configured as WAN 2
- GSM portsLTE [800/900/1800/2100/2600 MHz(EMEA) or LTE 7000 MHz(NA)]
- DatasheetTopex_Bytton_LTE_.pdf
- OthersRSTopexByttonLTE-IntelligentServicesGateway.pps
- User manualBytton-user-manual_Optim_V1.pdf
