Alphatech-Fermax VoIP Video Door Phone IPDP Cityline

Description
Technical specs
Downloads

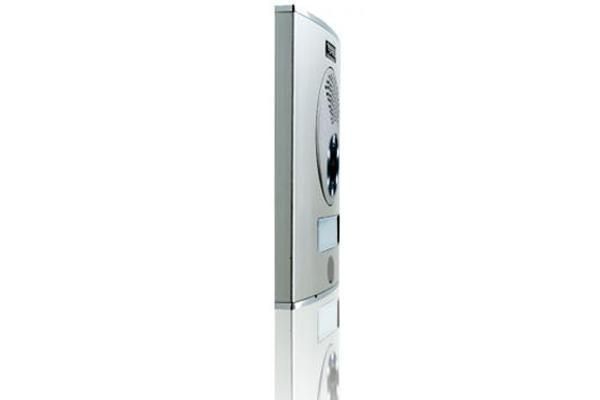

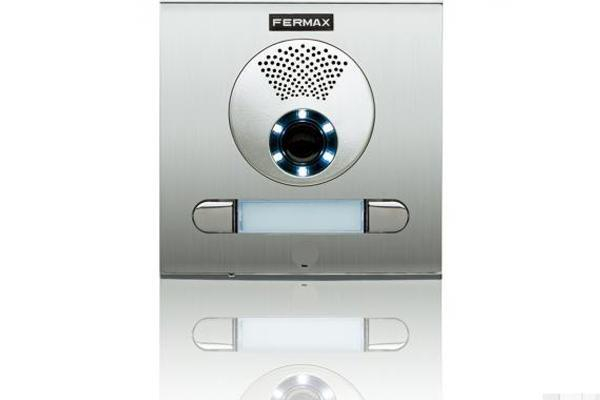

VoIP Video Door Phone IPDP Cityline - Continuous Profile with a keypad
- IP (SIP) modular system with built-in colour camera
- P2P or SIP proxy mode (PBX network system)
- 1-64 pushbuttons
- Optional keypad module
- Compatible with VaxVoIP SIP SDK (Software Development Kit)
- Tested on Alcatel-Lucent OmniPCX Office R8.0
- Tested on 3CX SW PBX v9 (Windows based, video support) - free
- Tested on X-Lite SW IP video phone - free
- Tested on Nexus One android mobile phone
- Tested on a virtual, hosted SW PBX www.pbxes.org - free
- Tested on various types of available HW PBXes (CCM, NEC, Panasonic, Samsung, etc.)
- Tested on various types of HW VoIP video phones (e.g. Grandstream, Snom)
- Two 25-digit numbers on each pushbutton
- Waterproof pushbuttons with impregnation IP66, gold plated contacts
- Pushbuttons are manufactured in zamak and a natural chromed finish
- Panel is made of highly weather resistant anodized aluminium
- Easy installation for outdoor or indoor use
- Pernament card slot lighting
- Card slot lighting by low consumption, max. duration LEDs
- 2 relays for two independent electrical locks
- Codelock feature by using pushbuttons
- Up to six codelock numerical passwords (2-6 digits)
- Basic panel set is supplied in 2 pushbutton version with colour camera and surface mount installation box (ref. 1CP201 + ref. F7061)
- Basic panel ref. 1CP201 contains the first expansion module for 8 pushbuttons
- Power supply 12V or PoE (Power over Ethernet)
- PoE allows using a low consumption el. lock
- PopUp SW for on-line monitoring of door entrance, possiblity to open el. locks via PC
- WEB based programming
- Integrated heating of the electronic circuit board
- OS Linux 2.6
- USB connection of integrated camera – USB Guest 1.1
- Software GSPCA for video transmission to web browser in PC – W3CAM (J-PEG, RTSP stream) and stream H.263
- Flush or surface mounting
- Automatic illumination for camera by white LEDs
- More info? Please write us.
- CameraSI (Color)
- Numbers of buttons1 botón doble
- AntivandalNo, Resistente al agua (IP66)
- SIPsi
- Analogno
- Relay number2
- User manualFermax_IP_DP_manual_V31_en_v3.pdf
- DatasheetFermax IP DP datasheet.pdf
- OthersGrandstream GXV3140 - IP DoorPhone settings.pdf
- Documentacion DesarrolloUDVGuard_Android_0_5.pdf
