Fanvil Videoportero i18S-1bot
-

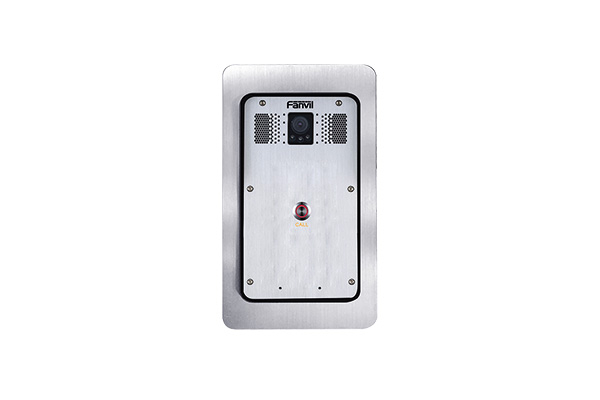

Fanvil i18S SIP Video Door Phone
The Fanvil i18S is a SIP video door phone with anti vandalism system. It is combined with security, intercom, transmission and access control functions with HD audio.
The i18S is designed for outdoor use with robust performance and an IP65 / IK10 level of protection for harsh outdoor environments.
It incorporates an HD camera with backlight compensation function and night vision.
Key features
- 2 SIP
- Camera HD: 130W CMOS / IR-CUT, night vision
- SIP and compatible with major IPPBX/IMS platforms
- All in one (Access Control, intercom and Broadcasting)
- IP65 e IK10 protection
- HD audio with buitl-in 3W speaker and AEC; adaptation for noisy environments
- Supports wide temperature range from -40ºC to +70ºC
- 1DSS button
- 5 light indicators
- 1 Relay: MAX DC30V / 1A, AC125V / 0.5A
- 1 x RJ45 10/100 Mbps
-
- Relay number1 relay with NC/NO contacts (DC 30V/1A, AC 125V/0.5A)
- Numbers of buttons1 DSS
- CameraCamera HD: 130W CMOS / IR-CUT, night vision
- SIP accounts2 SIP lines
- VoIP protocols2.0, RTP, RTSP, SRTP, HTTPS
- Audio CodecG.711a/u, G.723.1, G.726-32K, G.729AB, G.722
- Hardware Echo cancelationAcoustic Echo Canceller (AEC) with 96ms tail-length
- Image Sensor2 Megapixel CMOS sensor
- ManagedManageable via web portal, TR-069, and auto-provisioning
- Additional featuresHD camera with night vision, IP65/IK10 protection, PoE, and outdoor design (-40°C to 70°C)
-
- DatasheetFanvil_i18S_V1_Datasheet.pdf
