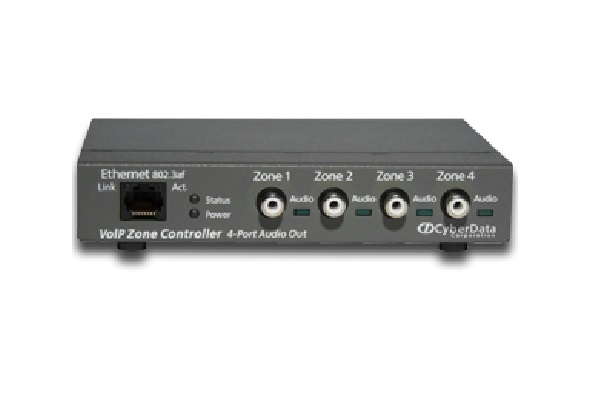

Cyberdata VoIP zone controller 4 puertos V3
-
Cyberdata Zone Controller 4 puertos - 011171

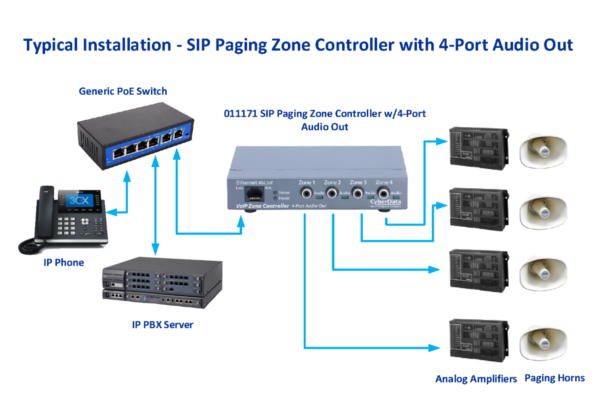

The CyberData SIP Paging Zone Controller with 4-Port Audio Out anables access to existing paging speakers through a VoIP phone system. The interface is designed to use a standard paging amplifier with 10K ohm audio inputs and supports paging to up to 15 zone groups from a VoIP phone.
- Can launch one of 9 uploadable audio messages
- Delayed paging
- Loud Ringer - second SIP extension
- 4 Paging zones
- 15 Paging zone groups
- Page all
- Web-based configuration
- Web-based firmware upgradeable
- Connector for external power supply
- Small footprint
- Rack mountable
-
- VoIP protocolsSIP RFC 3261 Compatible
- Ethernet Ports10/100 Mbps
- Power over Ethernet (PoE)PoE 802.3af or 48VDC
- Audio CodecG711
- Additional featuresOutput Level +2dBm nominal | Total Harmonic Distortion 0.5% maximum |Regulatory Compliance FCC Class A, UL 60950
-
- Guia de Administracion011171_930445D_V3_Zone_Controller_Installation_QuickRef.pdf
- Archivos de Idiomas011171_930446E_V3_Zone_Controller_Operation_Guide.pdf
- Quick start guide011171_930447D_V3_Zone_Controller_Quick_Start_Guide.pdf
- Documentacion Desarrollo930272E_VoIP_Intercom_3CX_Server_Setup_Guide_v9.pdf
- Documentacion DesarrolloAsterisk_Server_Settings.pdf
- Documentacion Desarrollo930508A_011061B_VoIP_PagingAmplifier_Elastix_Server_Setup_Guide.pdf
- Documentacion Desarrollo930289A_Epygi_Server_VoIP_Intercom_Setup_Guide.pdf
- Datasheet011171_SIP_Paging_Zone_Controller.pdf
