Manufacturer: ALPHATECH
Avanzada 7 code: 0060660560013
Manufacturer SKU: 220102
Unidades en la cesta: 0

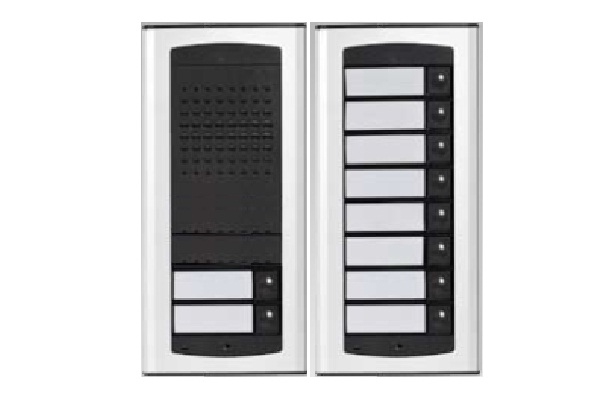

SIP Alphatech IPDP Bell Doorphone (2 buttons)
-
IP Bell - VoIP SIP door entry phone station
- talk to callers and then open the door
- SIP Protocol, works with most modern IP phone systems
- robust door entry phone station which can be installed both outdoors and indoors
- the front plate in made in anodised extruded alluminium and ABS plastic
- name holders are back lit in original blue colour for easy identification even in poor lighting conditions
- 30mm thin profile
- IP44 rating
- surface mounted therefore extremely easy to install
- options for single button which places a call to one number/group or two buttons which call different numbers/groups
- two internal relays controlled by DTMF tones to control door openers or lights
- Power over Ethernet (PoE)
- audio PC PopUp SW app for Peer to Peer mode
- integrated codelock feature via pushbuttons
- call forwarding to second phone number , e.g. a cell (mobile) phone
- each pushbutton has got memory for 2 numbers
- Peer to Peer or SIP Proxy (IP PBX) mode
- HTTP management
-
compatible IP phone systems:
- 3CX
- Aastra NeXspan
- Alcatel OmniPCX
- Asterisk
- Avaya
- Cisco CallManager
- Gigaset pro
- IP Cortex
- Karel IPv50
- Mitel
- Nortel
- Panasonic
- Quadro Epygi
- SARK
- Snom ONE
- SWYX
- tested with Snom, Grandstream and Polycom IP phones
-
tested with Vippie video softphone application for mobile devices
- iOS (iPhone/iPad), Android compatible
- it is necessary to use correct dtmf method - rfc2833 generated dtmf
-
- CameraNO (Existe otro modelo video+audio)
- Numbers of buttonswith two pushbuttons
- AntivandalNO aunque reforzado en aluminio. Indice de protección IP44.
- SIP Session Initiation Protocol (SIP RFC3261)
- Relay number 2 relay control
-
- OthersGrandstream GXV3140 - IP DoorPhone settings.pdf
- User manualIP_Bell_manual_V10_ENG.pdf
- DatasheetDoor_Phone_IP_Bell_datasheet.pdf
- Documentacion DesarrolloUDVGuard_Android_0_5.pdf
- Firmwareipudvpopup(1.39).zip
