Cyberdata SIP paging adapter

Manufacturer: CYBERDATA

Avanzada 7 code: 0060660200033

Manufacturer SKU: 011233

Unidades en la cesta: 0

Add to cart
  • Cyberdata SIP Paging Adapter - 011233

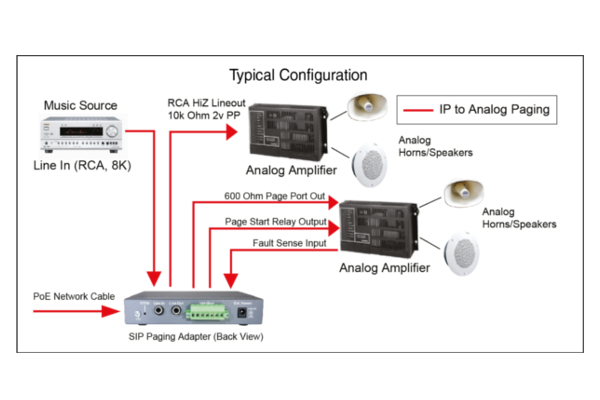

    The SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension one passes audio through to the analog output spoken from the caller's handset. When called, SIP extension two plays a bell audio that can be used as a right ringer when configured in a night ring group.

    CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

    • Compatible with most analog amplifiers in the market
    • Supports audio prioritization, including 10 multicast paging groups
    • 9 user - uploadable page messages
    • Supports delayed pages with call buffering
    • Support for security code to prevent unwanted SIP calls
    • Can receive pages directly from Poly phones as well as other devices that can send standard multicast
    • Sense input capable of generating events or SIP calls
    • Built-in diagnostics
    • Line-in for background music

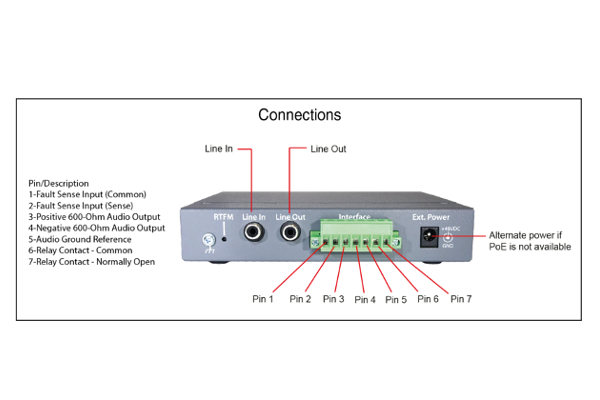

    • Line-out connector
    • Remote amp fault sensor
    • Audio controlled relay / remote amplifier enable
    • DMTF entries for analog paging zones
    • Rack mountable
    • HTTP command interface
    • HTTPS of HTTP web based configuration. HTTPS is enabled by default
    • Autoprovisioning via HTTPS, HTTP or TFTP
    • Configurable event generation for device health and status monitoring
    • TLS 1.2 enhanced security for IP Endpoints in a local or cloud-based environment
    • 802.11q VLAN tagging
    • Support for cisco SRST resiliency
    • VoIP protocolsSIP RFC 3261 compatible
    • Ethernet Ports10/100 Mbps
    • PoEPoE 802.3af or 48VDC
    • Supported codecsG711, A-law and µ-law, G.722
