Alphatech Analog Door Phone SLIM SDP 04 (4 Button)

Manufacturer: ALPHATECH

Avanzada 7 code: 0060660560009

Manufacturer SKU: 211104

Unidades en la cesta: 0

Add to cart
  • Alphatech Door Phone SLIM SDP 04
    can be connected to PBX FXS or analog PSTN line.

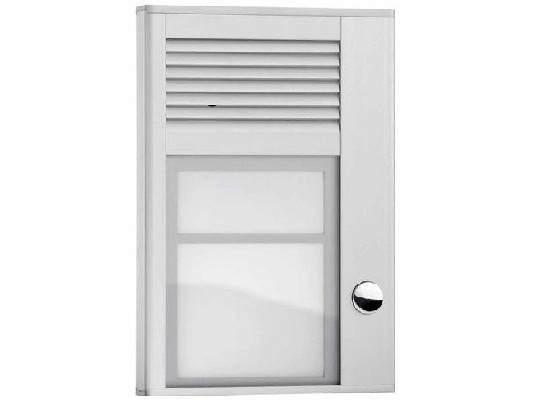

    Door Phone SLIM is easy to install outdoor and indoor. It offers 3 models with 1, 2 or 4 buttons.

    Door phone SLIM is provided with a relay for lock control, a blue backlit case and a heating system.

    The USB connection and the supplied programming interface for Windows make this door phone easy to configure.


    • PBX FXS / Analog PSTN line connection
    • 1 /2 / 4 buttons
    • PC configuration via USB local connection
    • Remote programming by DTMF code
    • 1 relays door control
    • Blue backlit case
    • Heating system
    • Flash / Pause / Tones programmable
    • SLIM 2 & 4 buttons can be programmed with 3 combinations (day, night, night/day) of 6 digits to control the lock
    • Day & night service management
    • Compatible with all PBXs
    • Strong casing


    • Door Phone SLIM can be programmed remotely by DTMF code, or via its Windows interface (USB port needed).
    • The supplied interface allows programming easily and quickly
    • In addition to the phone numbers entry, it is possible to configure door phone codes (e.g. lock opening code), the relay switching mode, and also technical parameters as Flash duration, Pause, DTMF tone
    • SW allows editing and printing labels to stick on the door phone front


    • Numbers of buttons4 botones (otros modelos disponibles de 1 y 2 botones)
    • Analog1 puerto compatible con FXS/PBX o Linea analógica RTB
    • Relay number1 Relé
