Cyberdata paging amplifier

Compare

Avanzada 7 code: 0060660200008

Manufacturer SKU: 011061

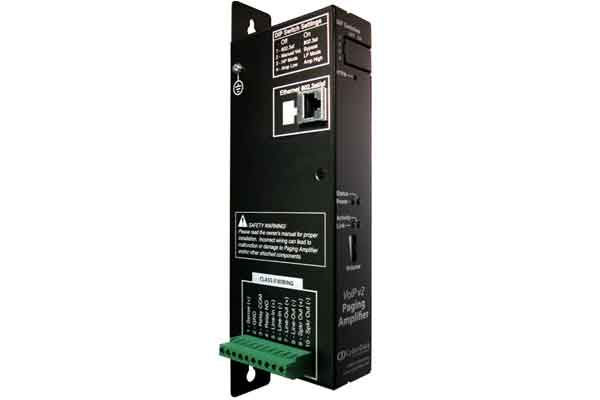

The CyberData SIP-enabled VoIP V2 Paging Amplifier provides an easy method for implementing an IP-based overhead paging system for both new and legacy installations.

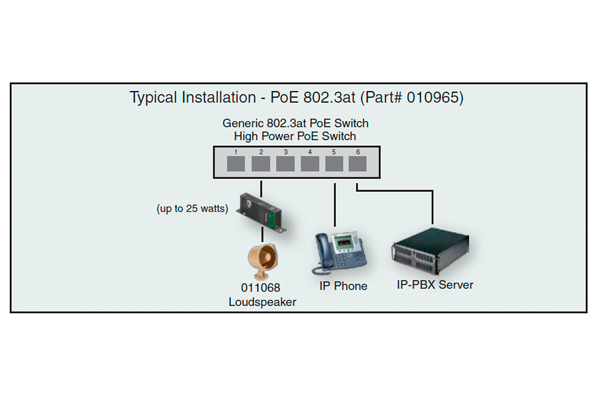

With up to 25 watts of driving power (802.3at), the Amplifier provides direct drive of a standard Horn speaker and supports a line out connector for connection to an external amplifier. The interface is compatible with most SIP-based IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the Paging Amplifier can be configured to listen to multicast address and port number combinations to form paging zones.

The V2 Paging Amplifier can be configured as a Night Ringer with two SIP extensions. One extension can be assigned to a page group for auto answer paging. The second extension can be assigned to a “First-to-Answer” Night Ring group with IP phones. An audio ring file is activated when the second SIP extension of the Paging Amplifier is dialed. If any of the IP phones in the ring group is answered (or if the caller hangs up), the Paging Amplifier stops ringing.

Standard night ringer function can be utilized as detailed in the Operation Guide.
- Datasheet011061_VoIP_V2_Paging_Amplifier.pdf
- User manual011061_930324D_VoIP_V2_Paging_Amplifier_PoE_Ops_Guide_SIP.pdf
- Quick start guide011061_930311G_VoIP_V2_Paging_Amplifier_PoE_QuickRef.pdf
