Avanzada 7 code: 0030280050005
Manufacturer SKU: VEGA-VS0111-090
- Producto descatalogado

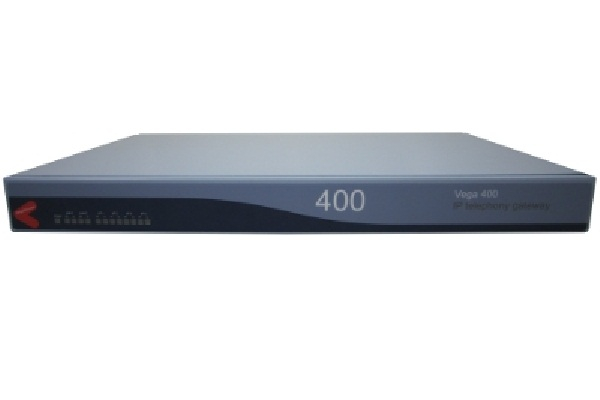

Gateway Vegastream Vega400 4PRI + 90 VoIP calls
-
The Vega 400 VoIP gateway connects digital telephony equipment to IP networks. All Vega 400 gateways are supplied with four E1/T1 interfaces, regardless of the license purchased.
- 90 VoIP calls license
The unit is purchased pre-licensed to suit the initial requirements of the customer for the quantity of concurrent VoIP calls desired through to 120 VoIP channels. Future expansion is easily achieved in the field & can be provisioned by means of further licenses and expansion modules.
Each E1/T1 interface can be independently configured as network side or terminal side. The Vega 400 gateway can therefore be connected to a PBX & the PSTN simultaneously. This configuration provides:
- No disruption to the configuration of existing equipment
- Flexibility & choice for call routing
Integrated Bypass Relays For Resiliency

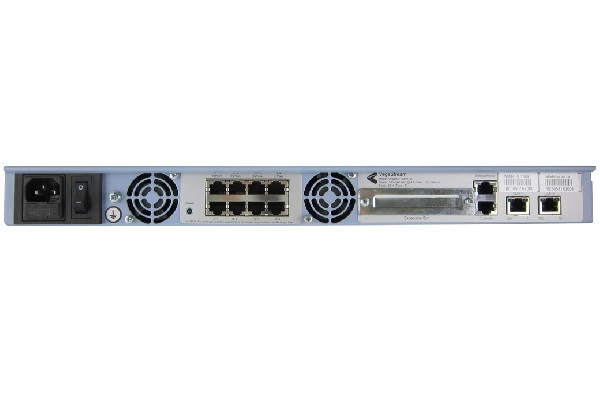

The Vega 400 gateway incorporates an additional four RJ45 sockets and fails over to these during outages. This resource can be utilised to achieve hardwired connection from the PBX to the PSTN for instances when the Vega is installed between the two. Or alternatively to failover to a back-up Vega 400 & thereby providing dual redundancy. -
- VoIP protocolsSIP y H.323 version 4
- FXO portsNO
- FXS portsNO
- PRI ports4 E1/T1
- FAX codecFAX Support – up to G3 FAX, using T.38
- LAN portsRJ45 (10 BaseT/100/1000 BaseTX, full/half duplex)
- WAN portsRJ45 (10 BaseT/100/1000 BaseTX, full/half duplex)
- Audio CodecG.711 (a-law/µ-law), G.729a, G.723.1, Clearmode
-
- Firmware10.02.08.6 S027.zip
- Quick start guideQuick Start Guide_Vega_400_05.pdf
- User manualVega_Admin_Guide_R85_v1.6.pdf
- Datasheetsangoma_vega400.pdf
