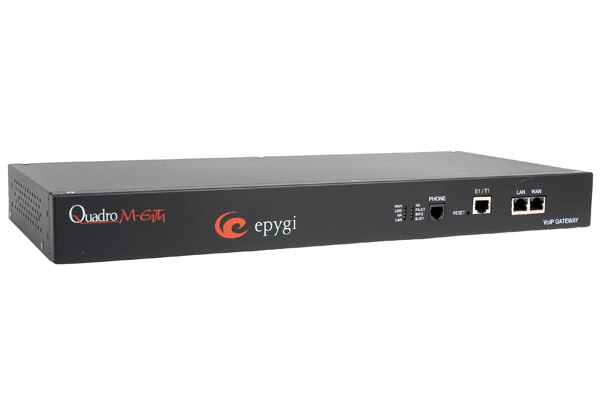

Epygi Quadro single E1/T1-EU-RM

  • Imagen 1: Epygi Quadro single E1/T1-EU-RM
  • Imagen 2: Epygi Quadro single E1/T1-EU-RM
  • Imagen 1: Epygi Quadro single E1/T1-EU-RM
  • Imagen 2: Epygi Quadro single E1/T1-EU-RM

Avanzada 7 code: 0030280070002

Manufacturer SKU: SKU-QM-0002

Producto descatalogado

  • This model features 30 channels of compressed g.729 codec and conforms to a broad variety of voice codecs and signaling protocols. Architecture and design enhancements improve sound quality and application integration.

    The QuadroM E1/T1 is available in a sturdy metal rack-mountable housing that permits the inclusion of a built-in power source and cooling fan for heavy duty operation and extended life span.



    The QuadroM version includes call routing and auto attendant capabilities, voice prioritization over data and sophisticated firewall and security elements. The QuadroM functions primarily to bridge traditional PBX traffic to the Internet, reducing costs and simplifying system administration.


    • ISDN ports1 E1/T1 port to the Central Office (RJ45)
    • VoIP protocolsSIP, SDP (RFC 2327), RTP, H.323 (ITU-T: H.225.0, H.235, H.245,H.323, H.450.x, Q.931, Q.932) Fax over IP (ITU-T: T4, T30, T38, V17, V21, V27 ter, V29)
    • FAX codecAudio / T.38 fax relay and clear channel fax
    • LAN ports1 Ethernet 10/100BASE T port to connect a PC for configuration purposes (RJ45)
    • WAN ports1 Ethernet 10BASE T (RJ45)
    • Audio CodecG.711, G.726 (16, 24, 32, 40 Kbps), G.729, iLBC (13,33 kbit/s, 15,2 kbit/s); (RFC 3951, ITU-T: G711, G.726, G729 Annex A; IETF; ITU-T Q.23, Q.24, Bellcore GR.506, GR.181; ITUT G.168-2000, 2002; ETS_300659_1,2,3; A-law, m-law coding) NAT traversal (both manually and STUN) VAD, CNG, G.168 echo cancellation
