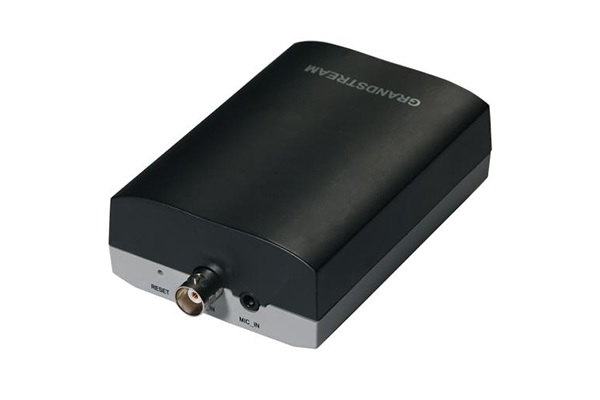

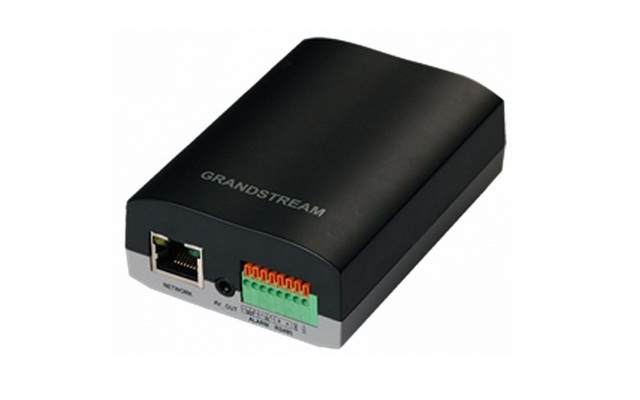

The GXV3500 is an innovative next generation IP video encoder + decoder + public announcement system 3-in-1 combo device.

It features cutting edge H.264 real-time video compression for analog video as well as IP video decoding with excellent image clarity. It offers industry leading SIP/VoIP for 2-way audio, video streaming to mobile phones and video phones, integrated PoE, a large pre-/post-event recording buffer, and advanced security protection. Its integration of comprehensive peripherals including microphone input, alarm control and TV/audio output allows the device to also function as a powerful and flexible voice/video public announcement system using microphones, IP phones, or IP video phones. The GXV3500 can be managed with GSurf, Grandstream’s advanced and intuitive video management software that controls up to 36 cameras simultaneously. It offers an HTTP API and is fully compliant with ONVIF standard. The GXV3500 is an advanced first-of-its-kind IP video encoder + decoder + public announcement system 3-in-1 combo product for professional surveillance and security monitoring applications.
- Decodes standard definition PAL/NTSC composite video stream, or smaller resolutions
- Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
- Support 8Mb pre-/post-event recording buffer
- Support Line-Out and Micro-In audio connections
- Support composite (RCA) video output to TV
- Support Motion Detection, and Notification on PC Client
- Support both Variable Bit Rate and Variable Frame Rate
- Support IE and Firefox for network preview
- Built-in high performance streaming server to allow 10+ simultaneous viewers
- SIP/VoIP support for two-way audio and video streaming to mobile phones/video phones
- Integrated Power-over-Ethernet (802.3af)
- Support voice announcement from microphone or remote SIP phones, or video announcement/advertisement from remote SIP video phones or IP video streaming content
- Full ONVIF compliance
- VoIP protocolsSoporta SIP/VoIP (Voz y Video-sobre-IP)
- WAN ports10M/100M auto-detect, RJ45
- Audio CodecG.711a/u
- Supported codecsCodecs Video H.264, MJPEG , JPEG
- ConnectorsEntrada de Video BNC (voltaje1.0Vp-p,resistencia75) | Entrada de Audio 3.5mm MIC IN | Salida de Audio/Video 3.5mm, cable de 3-patas A/V para salida TV audio y video | Entrada de Alarma Puerto de entrada digital. Abierto Normal (bajo), Corriente (DC) <50mA. Voltaje <45V para activar. | Salida de Alarma Puerto de entrada digital. Abierto Normal. Voltaje <80V. Corriente continua <50mA | Puerto Serial RS485 (control PTZ).
- PoESi PoE integrado (IEEE 802.3af clase 0)
- Additional featuresH.264, MJPEG , JPEG Máxima Resolución de Codificación NTSC y PAL (ver datasheet)
- Datasheetgxv3500_datasheet_spa.pdf
- User manualgxv3500_user_manual_1.0.1.38.pdf
- OthersBank.pdf
- User manualgsurf_usermanual_english.pdf
- Quick start guideGXV3500_quickstart.pdf
- Datasheetgxv3500_spec_sheet.pdf
- Documentacion DesarrolloMonitor_cameras_in_iPhone_ip_vision.pdf
