Manufacturer: PATTON
Avanzada 7 code: 0030330760004
Manufacturer SKU: SN5301/4B/EUI
Unidades en la cesta: 0
Patton ESBR SN5300 4 sessions SBC, upgradeable to 250
-
Patton SmartNode 5300 ESBR
SN5300 is a CPE based Session Border Controller, delivering the features you need for advanced multiservice voice and data network applications. It combines highly flexible SIP routing and manipulation features with powerful quality of service IP routing functions to build professional and reliable VoIP and data networks.
Patton ESBR SN5300 4 sessions SBC, upgradeable to 250

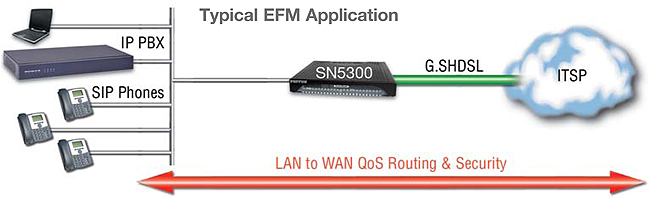

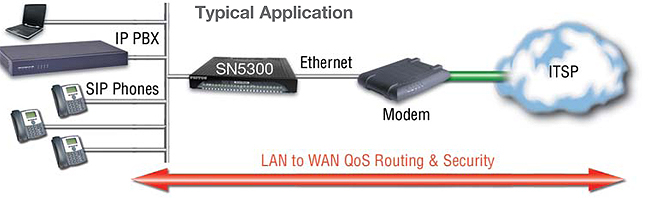

The SN5300 enables Universal SIP Trunking and provides a single Integrated Access Device with features like IP Routing, VoIP and IP Security and a SIP registrar for survivability. The SN5300 connects to the IP-PBX or UC system in the Enterprise’s LAN and to an Internet telephony service provider (ITSP), creating a single conduit for multimedia components including voice, video, and data. Whether it is a new installation or an existing deployment, this device will aid you in, deploying, troubleshooting, logging, and security while increasing the flexibility of your network.
Applications
The SN5300 enables protocol conversion between two networks to solve interop problems for devices using SIP TCP signaling only. The SmartNode is able to convert SIP TCP or SIP TLS signaling into SIP UDP signaling.
Using the built-in QoS engine, the SmartNode ensures that voice traffic gets top priority resulting in good voice quality across the SIP Trunk over a public network.
-
- Puertos DLS1 G.SHDSL port for EFM transmission (factory options for 2 or 4 pair)
- Ethernet portsIntelligent 4 port Fast Ethernet Base-T 10/100 (routable & switchable). IEEE 802.1D 802.1Q/802.1P Link Scheduling
- VPNIPsec VPN (Roadmap). Access Control Lists. DMZ port.
- USB1 USB port. 1 RS-232 Console port
- Additional features4 SIP Sessions, license upgradeable up to 256
- VoIP protocolsSIPv2/SIPv2 over TLS Inbound and outbound SIP Registration B2BUA Abilities SIP Protocol Normalization SIP Header Manipulation Call-Routing (source, destination, time, date, ...) Multiple SIP Trunk support Call Hunt- and Ringgroups
- Supported codecstransparent to the RTP payload and all codecs no transcoding (use SN5480 for transcoding)
-
- DatasheetSN5300-A4_datasheet.pdf
- User manual07MSN5300-um.pdf
- Quick start guide07MSN5300-qs.pdf
- Release NotesConformity-European-03344D1-001B.pdf
- Documentacion DesarrolloCommandLine-Reference-Guide-Trinity3.5-cli.pdf
