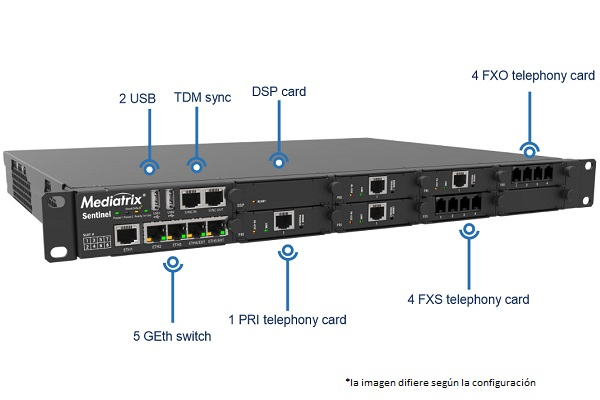

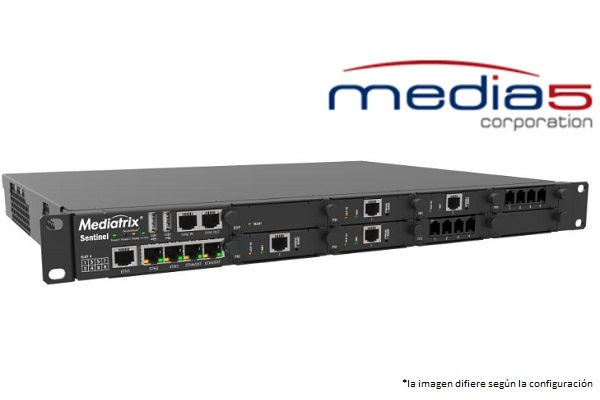

Mediatrix Sentinel,Base Unit,up to 250SBC sessions

Description
Technical specs
Downloads

The all-in-one platform

Sentinel inherits the VoIP gateway and media adapter capabilities from the class-leading Mediatrix product portfolio and is scalable up to 240 channels to convert PSTN and Legacy PBX communications into SIP-based communications.

Sentinel is also a SBC, addressing a variety of applications including Demarcation Point, Security, SIP Normalization, Survivability, and more. With a Back-to-Back-User-Agent, Sentinel acts as the middle-man for communications between two SIP endpoints. It permits applying deep packet inspection, identifies specific properties attached to a SIP Request, and executes predefined actions to manage any particular deployment scenario. Sentinel also supports media relay for media anchoring, NAT traversal, and transcoding.

Flexible like never before

Sentinel is a multi-service business platform bundling Session Border Controller and Media Gateway capabilities into a robust, field-upgradable platform designed for medium and large enterprises. Sentinel is ideally targeted for applications ranging from 30 up to 600 simultaneous sessions.

Advantages

Sentinel permits Service Providers to deploy SIP Trunk and Hosted Services with compelling session border controller (SBC) capabilities. It delivers a flexible architecture designed to enable administrators to easily modify SIP and Media signaling to comply with any devices deployed on the customer premises.

Specifications

Sentinel enables cost-effective and profitable VoIP deployments into medium and large enterprises for both Session Border Controller (SBC) and SIP Gateway applications. It supports a large variety of telephony interfaces and is the ideal solution to deploy private and hosted toll bypass networks. It provides a simple, transparent, and cost-effective way to derive the benefits of VoIP services while maintaining a connection to the PSTN.
- Additional features3 SBC sessiones, license upgradable
- USB2 USB port.
- VoIP protocolsSIP; High availability with hot standby redundancy; Back-to-Back-User-Agent;Multi-part body support; Multiple SIP Proxy support via DNS SRV; TCP and UDP support; IPv6 addressing
- Ethernet ports5 x 10/100/1000 BaseT Ethernet RJ-45 connectors
- Supported codecsVocoders: G.711 (A-law, ?-law), G.723.1, G.726, G.729a/b
- SIPBack-to-Back User Agent; SIP Header manipulation; SIP Registrar ; SIP Authentication; Registration throttling; SIP Failover using DNS SRV;NAT/NAPT on SIP for near and far end; Multiple SIP Proxy
- FXO portsOpcional, ampliable mediante módulos
- FXS portsOpcional, ampliable mediante módulos
- PRI portsOpcional, ampliable mediante módulos
- RAM memory2 GB
- Hard disk16 GB
- DatasheetSentinelProductBrochure.pdf
- Quick start guideSNTL_Quick_Start_Guide.pdf
- Guia de AdministracionSbc_Service_User_Guide._Dgw_v2-0_rev0.pdf
- User manualSNTL-HWIG-v2-0.pdf
- OthersSNTL_Reference_Dgw_MX.pdf
- Guia de AdministracionMTX_Dgw_v2-0_SCG.pdf
