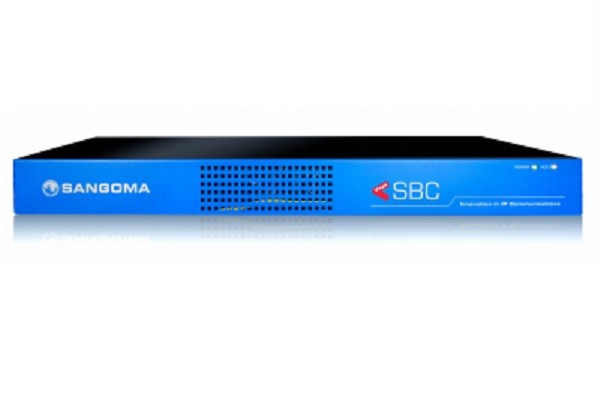

The Vega Enterprise SBC provides security and interoperability for enterprise networks. It’s your firewall for voice. The browser-based GUI makes the Vega eSBC one of the easiest to provision and manage. The straight-forward, session-based licensing model also makes the Vega eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

• Supports 25-250 simultaneous sessions/calls

• Field upgradeable

• Browser-based GUI for easier provisioning and management

• Security and QOS for enterprise networks

• DoS/DDoS attack protection

• Network interconnect point for SIP trunking

• Topology hiding for fraud protection

• Hardware based transcoding

Patton SmartNode SBC SN5501 8P / EUI

With your eSBC SmartNode 5500 you can connect through a router with a SIP trunk link or a hosted PBX service. The SN5500 supports up to 200 SIP to SIP calls (under ideal conditions), 8 which can be transcoding, for remote connectivity, branches and All-IP operator services.

The SN5500 series acts as a Session Border Controller, access router and QoS CPE, all in one device. You can also carry out the evaluation and monitoring of the network in the client's facilities using the PacketSmart agent to prevent, reduce and solve network and voice quality problems.

Key features

• 8 SIP calls transcoding
• Up to 200 calls from SIP to SIP in ideal conditions
• 2 x Gigabit Ethernet 10/100/1000Base-T
• External UI power (100-240)
• IP routing
• Advanced switching of local calls. It connects to multiple SIP / IP PBX services. It includes SIP TLS / SRTP
• Network monitoring and evaluation
• Automatic provisioning
• Propietary operating system: uses Trinity's patented software optimizing security
• Easy administration and provisioning
• Full VoIP protocol support - SIPv2, SIPv2 soberTLS, T.38, voz HD G.722, RTP security with SRTP, face and modem omission, DMTF relay
• Interoperability for voice and fax T.38

Why SmartNode?

• Patton Quality
• Made in the USA
• Unrivalled Customer Support
• Free Support and Upgrades

Valid for this two applications:

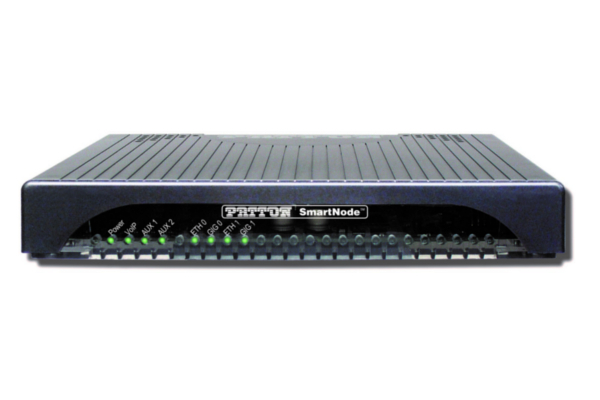

Patton SmartNode SBC SN5501 4B / EUI

The SN5500 series acts as a Session Border Controller, access router and QoS CPE, all in one device. You can also carry out the evaluation and monitoring of the network in the client's facilities using the PacketSmart agent to prevent, reduce and solve network and voice quality problems.

Key features

• 4 SIP calls non RTP transcoding (SIP b2b UA) upgradeable (máx. 200)
• Up to 200 calls from SIP to SIP in ideal conditions
• 2 x Gigabit Ethernet 10/100/1000Base-T
• External UI power (100-240)
• IP routing
• Advanced switching of local calls. It connects to multiple SIP / IP PBX services. It includes SIP TLS / SRTP
• Network monitoring and evaluation
• Automatic provisioning
• Propietary operating system: uses Trinity's patented software optimizing security
• Easy administration and provisioning
• Full VoIP protocol support - SIPv2, SIPv2 soberTLS, T.38, voz HD G.722, RTP security with SRTP, face and modem omission, DMTF relay
• Interoperability for voice and fax T.38

Why SmartNode?

• Patton Quality
• Made in the USA
• Unrivalled Customer Support
• Free Support and Upgrades

Valid for this two applications:

Patton SmartNode SBC SN5501

With your eSBC SmartNode 5500 you can connect through a router with a SIP trunk link or a hosted PBX service. The SN5500 supports up to 200 SIP to SIP calls (under ideal conditions), 16 which can be transcoding, for remote connectivity, branches and All-IP operator services.

The SN5500 series acts as a Session Border Controller, access router and QoS CPE, all in one device. You can also carry out the evaluation and monitoring of the network in the client's facilities using the PacketSmart agent to prevent, reduce and solve network and voice quality problems.

Key features

• 16 SIP calls transcoding
• Up to 200 calls from SIP to SIP in ideal conditions
• 2 x Gigabit Ethernet 10/100/1000Base-T
• External UI power (100-240)
• IP routing
• Advanced switching of local calls. It connects to multiple SIP / IP PBX services. It includes SIP TLS / SRTP
• Network monitoring and evaluation
• Automatic provisioning
• Propietary operating system: uses Trinity's patented software optimizing security
• Easy administration and provisioning
• Full VoIP protocol support - SIPv2, SIPv2 soberTLS, T.38, voz HD G.722, RTP security with SRTP, face and modem omission, DMTF relay
• Interoperability for voice and fax T.38

Why SmartNode?

• Patton Quality
• Made in the USA
• Unrivalled Customer Support
• Free Support and Upgrades

Valid for this two applications:

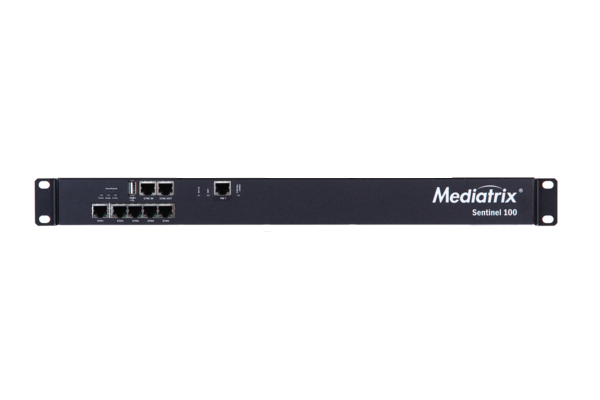

Mediatrix Sentinel 100

The Mediatrix Sentinel 100 combines an SBC (Session Border Controller) with a Media Gateway into a solid service platform ideal for SMBs. It offers up to 120 simultaneous VoIP channels and addresses applications of up to 500 users.

It is designed for a wide variety of use cases, including SIP trunking, hosted services and unified communications. It offers support for ISDN PRI, E%M and R2 E1/T1; it also offers connectivity for legacy PBX and PSTN recovery.

Key features

• 1 PRI
• High performance processing for up to 120 simultaneous VoIP channels
• Aimed at applications of up to 500 users
• T.38
• Zero-Touch configuration
• Intuitive GUI web interface
• Dual - Stack IPv6, IPv4
• Multiple IP addresses and VLANs
• NAT, firewall and router capabilities
• G.711 (A-law y u-law), G.726 and G.729a/b
• G.168 echo cancellation
• DTMF echo cancellation
• 5 x 10/100/1000 Base-T Ethernet RJ-45
• 2 x TDM sync RJ-45
• 1 x USB 2.0 conector Typo -A
• Power supply: 100-240 VAC

The Mediatrix C7 Series offers a series of gateways that combine FXS and FXO interfaces to integrate multiple applications into a single platform. These VoIP Gateways offer excellent value for money and are ideal for connecting small and medium-sized networks to an IP network.

Models C710, C711, C730, C731 and C733 are currently available. Depending on the model it can present from 4 to 8 telephone ports and connect up to 8 analog phones, modems, fax or up to 8 RTC lines or trunks from a PBX to the IP network.

One of Mediatrix's flagship products is the Sentinel, an integrative product that has the capability of a customizable Session Border Controller (SBC) and Gateway. It is ideal for medium and large enterprises that need VoIP deployments with flexible architecture, including fault tolerance, SIP normalization and demarcation point.

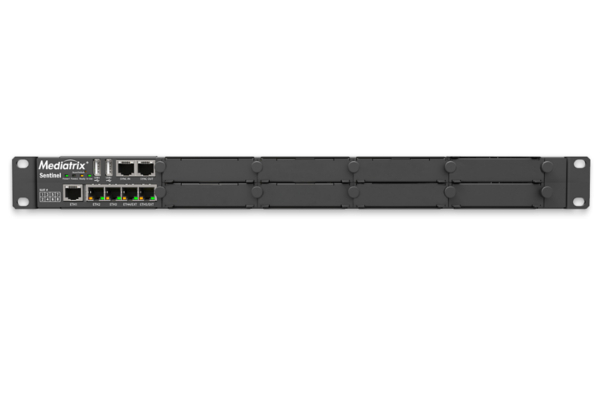

Base Station

The Base Station of our Sentinel initially presents:

• - 1 WAN + 4 LAN Gigabit Ethernet
• - 8 slots for expandable modules
• - 3 SBC licenses

Thanks to these 8 slots we will be able to customize our Sentinel as we want, combining the cards and licenses that best suit our needs.

What modules and licenses can I combine with my Base Station?

MODULES

• - Sentinel 1 PRI
• A 4FXS card
• A 4FXO card
• A DSP card (Required if using FXS or FXO)

SBC Licenses

• - Individual session
• - Pack of 10 sessions
• - Pack of 100 sessions
• - Transcoding, Voice recording and WebRTC gateway (Available soon)

The all-in-one platform

Sentinel inherits the VoIP gateway and media adapter capabilities from the class-leading Mediatrix product portfolio and is scalable up to 240 channels to convert PSTN and Legacy PBX communications into SIP-based communications.

Sentinel is also a SBC, addressing a variety of applications including Demarcation Point, Security, SIP Normalization, Survivability, and more. With a Back-to-Back-User-Agent, Sentinel acts as the middle-man for communications between two SIP endpoints. It permits applying deep packet inspection, identifies specific properties attached to a SIP Request, and executes predefined actions to manage any particular deployment scenario. Sentinel also supports media relay for media anchoring, NAT traversal, and transcoding.

Flexible like never before

Sentinel is a multi-service business platform bundling Session Border Controller and Media Gateway capabilities into a robust, field-upgradable platform designed for medium and large enterprises. Sentinel is ideally targeted for applications ranging from 30 up to 600 simultaneous sessions.

Advantages

Sentinel permits Service Providers to deploy SIP Trunk and Hosted Services with compelling session border controller (SBC) capabilities. It delivers a flexible architecture designed to enable administrators to easily modify SIP and Media signaling to comply with any devices deployed on the customer premises.

Specifications

Sentinel enables cost-effective and profitable VoIP deployments into medium and large enterprises for both Session Border Controller (SBC) and SIP Gateway applications. It supports a large variety of telephony interfaces and is the ideal solution to deploy private and hosted toll bypass networks. It provides a simple, transparent, and cost-effective way to derive the benefits of VoIP services while maintaining a connection to the PSTN.

The Mediatrix C7 Series offers a series of gateways that combine FXS and FXO interfaces to integrate multiple applications into a single platform. These VoIP Gateways offer excellent value for money and are ideal for connecting small and medium-sized networks to an IP network.

Models C710, C711, C730, C731 and C733 are currently available. Depending on the model it can present from 4 to 8 telephone ports and connect up to 8 analog phones, modems, fax or up to 8 RTC lines or trunks from a PBX to the IP network.

One of Mediatrix's flagship products is the Sentinel, an integrative product that has the capability of a customizable Session Border Controller (SBC) and Gateway. It is ideal for medium and large enterprises that need VoIP deployments with flexible architecture, including fault tolerance, SIP normalization and demarcation point.

Base Station

The Base Station of our Sentinel initially presents:

• - 1 WAN + 4 LAN Gigabit Ethernet
• - 8 slots for expandable modules
• - 3 SBC licenses

Thanks to these 8 slots we will be able to customize our Sentinel as we want, combining the cards and licenses that best suit our needs.

What modules and licenses can I combine with my Base Station?

MODULES

• - Sentinel 1 PRI
• A 4FXS card
• A 4FXO card
• A DSP card (Required if using FXS or FXO)

SBC Licenses

• - Individual session
• - Pack of 10 sessions
• - Pack of 100 sessions
• - Transcoding, Voice recording and WebRTC gateway (Available soon)

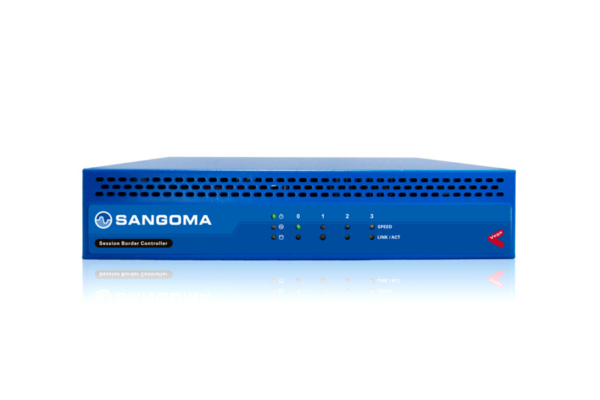

Sangoma SBC for small business - 30 calls

The SBC helps to reduce infrastructure costs versus analog networks; It also allows protect you from malicious attacks as an intermediary in their IP infrastructure. It's algo interoperable with leading IP PBX allowing more flexibility in day to day in the company.

Features

• 30 simultaneous calls/sessions
• Migrating to SIP Trunking and Hosted PBX safely
• Training for remote workers
• Interoperable with leading IP PBX unified communications systems, including Asterisk, BroadSoft, Cisco, Denwa, Elastix, FreePBX, FreeSWITCH, Gamma, Lync, Samsung, 3CX and more.
• Protection against DoS/DDoS
• Network interconnection point for SIP Trunking
• Clandestinely connection for fraus protection

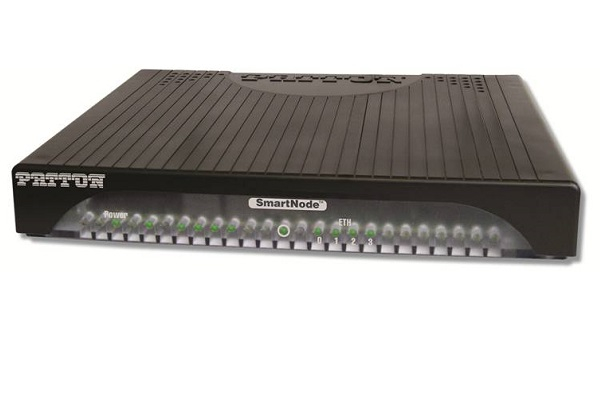

Patton SmartNode 5300 ESBR

SN5300 is a CPE based Session Border Controller, delivering the features you need for advanced multiservice voice and data network applications. It combines highly flexible SIP routing and manipulation features with powerful quality of service IP routing functions to build professional and reliable VoIP and data networks.

Patton ESBR SN5300 4 sessions SBC, upgradeable to 250

The SN5300 enables Universal SIP Trunking and provides a single Integrated Access Device with features like IP Routing, VoIP and IP Security and a SIP registrar for survivability. The SN5300 connects to the IP-PBX or UC system in the Enterprise’s LAN and to an Internet telephony service provider (ITSP), creating a single conduit for multimedia components including voice, video, and data. Whether it is a new installation or an existing deployment, this device will aid you in, deploying, troubleshooting, logging, and security while increasing the flexibility of your network.

Applications
The SN5300 enables protocol conversion between two networks to solve interop problems for devices using SIP TCP signaling only. The SmartNode is able to convert SIP TCP or SIP TLS signaling into SIP UDP signaling.

Using the built-in QoS engine, the SmartNode ensures that voice traffic gets top priority resulting in good voice quality across the SIP Trunk over a public network.

Vega Enterprise SBC 25 Call Upgrade

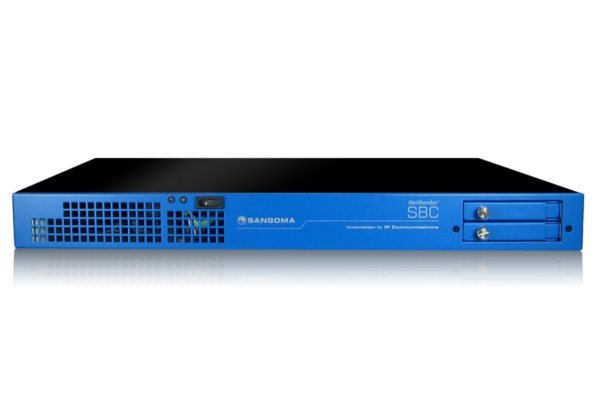

Sangoma Netborder Carrier SBC 2000 calls

The Sangoma NetBorder SBC Carrier provides flexibility and security to its IP telephone network acting as an intermediary between devices, networks and protocols and as a barrier against internal and external threats that may arise. Some of its salient features:

Some of its features:

• 1 U - 2000 calls
• GUI for easy configuration
• Traffic visualization tools
• Equivalence PSTN to SIP Trunking
• Dual Redundant AC PSU
• RAID1 SSD
• Hardware based on Transcoding and Media Handling
• Qualified for Microsoft Lync
• Available from 250 to 4000 sessions.

The Vega Enterprise VM SBC provides Security and Interoperability for Enterprise Networks. The Vega VM eSBC is possible to provision and manage thanks to the browser-based GUI. The straight-forward, session-based licensing model also makes the Vega VM eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

The fact that the Vega VM eSBC can be implemented within an existing VM infrastructure further contributes to it value. It can be deployed into an existing infrastructure without any additional Power, Space or Cabling concerns or adding Points of Failure. The VM solution offers unmatched flexibility, redundancy and durability.

Protection from Enterprise Security Threats:

• Denial of Services
  • Call/registration overload
  • Malformed messages (fuzzing)
• Configuration errors
  • Mis-configured devices
  • Operator and application errors
• Theft of service / Fraud
  • Unauthorized users
  • Unauthorized media types
• BYOD
  • Smartphones running unauthorized apps
  • Viruses and Malware attacking your VoIP network

The Vega Enterprise VM SBC provides Security and Interoperability for Enterprise Networks. The Vega VM eSBC is possible to provision and manage thanks to the browser-based GUI. The straight-forward, session-based licensing model also makes the Vega VM eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

The fact that the Vega VM eSBC can be implemented within an existing VM infrastructure further contributes to it value. It can be deployed into an existing infrastructure without any additional Power, Space or Cabling concerns or adding Points of Failure. The VM solution offers unmatched flexibility, redundancy and durability.

Protection from Enterprise Security Threats:

• Denial of Services
  • Call/registration overload
  • Malformed messages (fuzzing)
• Configuration errors
  • Mis-configured devices
  • Operator and application errors
• Theft of service / Fraud
  • Unauthorized users
  • Unauthorized media types
• BYOD
  • Smartphones running unauthorized apps
  • Viruses and Malware attacking your VoIP network

The Vega Enterprise VM SBC provides Security and Interoperability for Enterprise Networks. The Vega VM eSBC is possible to provision and manage thanks to the browser-based GUI. The straight-forward, session-based licensing model also makes the Vega VM eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

The fact that the Vega VM eSBC can be implemented within an existing VM infrastructure further contributes to it value. It can be deployed into an existing infrastructure without any additional Power, Space or Cabling concerns or adding Points of Failure. The VM solution offers unmatched flexibility, redundancy and durability.

Protection from Enterprise Security Threats:

• Denial of Services
  • Call/registration overload
  • Malformed messages (fuzzing)
• Configuration errors
  • Mis-configured devices
  • Operator and application errors
• Theft of service / Fraud
  • Unauthorized users
  • Unauthorized media types
• BYOD
  • Smartphones running unauthorized apps
  • Viruses and Malware attacking your VoIP network

The Vega Enterprise VM SBC provides Security and Interoperability for Enterprise Networks. The Vega VM eSBC is possible to provision and manage thanks to the browser-based GUI. The straight-forward, session-based licensing model also makes the Vega VM eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

The fact that the Vega VM eSBC can be implemented within an existing VM infrastructure further contributes to it value. It can be deployed into an existing infrastructure without any additional Power, Space or Cabling concerns or adding Points of Failure. The VM solution offers unmatched flexibility, redundancy and durability.

Protection from Enterprise Security Threats:

• Denial of Services
  • Call/registration overload
  • Malformed messages (fuzzing)
• Configuration errors
  • Mis-configured devices
  • Operator and application errors
• Theft of service / Fraud
  • Unauthorized users
  • Unauthorized media types
• BYOD
  • Smartphones running unauthorized apps
  • Viruses and Malware attacking your VoIP network

The Vega Enterprise VM SBC provides Security and Interoperability for Enterprise Networks. The Vega VM eSBC is possible to provision and manage thanks to the browser-based GUI. The straight-forward, session-based licensing model also makes the Vega VM eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

The fact that the Vega VM eSBC can be implemented within an existing VM infrastructure further contributes to it value. It can be deployed into an existing infrastructure without any additional Power, Space or Cabling concerns or adding Points of Failure. The VM solution offers unmatched flexibility, redundancy and durability.

Protection from Enterprise Security Threats:

• Denial of Services
  • Call/registration overload
  • Malformed messages (fuzzing)
• Configuration errors
  • Mis-configured devices
  • Operator and application errors
• Theft of service / Fraud
  • Unauthorized users
  • Unauthorized media types
• BYOD
  • Smartphones running unauthorized apps
  • Viruses and Malware attacking your VoIP network

The Vega Enterprise SBC provides security and interoperability for enterprise networks. It’s your firewall for voice. The browser-based GUI makes the Vega eSBC one of the easiest to provision and manage. The straight-forward, session-based licensing model also makes the Vega eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

• Supports 25-250 simultaneous sessions/calls

• Field upgradeable

• Browser-based GUI for easier provisioning and management

• Security and QOS for enterprise networks

• DoS/DDoS attack protection

• Network interconnect point for SIP trunking

• Topology hiding for fraud protection

• Hardware based transcoding

The Vega Enterprise SBC provides security and interoperability for enterprise networks. It’s your firewall for voice. The browser-based GUI makes the Vega eSBC one of the easiest to provision and manage. The straight-forward, session-based licensing model also makes the Vega eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

• Supports 25-250 simultaneous sessions/calls

• Field upgradeable

• Browser-based GUI for easier provisioning and management

• Security and QOS for enterprise networks

• DoS/DDoS attack protection

• Network interconnect point for SIP trunking

• Topology hiding for fraud protection

• Hardware based transcoding

The Vega Enterprise SBC provides security and interoperability for enterprise networks. It’s your firewall for voice. The browser-based GUI makes the Vega eSBC one of the easiest to provision and manage. The straight-forward, session-based licensing model also makes the Vega eSBC one of the most cost-effective SBCs to deploy and maintain in the field.

• Supports 25-250 simultaneous sessions/calls

• Field upgradeable

• Browser-based GUI for easier provisioning and management

• Security and QOS for enterprise networks

• DoS/DDoS attack protection

• Network interconnect point for SIP trunking

• Topology hiding for fraud protection

• Hardware based transcoding

SmartNode Virtual vSN by Patton

Patton's Virtual SmartNode (vSN) delivers the features you need for advanced voice network applications that need to be easily scaled up and down. At the same time, it eliminates hardware limitations which are required for the performance of the application.

DoS prevention, trust peer, toll fraud prevention, stateful firewall QoS, voice quality assessment and monitoring and much more, is part of the virtualized Patton SmartNode* as well as IP routing, including IPv4 and IPv6 networking features.

SmartNodes are the leading and field proven CPEs running Patton Proprietary OS. The same, feature rich software used on the purpose build hardware devices, can also be used in virtual environments for a high level of scalability and service availability.

Applications

The Virtual SmartNode is designed to run in virtualized enterprise networks, telephony service provider datacenters, cloud provider infrastructure, etc. Addressing varying call capacity needs from clients can be easily be done, scaling up and down the required licenses on the virtual SmartNode using a floating license model through the Patton Cloud. The Patton Cloud automatically distributes the obtained licenses to where they are needed (vSN and other Patton devices).

This enables you to easily scale up / down SBC sercices on Virtual SmartNodes but also on regular SmartNode devices.

Virtual SmartNode as SBC in SIP Trunking scenario

Application details:

• Usual eSBC features delivered to SME
• LAN telephony protection
• Service demarcation
• SIP normalization
• Quality of service
• Survivability
• Conversion
  • SIP IPv4 to IPv6
  • SIP UDP to TCP
  • SIP TLS to UDP

- Benefits:

• Harmonized installation
• No need for pCPE (purpose-built CPE)
• Simplified installation
• Scalable, flexible, reliable
• High availability through virtualized hardware

Más información: https://www.patton.com/session-border-controller/vsn/
