Khomp UMG Server 104

  • Khomp UMG Server 104, server and gateway in the same device already available in the online store of Avanzada 7
  • Khomp UMG Server 104, server and gateway with 2GB of memory already available in the online store of Avanzada 7
  • Khomp UMG Server 104, server and gateway with 2 USB ports already available in the online store of Avanzada 7
  • Khomp UMG Server 104, server and gateway in the same device already available in the online store of Avanzada 7
  • Khomp UMG Server 104, server and gateway with 2GB of memory already available in the online store of Avanzada 7
  • Khomp UMG Server 104, server and gateway with 2 USB ports already available in the online store of Avanzada 7

Manufacturer: KHOMP

Avanzada 7 code: 0121061090002

Manufacturer SKU: UMG Server 104

Unidades en la cesta: 0

Add to cart

  • Gateway Khomp UMG Server 104

    UMG Server 104 is a device designed for integrators who want to develop a centralized solution based on E1/T1 and SIP calls for their final client. This device is "all in one": server + gateway, to load your software application for PABX, call center and dialer, among others, with a motherboard for the installation of any platform based on Windows, Linux or FreeBSD.

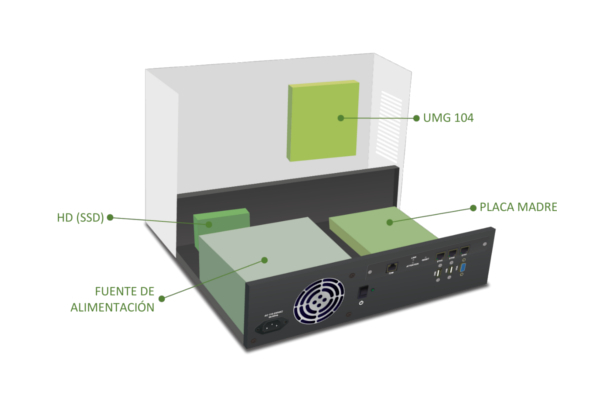

    The UMG Server 104 can be composed with various storage options, allied to the telephony E1/T1 interface, a RAM module of up to 8GB and two p orts of SATA type for connection with SSD or 2.5'' HD with storage for up to 1TB each one.


    Key features

    • It does not requiere the use of an external server that incorporates the functions in a single device.
    • Use a source of energy
    • 2 USB
    • 1 VGA input for peripheral connection
    • Placa madre IPX1800G2
    • Processor Intel Celeron J1800 Dual Core 2.41 GHz 64 bits
    • 2GB RAM
    • 1 SSD 2.5 pulg. 16GB


    Gateway features

    • 1 E1/T1
    • ISDN or R2 signling (R2 available only for E1)
    • Compatibility with up to 10 SIP accounts
    • 30 E1 channels and 30 VoIP channels with capacity for up to 30 simultaneous calls
    • G.711 (A-law y u-law), G.729
    • Compatibility with FAX in pass-trhough mode and T.38
    • Compatibility and monitoring through SNMP
    • Customizable CDR
    • 3x Gigabit 10/100/1000 Base-T


    Optional elements

    • Expansion of RAM to 4 or 8 GB
    • 2 modules for connection of up to 2 SSD of HD SATA 2.5'', with options of different capacities that can reach 1TB per module



    • ProcessorIntel Celeron J1800 Dual Core 2.41 GHz 64 bits
    • RAM memory2GB
    • Ethernet Ports3 Ethernet Giga ports for dedicated link with operators
    • USB2 x USB + 1 VGA
    • PRI ports1 x E1/T1
    • Simultaneous callUp to 30 simultaneous calls
    • Hard disk1 SSD 2.5 pulg. 16GB
    • Supported codecsG.711 (A-law y u-law), G.729
