Avanzada 7 code: 0030281090004
Manufacturer SKU:
- Producto descatalogado

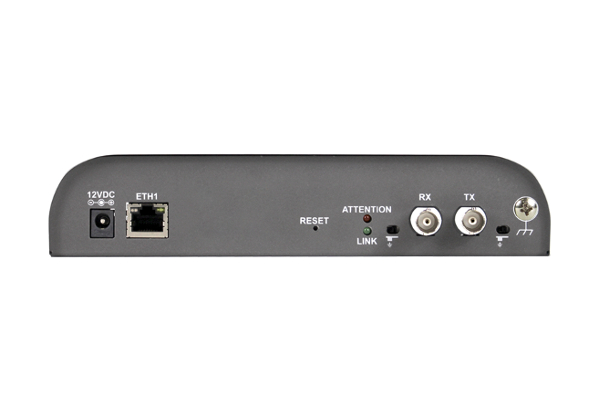

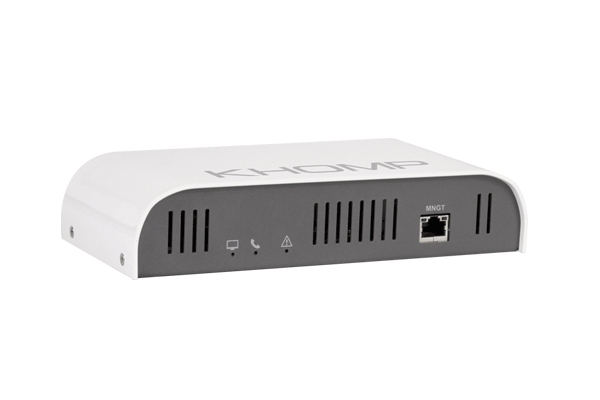

Khomp UMG 50 (BNC)
-
Gateway UMG 50 (BNC Connector)
The UMG 50 is an ideal gateway for small businesses interested in obtaining the benefits of VoIP telephony because, thanks to its VoIP technology, it reduces the costs of calls.
Among the possibilities offered by this model: Khomp UMG50, we find its use as an interconnection of the extensions between the matrix and their subsidiares of the company in any part of the world; it allows that units can make calls each other without costs.
Key features
- 5 E1 channels - Expansion every 5 channels acquired by additional license.
- Maximum 30 channels (1 link E1)
- Up to 10 registrations in different VoIP carriers
- BNC connector | Available another version with RJ connector
- R2, ISDN and SIP signaling support
- 1 x Ethernet Gigabit port 10/100/1000Mbps
- Friendly web interface for configuration, monitoring and diagnosis
- Compatible with G.711, G.729 and T.38 (fax)
- Compatible with SNMP
- BNC connector
- This model allows to free channels according to the number of licenses acquired together with the device. Each license allows 5 simultaneous calls that can be: E1-SIP or SIP-E1.
-
- FXS ports0
- FXO ports0
- PRI ports10 E1/T1 (Expandable for every 5 channels through additional license)
- GSM ports0
- Ethernet Ports2
- Supported codecsCompatible with G.711, G.729A, T.38 (Fax)
- Additional featuresUp to 10 registrations in different VoIP carriers
- Simultaneous callUp to 30 simultaneous calls
- GigabitGigabit red: network port 10/100/1000 Base-T
- Power supplyInput: 100-240 V 560/60 Hz | Output: 12V / 2.5A
- Additional featuresProtocols: SIP, SNMP, DNS, ICMP, IP, RTP, TCP, UDP, FTP, HTTP
- SpecsBNC connector | Available another version with RJ connector
- ConnectorsE1: BNC | Gigabit network: network port 100/1000 Base-T | 12VDC Polarized Power Supply Connector
-
- DatasheetUMG-50-ES-V8 - Avanzada 7.pdf
