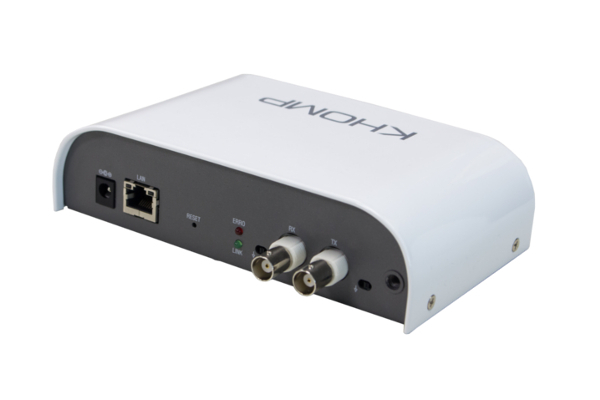

Khomp UMG 100 (BNC)
-
Gateway UMG 100 (Conector BNC)
The UMG 100 is another of the gateways belonging to the "User Media Gateway" series of Khomp for small scenarios with high performance guarantee. In particular, this model supports 1 E1 link, up to 30 VoIP channels, registration in up to 10 different SIP accounts and is configured to connect to the Public Telephony Network (STFC), VoIP links, soft-switches and PABX equipment.
This model incorporates failover of routes, this avoids the inoperability of the calls in case of failure in a SIP server by means of resource Keep Alive, in this way when Keep Alive is active, the UMG sends messages of type OPTIONS for the SIP server for monitor your status.
Specifically, this UMG model is a compact system in which three basic parts can be defined:
- A CPU board
- A telephony module, responsible for accessing the E1 interface and for executing critical tasks in real time
- 1 x 10/100/1000 external Gbps network port, responsible for system integration and managing IP traffic including VoIP
Key features
- 1 link with 30 channels
- 30 VoIP calls
- Transcoding on all 30 channels simultaneously
- 1 Giga Ethernet port
- Customizable SNMP and CDR support
- Simple design and ease of installation
- Ideal for routing calls between subsidiary and matrix through the IP network
- BNC connector | Available version with RJ connection
- Friendly web interface for configuration, monitoring and diagnosis
- Compatible with R2, ISDN and SIP signaling
- Compatible with G.711, G.729 and T.38 (fax)
- External 10/100/1000 Mbps network port
Integration with IP PBX
Integración con PBX Tradicional
-
- FXO ports0
- FXS ports0
- PRI ports1 x E1/T1 with up to 30 channels
- GSM ports0
- Ethernet Ports1
- Supported codecsCompatible with G.711 (A-law and ?-law), G.729A and T.38 (fax)
- SIP extensionsCompatible with up to 10 SIP accounts
- Simultaneous callUp to 30 simultaneous calls
- Gigabit1 external network port 10/100/1000 Base-T
- Power supplyInput: 100-240 V 560/60 Hz | Output: 12V / 2.5A
- Additional featuresProtocols: SIP, SNMP, DNS, ICMP, IP, RTP, TCP, UDP, FTP, HTTP
- SpecsBNC connector | Available another version with RJ connector
- ConnectorsE1: BNC | Gigabit network: network port 100/1000 Base-T | 12VDC Polarized Power Supply Connector
-
- DatasheetUMG-100-ES-Avanzada 7.pdf
