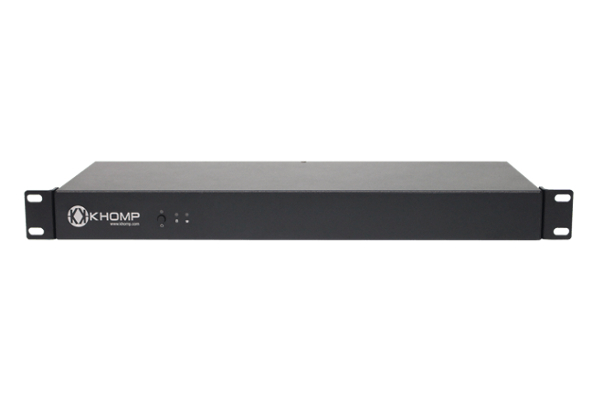

Khomp KMG 200 MS - 2E1 (RJ)

  • Khomp KMG 200MS Gateway with 2 E1 / T1 link and option to expand with modules already available in Avanzada 7
  • Khomp KMG 200MS Gateway with 2 E1 / T1 link and option to expand with modules already available in Avanzada 7

Avanzada 7 code: 0030281090008

Manufacturer SKU: KMG 200 MS - 2E1 (RJ)

Producto descatalogado

  • Gateway Khomp 200 MS - 1 E1 (Conector RJ)

    The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 2 internal E1 link and RJ connector.

    It also presents the possibility of adding 2 external telephony modules. These modules can include E1/T1, GSM, FXO, and / or FXS, as long as the maximum of 60 STFC telephony channels are respected and two of their network ports are used. (See more details on product technical sheet).

    In addition, this series KMG 200MS offers the ideal solution for companies and institutions with communication needs through IP telephone exchanges since SIP connection sections can be made through this series.

    Características destacadas

    • 2 E1/T1 internal
    • Integrated SBC
    • RJ connector. Also available with BNC connector
    • Up to 60 TDM channels
    • Up to 240 SIP VoIP sections
    • Link R2 and ISDN
    • Compatibility with call cassification
    • Standard 1U sizing for 19''rack
    • Advanced routing and security resources SBC
    • Classification of calls and intelligent supervision of channels in real time
    • Network protocols: ISDN and R2 (with up to 60 MFC signaling substituents). Possibility of different configuration in each link.
    • PABX protocol: EL7, Line Side, LC y QSIG (SSCT and CT)
    • IP - 30 SIP channels for E1/T1 (G.711)
    • Codecs: G.711 A-law and μ-law, native in the system, for all interfaces; G.729a annex B, GSM, DVI, T-38.; only with transcoding, T.38
    • Power supply: input 110 ~ 240V CA – 50/60Hz; maximum power consumption: 150W
    • 3 gigabit network ports (100/1000Mbps)



    Application model

    Modelo de aplicación Khomp KMG 200MS
    • FXO ports0 (expandable with modules)
    • FXS ports0 (expandable with modules)
    • PRI ports2E1/T1
    • GSM ports0 (expandable with modules)
    • Supported codecsG.711 A-law and u-law,G.729a annex B, GSM, DVI, T-38; only with transcoding
    • Gigabit3 Gigabit network ports 100/1000 Base-T
    • Power supplyInput: 100-240 V 56/60 Hz | Output: 12V / 2.5A
    • SpecsRJ connector | Available another version with BNC connector
    • Additional featuresCapacity for 2 SIM cards per channel, one active and one in stand-by mode
    • Additional featuresIntegrated SBC
