Patton Smarnode 10100

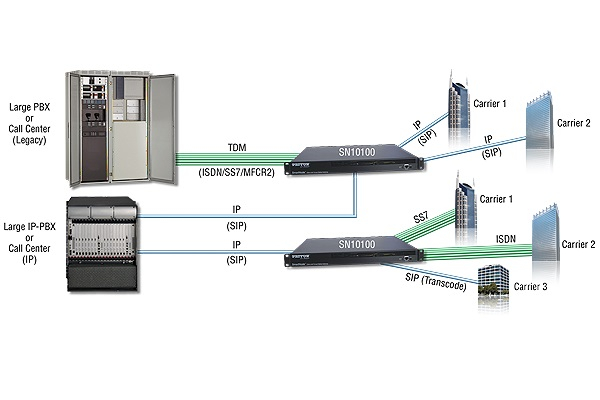

The SmartNode 10100 enables the delivery of VoIP services by bridging voice traffic between the public switched telephone network (PSTN)—based on time-division multiplexing (TDM)—and IP networks such as the Internet. Service providers are adding VoIP capabilities to their networks, whether to reduce costs when interconnecting with other carriers, to cost-effectively build out their network footprints, or simply to transport voice traffic across their IP backbones. Whether sitting at the network core or at the edge, SmartNode media gateways enable service providers to introduce VoIP into their networks while maintaining the quality and the reliability of traditional TDM networks.
TDM interfaces Service providers, whether providing local, long-distance or international voice services, are interconnected with a multitude of other providers using T1/E1/J1 links. It is critical for service providers to be able to rapidly establish new interconnections without having to always deploy new devices. SmartNode 10100 Series media gateways therefore offer flexibility and can be configured to support T1/E1/J1 interfaces.
Signaling and control protocols Just as flexibility in the selection and deployment of TDM links is a key requirement for service providers, the need to support multiple signaling protocols across various carrier partners is just as important. Each SN10100 media gateway provides support for the concurrent use of ISDN, SS7/C7, CAS (R2), SIP, and SIGTRAN signaling in the same device. The ability to provide both switching and conversion across multiple TDM and IP signaling protocols at once is paramount to enabling the operational flexibility and cost savings that drive service providers to expand their carrier relationships and converge their networks.
In parallel with the TDM and IP signaling protocols mentioned above, SN10100 devices also support the H.248 media gateway control protocol, which enables any H.248-compliant 3-party softswitch to control a media gateway. While the softswitch manages call control interactions, the SN10100 handles transmission of call media as well as any required transcoding.
Media handling Service providers will use one or more codecs on their VoIP networks according to their desire to save bandwidth, to provide a certain level of voice quality, or simply to interoperate with other VoIP devices or providers. The ability to support multiple different concurrent codecs and to allocate them in real time based on traffic is the key to delivering true network convergence.
SmartNode 10100 gateways feature extensive support for various wireline, mobile and IP telephony audio formats, delivering seamless transcoding in real-time. The media gateways ship with support for G.711, G723.1, G.726, and G.729ab right out of the box, with no additional license fee required. They also offer optional support for mobile and IP vocoders such as AMR, AMR-WB (G.722.2), GSM-FR/GSM-EFR, EVRC/QCELP, G.728, G.729eg, and iLBC. SN10100 gateways offer independent dynamic codec selection per channel. This means that it is possible to assign different vocoders to different channels, on a channel-by-channel basis. The devices can then run all of these codecs concurrently and do so with no impact on system performance.
SN10100 gateways also provide unparalleled support for Internet-based fax, also known as Fax over IP or Fax relay, using the T.38 protocol, which is used to carry fax communications over an IP network. (They also support the T.30 protocol for fax over the PSTN.)
SS7 license (Optional) The Patton SmartNode 10100 can be used with SS7 interconnection protocol, acquiring an additional license SS7:
System density SN10100 gateways feature the industry’s highest system density in a 1U form factor. Beside the capital savings achieved by purchasing less units of equipment, system density also provides operational cost savings in the form of reduced co-location fees as well as lower power and cooling costs.
Energy efficiency For many, if not most, service providers, the payoff from reducing energy use can be particularly impressive; typically, for every watt of power required to operate a device, another watt is required to cool it. The SN10100 media gateways can play a major role in reducing energy costs, with an average two-thirds less power consumption than competing products of similar capacity.
Provisioning and maintenance For network convergence efforts to contribute positively to revenue and profitability, service providers must maintain their reputation for uptime and availability during the introduction, operation, and maintenance of new services. The SN10100 offers OAM&P, an operations, administration, maintenance, provisioning (OAM&P) solution. OAM&P enables the service provider to perform the initial set-up of the SN10100 media gateway and any subsequent maintenance operations. These range from the simple, such as the collection of statistics and alarms, to the more complex, such as system configuration changes, the addition of new hardware or software components, and the application of software patches or software upgrades.
Gateway Khomp UMG 104 (RJ)
The Khomp UMG 104 gateway is an ideal device for small and medium businesses looking for a competitive investment team and high reliability.
The UMG 104 can be connected to 3 VoIP operators assigning each link to a particular region in this way reduce the costs with national and internacional calls at much lower values than the conventional rates. In addition, it can be applied to VoIP operators that work with the sale of minutes to professionalize services among many other options.
The UMG 104 has 30 E1 channels and 30 VoIP channels, with the capacity to operform up to 30 simultaneous calls. This UMG model has 4 Ethernet ports, an easy-to-use web interface, failover of routes and greater control of expenses thanks to the possibility of configuring the routing by prefixes and / or by the loyalty of operators.
UMG 104 is a compact system that can be divided into 3 basic parts:
Key features

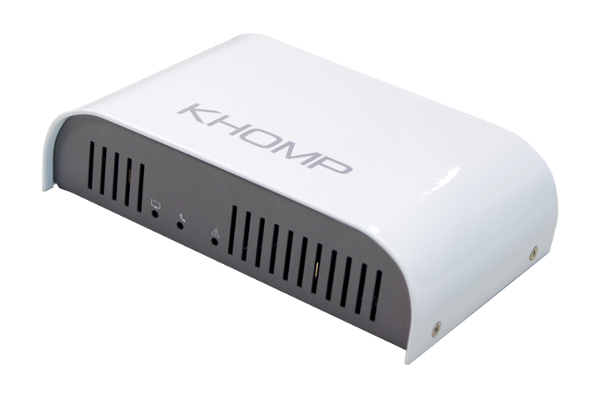

Gateway UMG 100 (Conector BNC)
The UMG 100 is another of the gateways belonging to the "User Media Gateway" series of Khomp for small scenarios with high performance guarantee. In particular, this model supports 1 E1 link, up to 30 VoIP channels, registration in up to 10 different SIP accounts and is configured to connect to the Public Telephony Network (STFC), VoIP links, soft-switches and PABX equipment.
This model incorporates failover of routes, this avoids the inoperability of the calls in case of failure in a SIP server by means of resource Keep Alive, in this way when Keep Alive is active, the UMG sends messages of type OPTIONS for the SIP server for monitor your status.
Specifically, this UMG model is a compact system in which three basic parts can be defined:
Integration with IP PBX
Integración con PBX Tradicional
This UMG model is a compact system in which three basic parts can be defined:
Gateway Khomp UMG 104 (BNC)
Mediatrix G7 - 4PRI
The Mediatrix G7 is a reliable and secure VoIP analog adapter and a Gateway for SMBs.
Specifically, this Mediatrix G7 of 4 PRI offers the best solution for connecting equipment for cloud telephony services and IP PBX systems to PSTN terrestrial lines.
Widely interoperable with SIP softswitch and IMS providers, the Mediatrix G7 series offers seamless integration of legacy PBX systems for SIP trunking and PSTN applications. Among its most outstanding features we point out:
The Mediatrix C7 Series offers a series of gateways that combine FXS and FXO interfaces to integrate multiple applications into a single platform. These VoIP Gateways offer excellent value for money and are ideal for connecting small and medium-sized networks to an IP network.
Models C710, C711, C730, C731 and C733 are currently available. Depending on the model it can present from 4 to 8 telephone ports and connect up to 8 analog phones, modems, fax or up to 8 RTC lines or trunks from a PBX to the IP network.
One of Mediatrix's flagship products is the Sentinel, an integrative product that has the capability of a customizable Session Border Controller (SBC) and Gateway. It is ideal for medium and large enterprises that need VoIP deployments with flexible architecture, including fault tolerance, SIP normalization and demarcation point.
The Base Station of our Sentinel initially presents:
Thanks to these 8 slots we will be able to customize our Sentinel as we want, combining the cards and licenses that best suit our needs.
MODULES
SBC Licenses

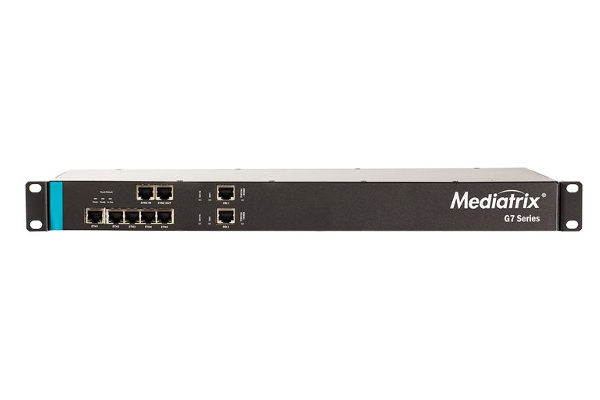

Mediatrix G7 - 2PRI
Specifically, this Mediatrix G7 of 2 PRI offers the best solution for connecting equipment for cloud telephony services and IP PBX systems to PSTN terrestrial lines.

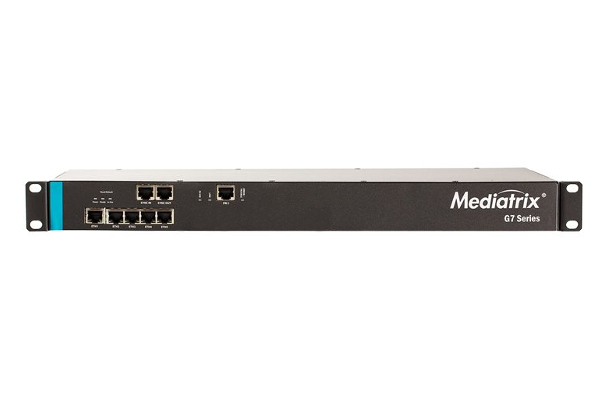

Mediatrix G7 - 1PRI
Specifically, this Mediatrix G7 of 1 PRI offers the best solution for connecting equipment for cloud telephony services and IP PBX systems to PSTN terrestrial lines.

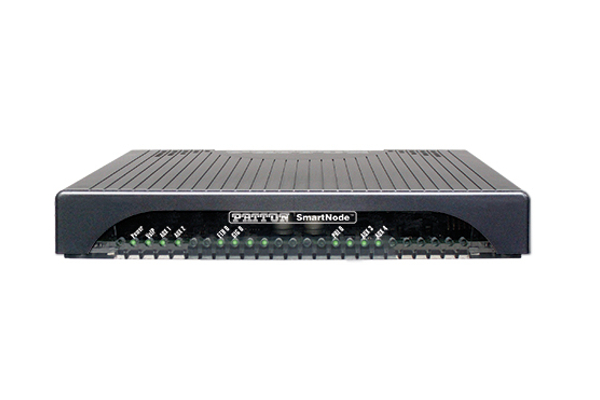

Gateway Patton SN4170 - 1 PRI (T1/E1) - High Precision Clock
The SmartNode 4170 Patton is the next generation model ISDN T1/E1 in this VoIP line of Patton. A network device used for converting voice calls, in real time, between your PBX and VoIP network.
This model, in fact, is ideal for small and medium businesses looking for cost-effective ways to dispose of such lines. Specifically, this model has a T1/E1, Gigabit Ethernet port and provides up to 30 simultaneous calls.
Features
This model, in fact, is ideal for small and medium businesses looking for cost-effective ways to dispose of such lines. Specifically, this model has a T1/E1, Gigabit Ethernet port and provides up to 15 simultaneous calls.
Gateway Khomp UMG Server 104
UMG Server 104 is a device designed for integrators who want to develop a centralized solution based on E1/T1 and SIP calls for their final client. This device is "all in one": server + gateway, to load your software application for PABX, call center and dialer, among others, with a motherboard for the installation of any platform based on Windows, Linux or FreeBSD.
The UMG Server 104 can be composed with various storage options, allied to the telephony E1/T1 interface, a RAM module of up to 8GB and two p orts of SATA type for connection with SSD or 2.5'' HD with storage for up to 1TB each one.
Gateway features
Optional elements
