Khomp KMG 3200 MS

  • Gateway Khomp 3200 MS with 13 ports of Ethernet network 100 / 1000Mbps already available in the online store of Avanzada 7
  • Gateway Khomp 3200 MS with 2010 sections of VoIP in bridge mode already available in the online store of Avanzada 7
  • Gateway Khomp 3200 MS with up to 450 VoIP in SBC already available in the online store of Avanzada 7
  • Gateway Khomp 3200 MS with 13 ports of Ethernet network 100 / 1000Mbps already available in the online store of Avanzada 7
  • Gateway Khomp 3200 MS with 2010 sections of VoIP in bridge mode already available in the online store of Avanzada 7
  • Gateway Khomp 3200 MS with up to 450 VoIP in SBC already available in the online store of Avanzada 7

Avanzada 7 code: 0030321090003

Manufacturer SKU: KMG 3200 MS

Producto descatalogado

  • Khomp Gateway KMG 3200 MS

    Khomp KMG 3200 gateway is part of Khomp's medium gateway, a high density device capable of supporting up to 32 E1 / T1 links or 960 telephony channels, which ca use E1 / T1, GSM, GXO and / or FXS. In addition to the STFC channels, it also supports 450 sIP VoIP and is ideal for reliable network structures that need the highest voice quality.

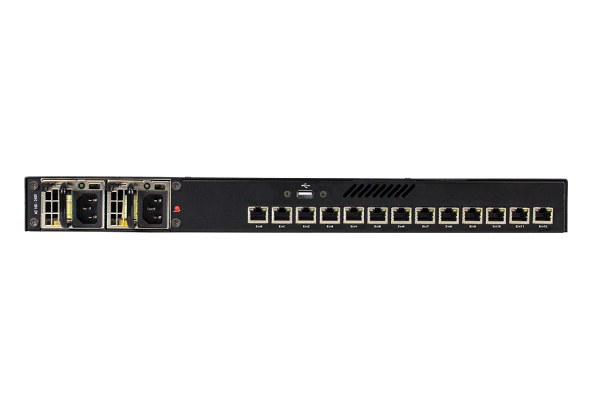

    It has 13 network ports, one of them specific for high availability, with the ability to transfer the processing of calls from the gateway to a chassis in standby mode, in the event of a hardware failure. In this way, network configurations, including IP addresses, are maintained.

    Key features

    • IP - 2 SIP channels for each SBC VoIP call through the KMG 30 VoIP license
    • Up to 2010 SBC VoIP sections in bridge mode
    • Up to 450 SBC VoIP calls available for any combination - up to 215 KMG 30 VoIP licenses sold separately
    • Digital TDM - from 4 to 32 E1/T1 (ISDN, R2 and ISUP, in modules of E1/T1)
    • IP - 30 SIP channels for each E1/T1 link (G.711)
    • SS7 and SIGTRAN (optional license)
    • G.711 A-law and u-law, native in the system, for all interfaces
    • G.729a, GSM, DVI, T-38; only with transcoding
    • 16x2 LCD screen
    • Standard 1-U center module for 19-inch rack telephony modules use 1U for every two modules
    • QoS: DiffServ - RFC 4594 | VLAN Tagging
    • 13 gigabit network interfaces (100/1000 Mbps), one of them dedicated to high availability
    • Power supply: Input: 110-220V CA - 50-60Hz | Maximum power consumption: 120W




    • FXO portsOptional
    • FXS portsOptional
    • PRI portsIt can supports up to 32 x 1E1/T1
    • GSM portsOptional
    • Ethernet Ports13 gigabit network ports, one of them specific for high availability
    • Supported codecsG.711 A-law and u-law,G.729a annex B, GSM, DVI, T-38; only with transcoding
    • Additional featuresIntegrated SBC
    • Additional featuresDigital TDM - from 4 to 32 E1 / T1 (IDSN, R2 and ISUP, in modules of 4 E1 / T1)
    • Gigabit13 Gigabit network ports 100/1000 Base-T
    • Power supplyInput: 100-240 V 56/60 Hz | Output: 12V / 2.5A
