Elastix EGW-208 - Gateway GSM 8 channels

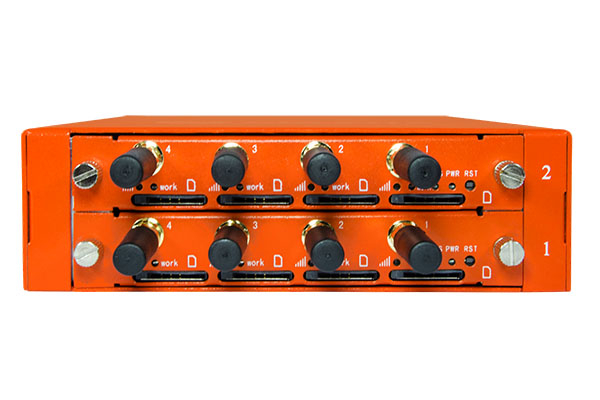

  • Imagen 1: Elastix EGW-208 - Gateway GSM 8 channels

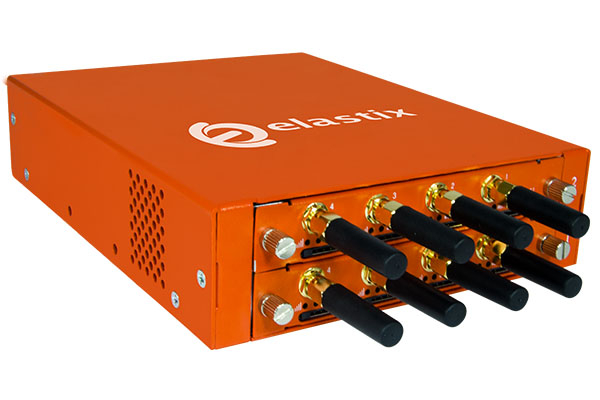

  • Imagen 2: Elastix EGW-208 - Gateway GSM 8 channels

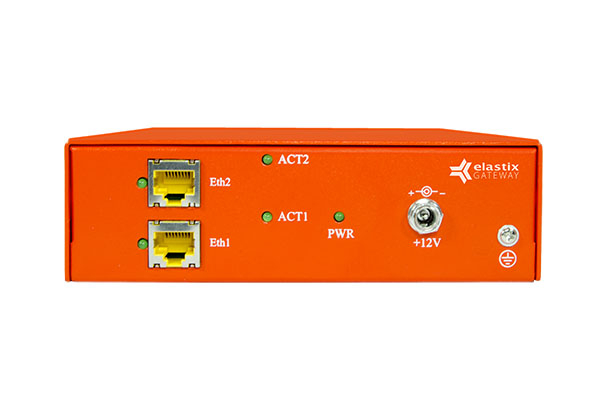

  • Imagen 3: Elastix EGW-208 - Gateway GSM 8 channels
  • Imagen 1: Elastix EGW-208 - Gateway GSM 8 channels
  • Imagen 2: Elastix EGW-208 - Gateway GSM 8 channels
  • Imagen 3: Elastix EGW-208 - Gateway GSM 8 channels

Avanzada 7 code: 0030290800002

Manufacturer SKU:

Producto descatalogado

  • The EGW208 Elastix GSM Gateway allows you to extend your Elastix server with GSM trunks, which will allow you at a low cost to reach those places where cellular signal is the only means available. Thanks to its friendly user interface and modular design, you shall be able to easily configure your EGW208 GSM Gateway, as well as to complement a development solution via AMI.

    Its modular design will allow the expansion according to need; the EGW208 GSM Gateway provides two 4-GSM channel modules. It will enable to interconnect with a broad range of codecs, including G.711A , G.711u, G.729, G.722, G.723, G.726 and GSM, to the GSM cellular networks, which will help you significantly reduce costs and optimize communications in your business.

    You will never have to stop communications at your business thanks to the hot-swap capability of the EGW208; remove or change SIM cards, or if you prefer, the whole module, without altering the course of your communications.

    Insert a SIM card in the gateway, create a trunk, and enable telephony within minutes!



    Main Features

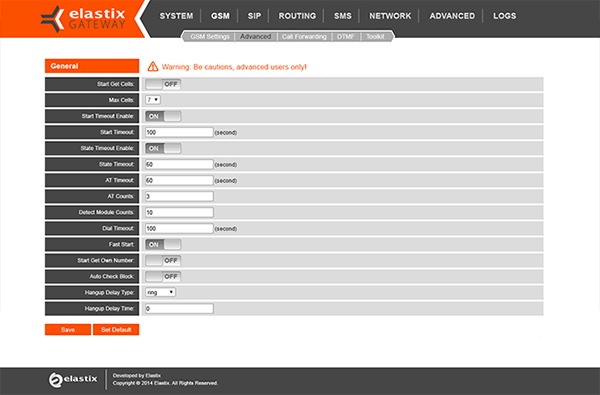

    • Easy and simple configuration GUI via Web
    • Multiple Languages
    • Supported Codecs: G.711A, G.711U, G.729, G.723.1, G.722, G.726, GSM
    • Quad-Band GSM 850/ 900/1800/1900 MHz & Band binding
    • Compliance to SIP(RFC3261)
    • Supports SIP, IAX2 protocols
    • DTMF Signaling support RFC2833, Inband, SIP Info
    • Open API interface (AMI)
    • Echo Cancellation: ITU-T G.168 LEC
    • Supports static IP and DHCP
    • Supports OpenVPN and PPTP
    • Call Duration Limit
    • CLIR (Call Line Identification Restriction)
    • Call Waiting
    • Call Forwarding
    • SMS bulk transceiver, SMS automatically resent
    • Supports HTTP SMS Interface
    • SMS sent to e-mail
    • USSD transceiver
    • Remote Control gateway with SMS
    • IMEI Automatic update
    • PIN identification
    • Mobile number portability (MNP)
    • Flexible routing settings & unlimited routing rules
    • Diverse extensible applications, such as IVR, DISA
    • Supports configuration file backup and upload
    • Support for custom scripts, dialplans
    • Least Cost Routing (LCR),according to Time, Port,Calling Number
    • Independent system for each module
    • Hot-swap Design for both SIM cards and modules



    Potential Applications

    • GSM connectivity for IPPBX
    • Mobile PBX
    • GSM VoIP gateway
    • GSM callback services
    • SMS Services



    Technical Specifications

    GSM

    8 GSM channels (4 per module)
    Quad-Band GSM 850/ 900/1800/1900 MHz & Band binding
    Independent External Antennas
    Echo Cancellation: ITU-T G.168 LEC

    SIP

    SIP (RFC3261) compliance
    Supports SIP, IAX2 protocols
    Supported Codecs: G.711A, G.711U, G.729, G.723.1, G.722, G.726,GSM

    Network

    Two 10/100 Mbps Ethernet interfaces
    Protocols: DHCP, TCP/UDP, Telnet, HTTP, TFTP


    • VoIP protocolsSIP, IAX2
    • Hardware Echo cancelationITU-T G.168 LEC
    • SpecsQuad-Band GSM 850/ 900/1800/1900 MHz & Banda vinculante
    • EquipmentIndependent external antennas
    • Datos TécnicosProtocols: DHCP, TCP/UDP, Telnet, HTTP, TFTP
    • Application controlGSM conectivity for IPPBX- PBX Móvil- GSM VoIP gateway- callback GSM service- SMS Service-
    • Ethernet ports2 Ethernet Inbterfaces 10/100 Mbps
    • GSM ports4
    • Audio CodecG.711A, G.711U, G.729, G.723.1, G.722, G.726,GSM
    • Power over Ethernet (PoE)NO
